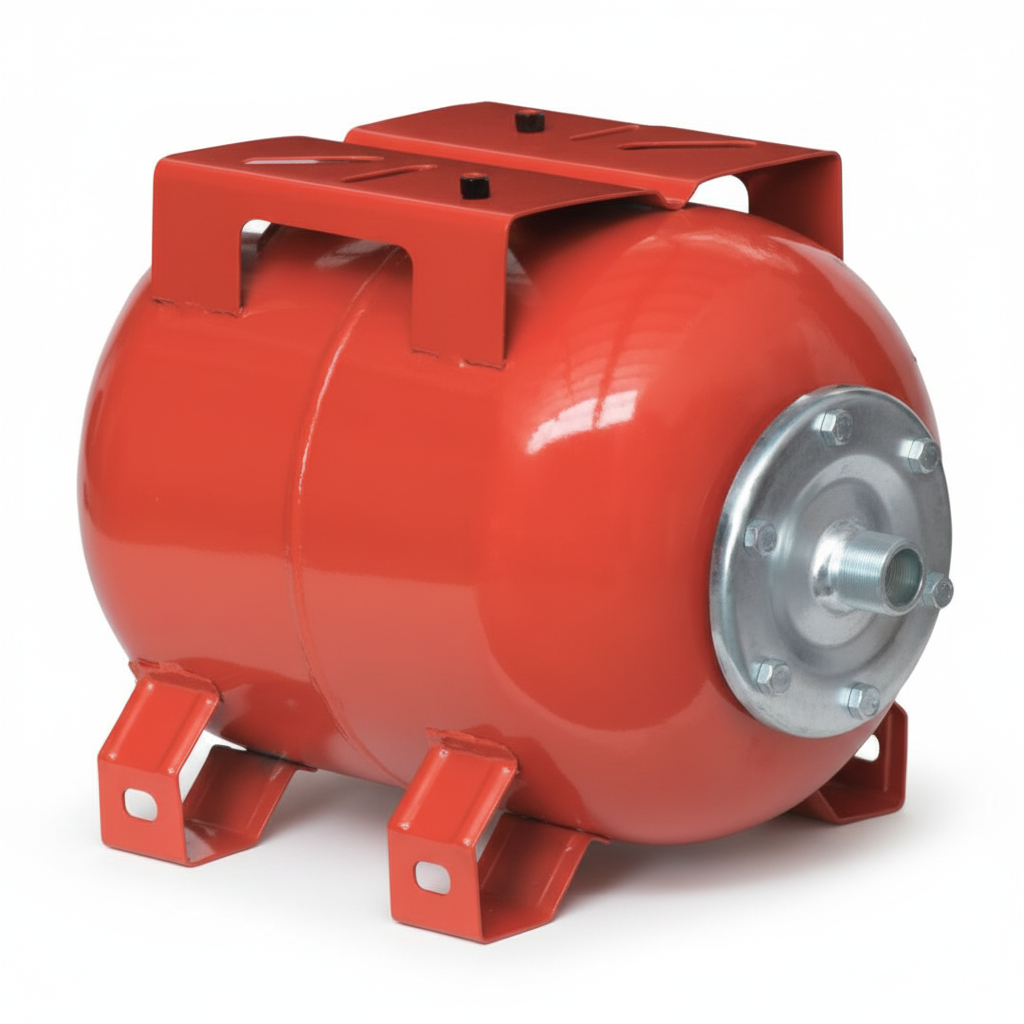

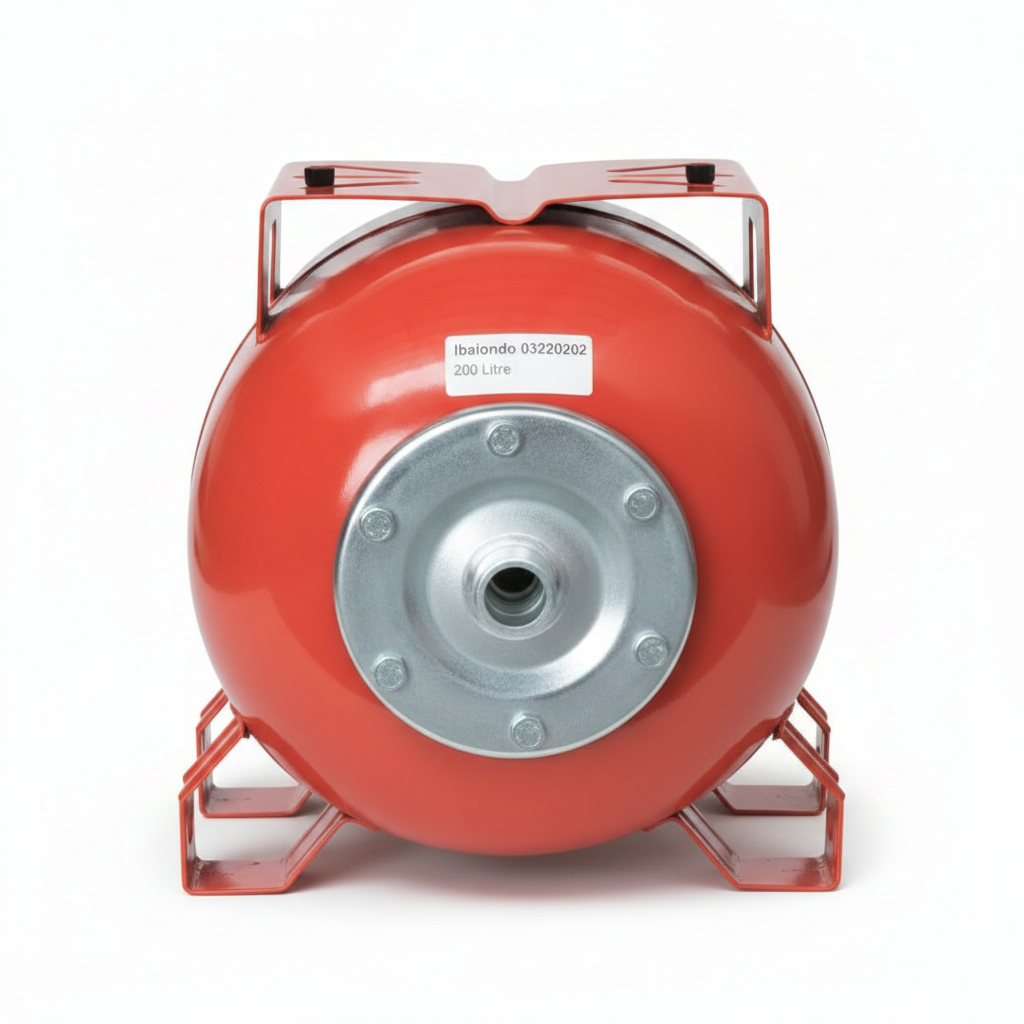

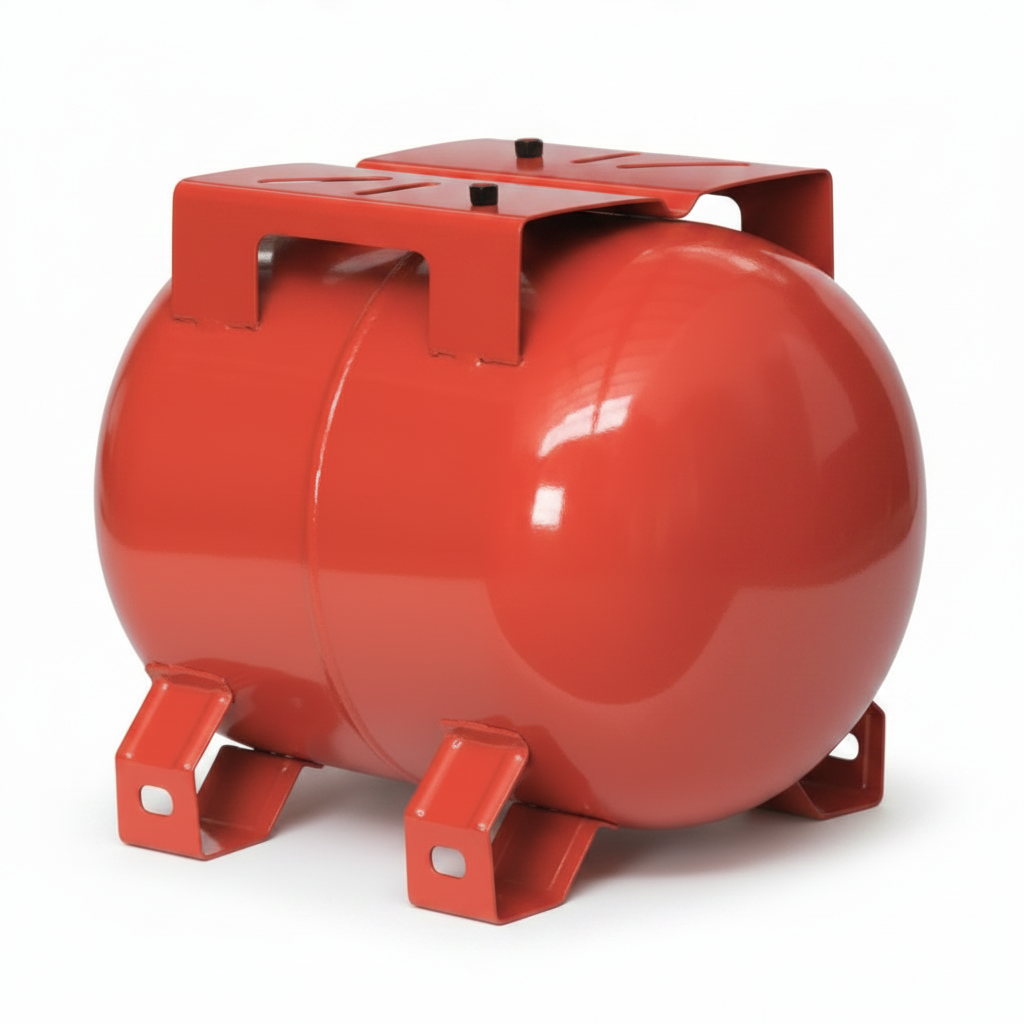

Ibaiondo 03220202 – 200 Litre Horizontal Potable Expansion Vessel with Pump Base

Part No: 03220202 | View Product Details

The Ibaiondo 03220202 is a 200-litre horizontal potable expansion vessel with pump base, designed for use in potable water applications including booster sets, borehole pumps, expanded water from hot water cylinders, and calorifiers. The vessel can be configured with a pump unit and pressure switch to reduce the number of pump starts and stops per hour.

Technical Specifications

• Part No: 03220202

• Capacity: 200 litres

• Orientation: Horizontal with pump base

• Maximum Working Pressure: 10 bar

• Pre-charge Pressure: 1.5 bar *

• Temperature Range: -10°C to +100°C

• Dimensions: D 485mm × 1320mm length

• Water Connection: 1½"

• Weight: 49 kg

• Approvals: CE endorsed, TUV

Construction

• High-resistant rubber bladder

• Epoxy powder coating (red colour)

• Membrane to DIN 4807, suitable for sanitary water

• Fixed membrane (non-replaceable)

Applications

• Potable water systems

• Booster sets and borehole pumps

• Expanded water from hot water cylinders and calorifiers

* Pre-charge pressure may require adjustment to suit installation. Adjustment must be made with the vessel isolated from the system and prior to filling with water.
