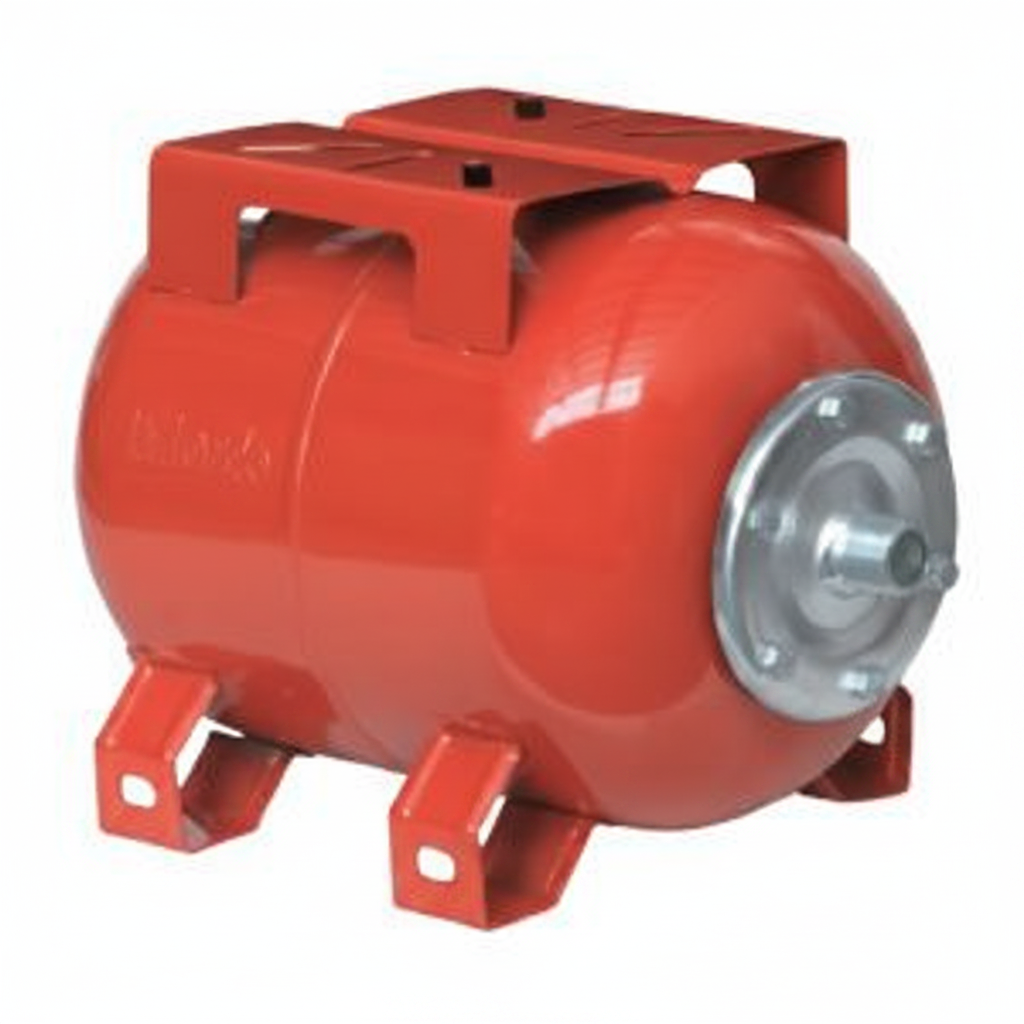

The Ibaiondo 03150210 is a 150-litre horizontal potable expansion vessel with pump base, designed for booster sets, borehole pumps, and hot water cylinder applications. CE and TÜV approved, with red epoxy powder coating and a fixed DIN 4807 membrane suitable for sanitary water. Download PDF spec sheet.
Part No: 03150210
Capacity: 150 litres (horizontal)
Maximum working pressure: 10 bar
Pre-charge: 1.5 bar (may require adjustment on site)
Temperature range: -10°C to +100°C
Dimensions: D 485mm x L 1070mm
Water connection: 1 1/2"
Weight: 40 kg
Bladder: High-resistance rubber, fixed (non-replaceable), DIN 4807
