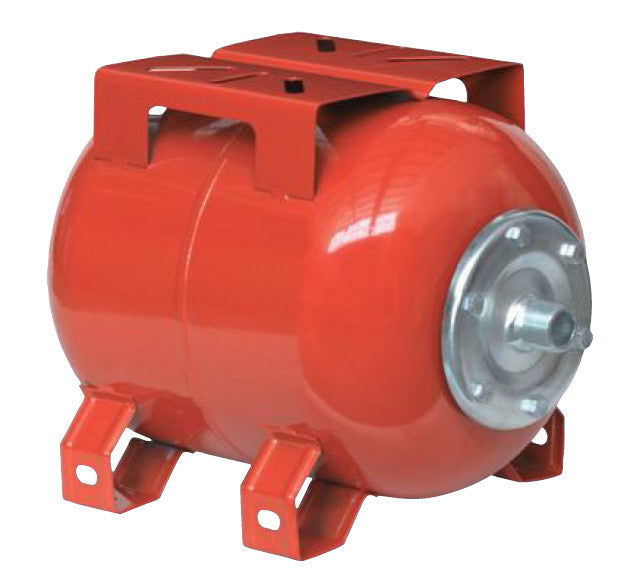

Ibaiondo 03100211 100 Ltr Horizontal Potable Expansion Vessel with pump base

Part No: 033100211

Size: 100 Ltr Horizontal

Click here to download a PDF spec sheet for full product details

• Maximum working pressure 10 bar
• Pre-charge 1.5 bar *
• Temperature range - 10 °C + 100 °C
• Dimensions D 450 mm x 740 mm Length x 480 mm Height
• Water Connection 1”
• Weight 18 Kilos
• High resistant rubber bladder

Epoxy powder coating
Membrane according to DIN 4807 suitable to contain sanitary water.
Fixed membrane (non-replaceable)

* May require adjustment to suit installation. This adjustment must be made with the vessel isolated from the system and prior to filling with water

Expansion vessel for hot sanitary water in opened circuits.

Approvals:- (Vessel) CE endorsed, TUV

This tank is used in the following installation cases:

Potable water applications, booster sets, borehole pumps etc,
expanded water from hot water cylinders and calorifiers.

The tanks can be set up with a pump unit and pressure
switch etc to reduce the number of starts and stops per hour.

An additional item which should be included when purchasing a vessel is the vessel isolation connection valve. This allows the vessel to be removed for maintenance without draining the fluid from the system.
