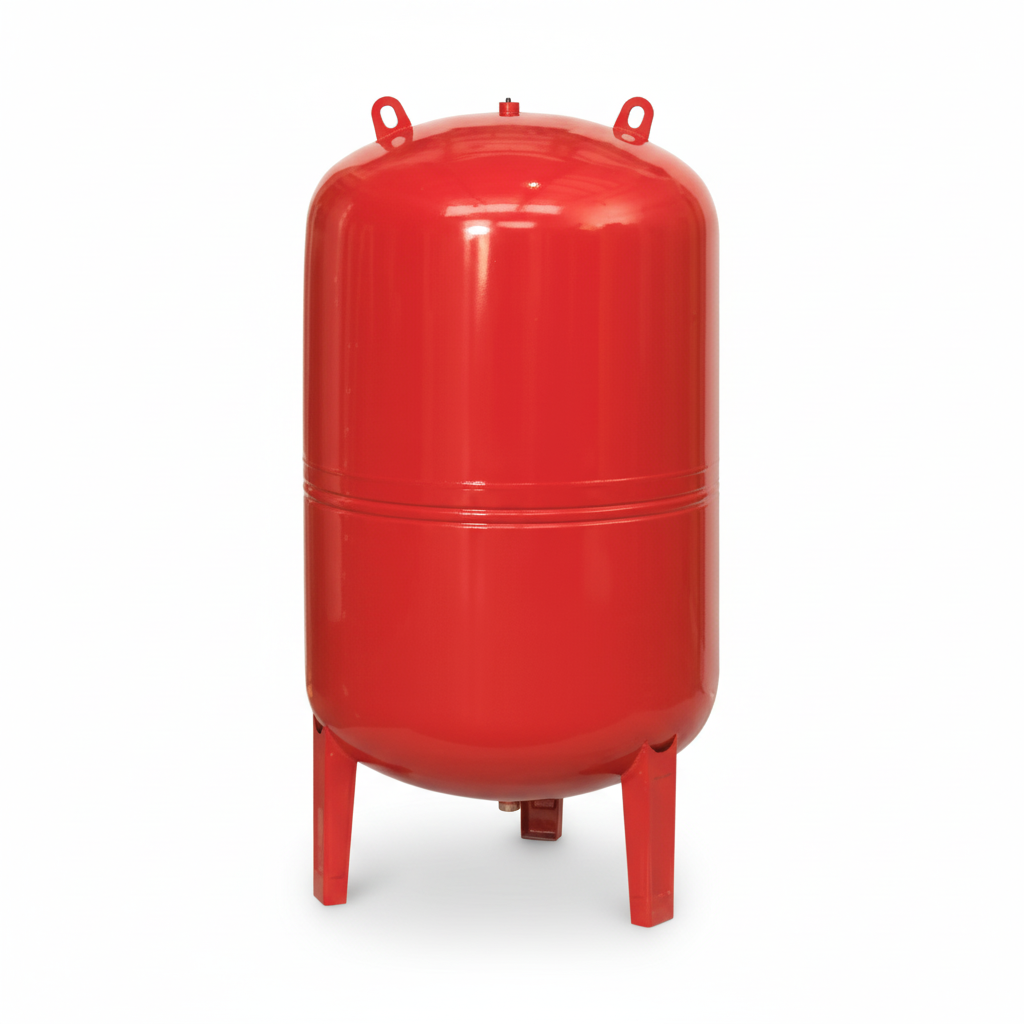

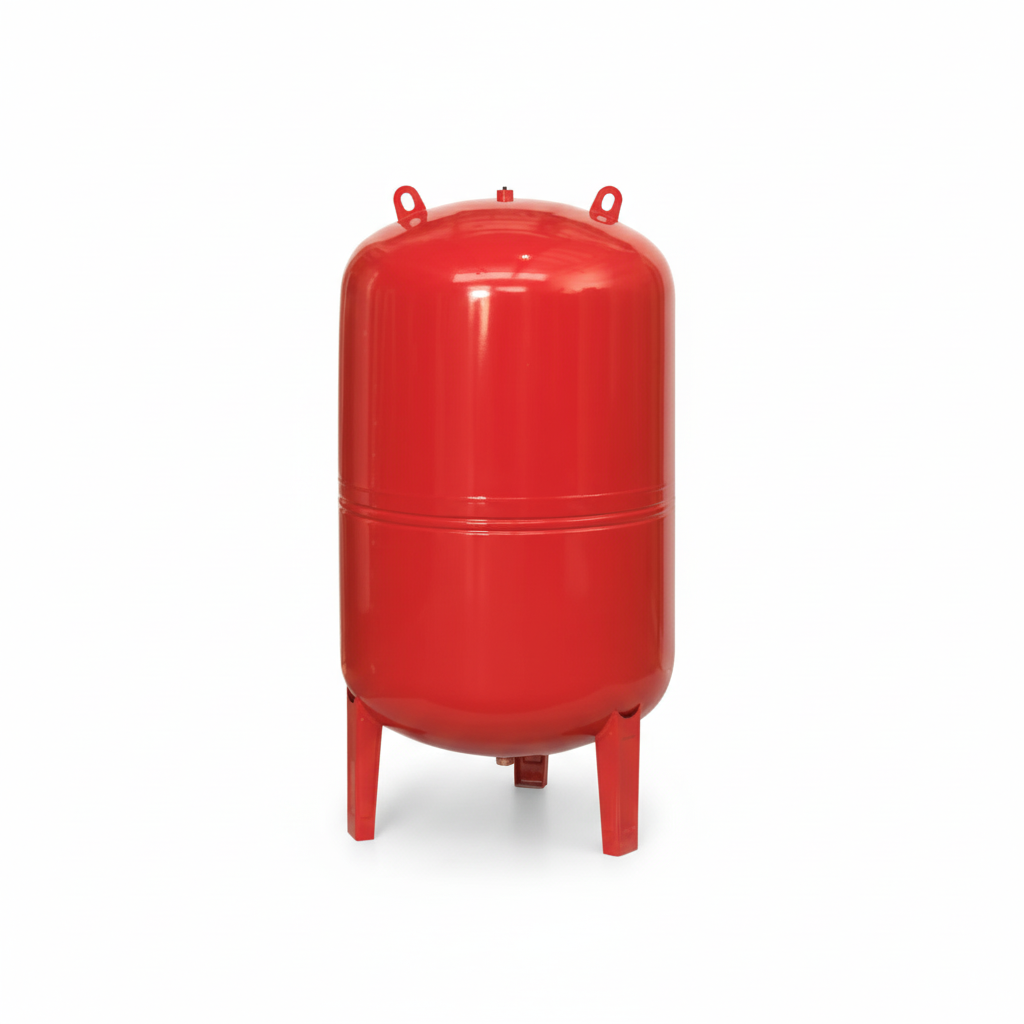

Ibaiondo 04600351 CMF 600 Ltr Heating Expansion Vessel

Part No: 04600351

Size: 600 Ltr

Vessel is foot mounted so does not require a bracket.

• Maximum working pressure 6 bar
• Pre-charge 1.5 bar
• Temperature range - 10 °C + 100 °C
• Dimensions D 750 x 1700 Height
• Water Connection 1”
• Weight 77 Kilos
• High resistant rubber bladder

Components: 600 Ltr heating vessel

Approvals:- (Vessel) CE endorsed, TUV

The central heating system most commonly used in Europe and other parts of the world is a sealed system. Ease of installation makes it particularly attractive to the installer, as a sealed system alleviates the need to fit, feed and vent tanks in the central heating system.

• System flexibility - due to component siting alternatives
• cost savings - due to considerably reduced installation time
• no feed and expansion tank - hence avoiding ‘pumping over’ problems, risk of freezing up etc.
• longer life - due to virtual elimination of corrosion problems
• noise reduction - due to higher system pressure, boiler noise (localised heating) is significantly reduced or eliminated
• low maintenance cost - as equipment is virtually maintenance free, other than for periodic operational checks
