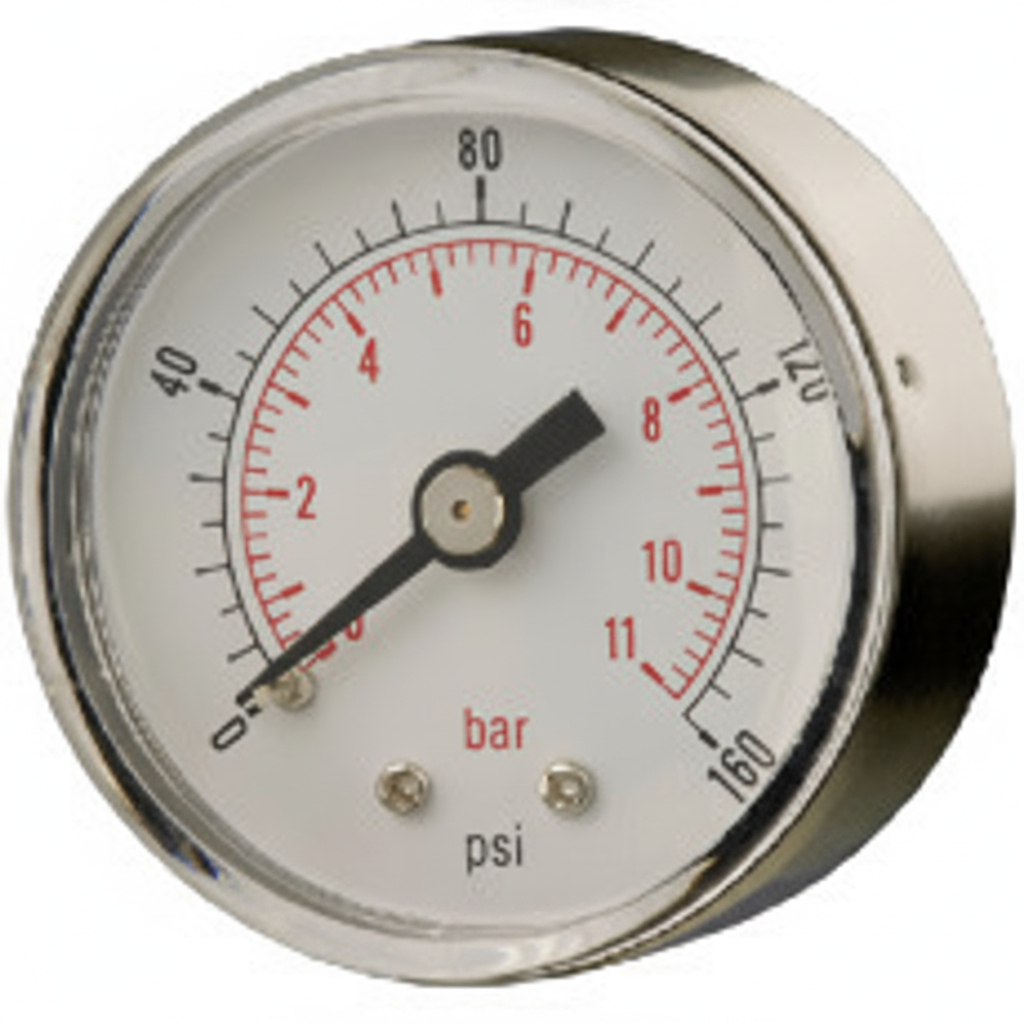

1/4" 50 mm 0-10 Bar Back Entry Pressure Gauge

Product no:

Nominal Size: 50mm

Accuracy: +/- 2.5% FSD

Scales

PSI Outer (Black) & BAR Inner (Red) - Pressure “HG Outer (Black) & BAR Inner (Red) - Vacuum

Ranges -30/0”HG Vacuum to 0/160 PSI Pressure

Mounting: Centre Back - Direct Mounting Only (standard)

Operating Temperature: Ambient: -20/+60ºC

Medium: +60ºC maximum

Temperature Effect:

Variation in indication caused by temperature

± 0.04 x (t2 – t1)% of the span

t1 is the reference ambient temperature in ºC

t2 is the ambient temperature in ºC

Ingress Protection: IP 40 as per EN 60529

Case: Enameled Steel - Black

Window: Acrylic - Crystal clear, push-fit

Pressure Element: CU Alloy - Sealed Bourdon tube C-Type

Joints: Soldered with tin alloy

Movement: High Precision Brass

Process Connection & Block

Brass -    1/4" BSPT (tapered) male (standard)

Pointer: Aluminium - Black

Dial: Aluminium - White
