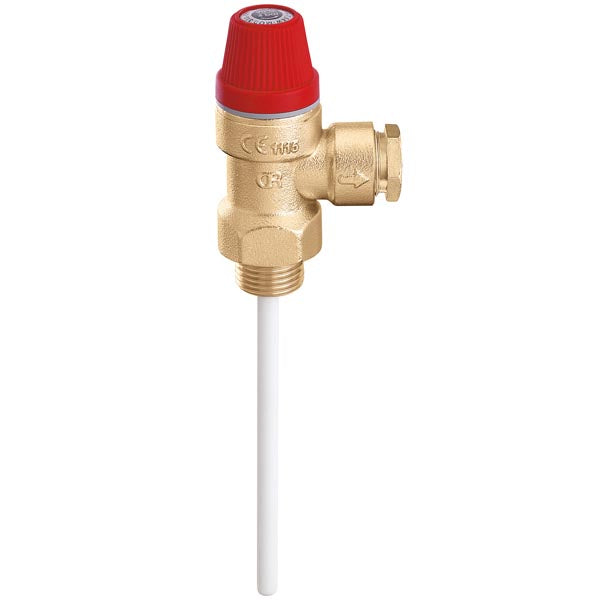

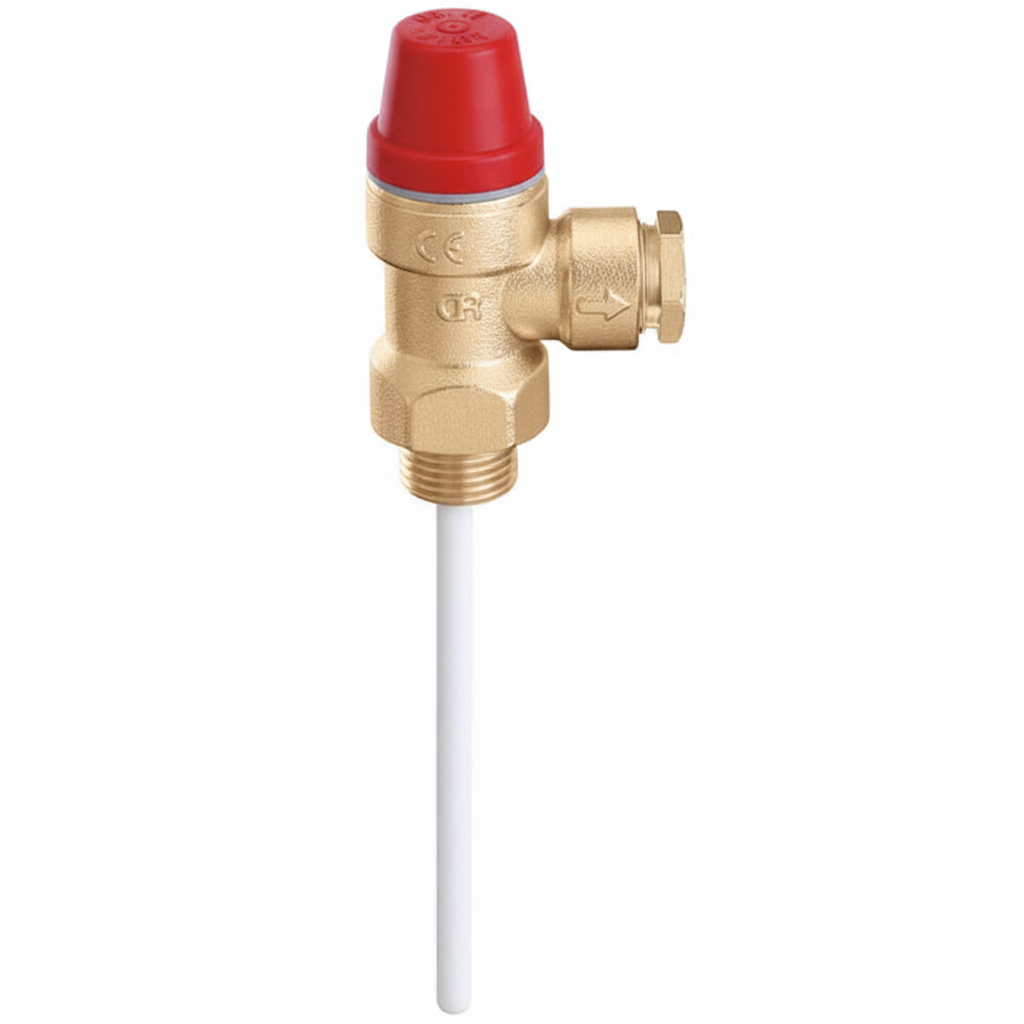

3/4" Press Temp relief valve @ 10 Bar

3/4" M BSP x 15 mm compressions connections- CA-310500

* 3/4" M BSP x 15 mm compressions connections
* Discharge pressure: 7 bar
* Stem length: 96 mm
* Factory set discharge temperature 90 °C - non adjustable
* Max working temperature 80 °C
* DRZ brass body

Application

Temperature and pressure relief valve are used to control and limit the temperature and pressure of hot water contained in a domestic storage cylinder, preventing the water from reaching 100 °C.

When the set conditions are reached, the valve discharges a sufficient amount of water to allow the temperature or pressure to return within the system’s limits.

The valves have been designed for use on unvented hot water systems.

Approvals: CE
