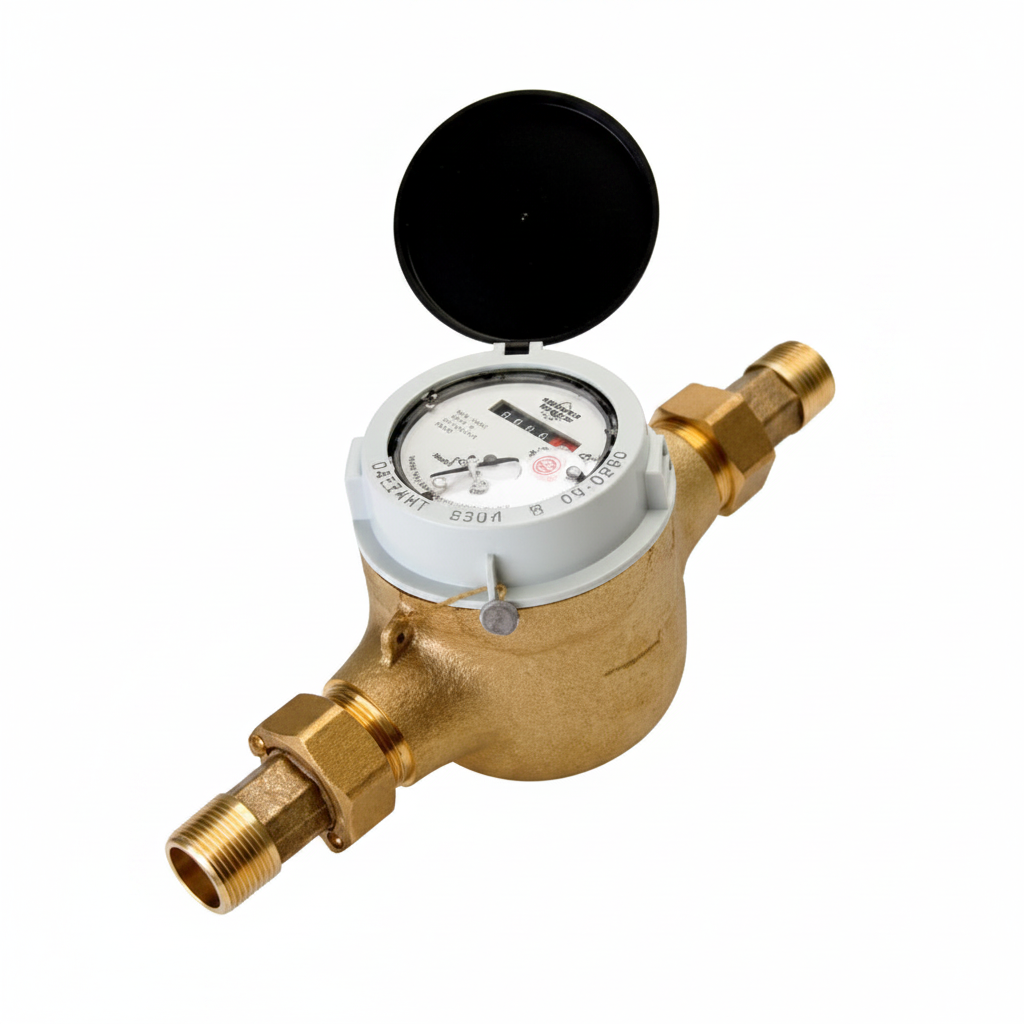

3/4" Tagus Pulsed Meter for Cold water Multijet for Metering/Billing Purposes)

Size: 3/4” M x M BSP
Dry Dial

Product no: PS-100002

Class: Class D / MID R 100

Type: Cold Water Volumetric

The Tagus range of pulsed water meters for cold water applications offers a dependable and accurate reading of water consumption and is ideally suited for use in domestic premises and small commercial building.

Suitable for use with potable and clean water.

The pulse read out system is factory fitted and allows a pulse rating of pulse/libtre or 1 pulse/10 litres to be emitted.

The emitted pulse can be ready by various types of remote output reader.

The emitter probe has a metal body housing a reed switch and protective resistor.

The probe and transmission cable are encapsulated within a rubber mould enclosure to ensure water tightness to IP68.

Body is made from brass
Meter is suitable for COLD water up to 30 oC
The meter has magnetic transmission; therefore the gearings are not in contact with water.
The roller counter mechanism is air tight, thus avoiding the possibility of moisture ingress
Suitable for horizontal or vertical installation
The roller counter is positioned for easy reading and if required can be used with pulse transmission (1 per litre)

Approvals: WRC, DTI

Note: The pulse value and cable length must be specified when ordering.

Applications:

The Tagus water meter is used to give a remote reading when used with a remote display or computerised reading system.

It can be used to collect water consumption data in multi apartment buildings, when central reading of several meters is required or where access to the water meter is restricted.

It can also be used as part of a flow control system and for the control of pumps.
