Ibaiondo 03220202 200 Ltr Horizontal Potable Expan. Vessel pump base

pause
£606.00 GBP
£606.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

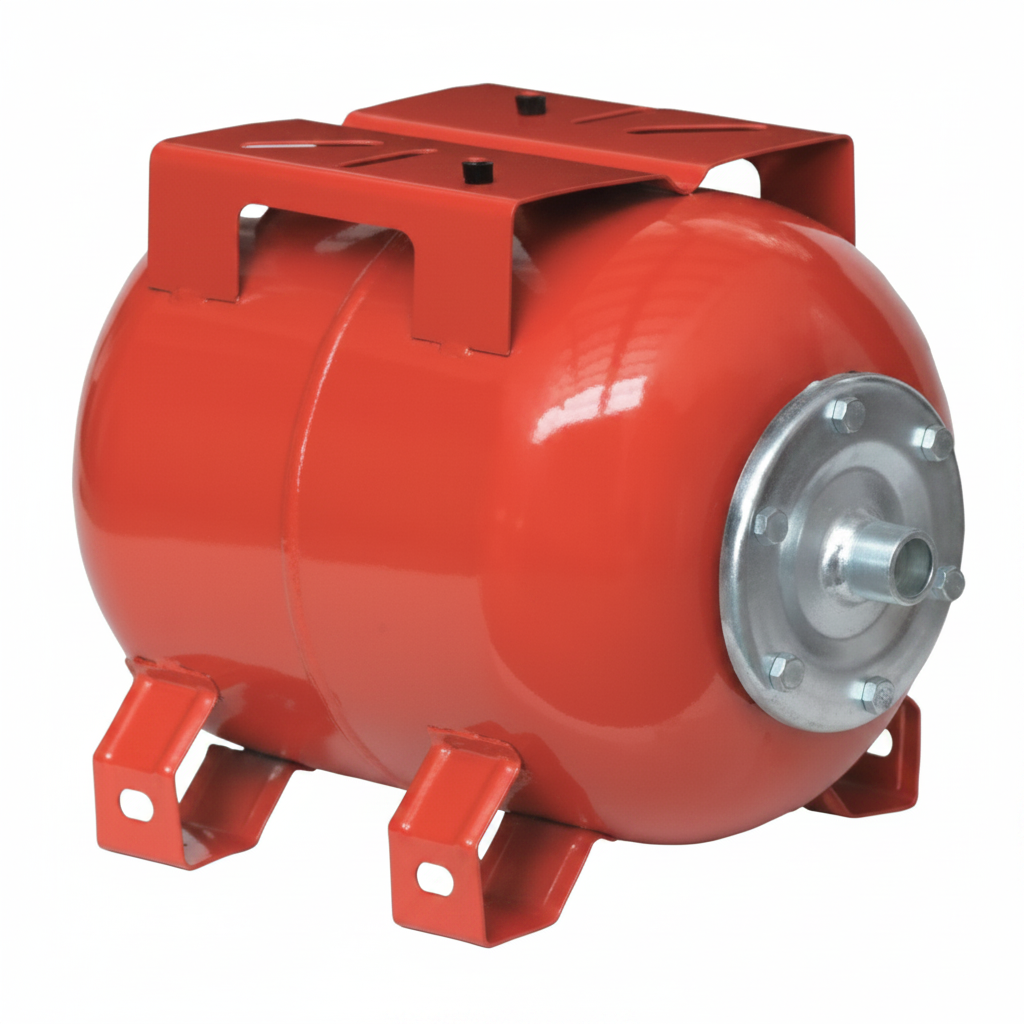

Ibaiondo 03220202 200-litre horizontal potable expansion vessel with pump base. For booster sets, borehole pumps, and hot water cylinder applications. Fixed DIN 4807 membrane, red epoxy powder coating. CE and TÜV approved.

Download spec sheet.

  • Part No: 03220202
  • Capacity: 200 litres (horizontal)
  • Max working pressure: 10 bar
  • Pre-charge: 1.5 bar (may require adjustment on site)
  • Temperature range: -10°C to +100°C
  • Dimensions: D 485mm x L 1320mm
  • Water connection: 1 1/2"
  • Weight: 49 kg
  • Bladder: High-resistance rubber, fixed (non-replaceable), DIN 4807
  • Coating: Red epoxy powder
  • Approvals: CE, TÜV
  • Note: Pre-charge adjustment must be made with vessel isolated from system, prior to filling
