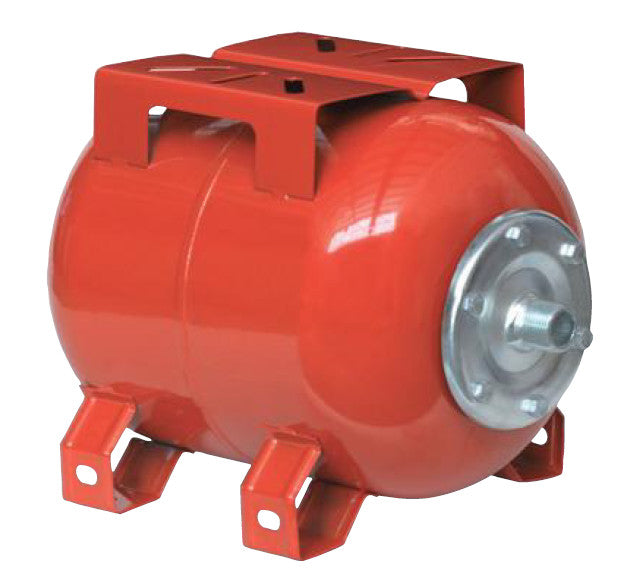

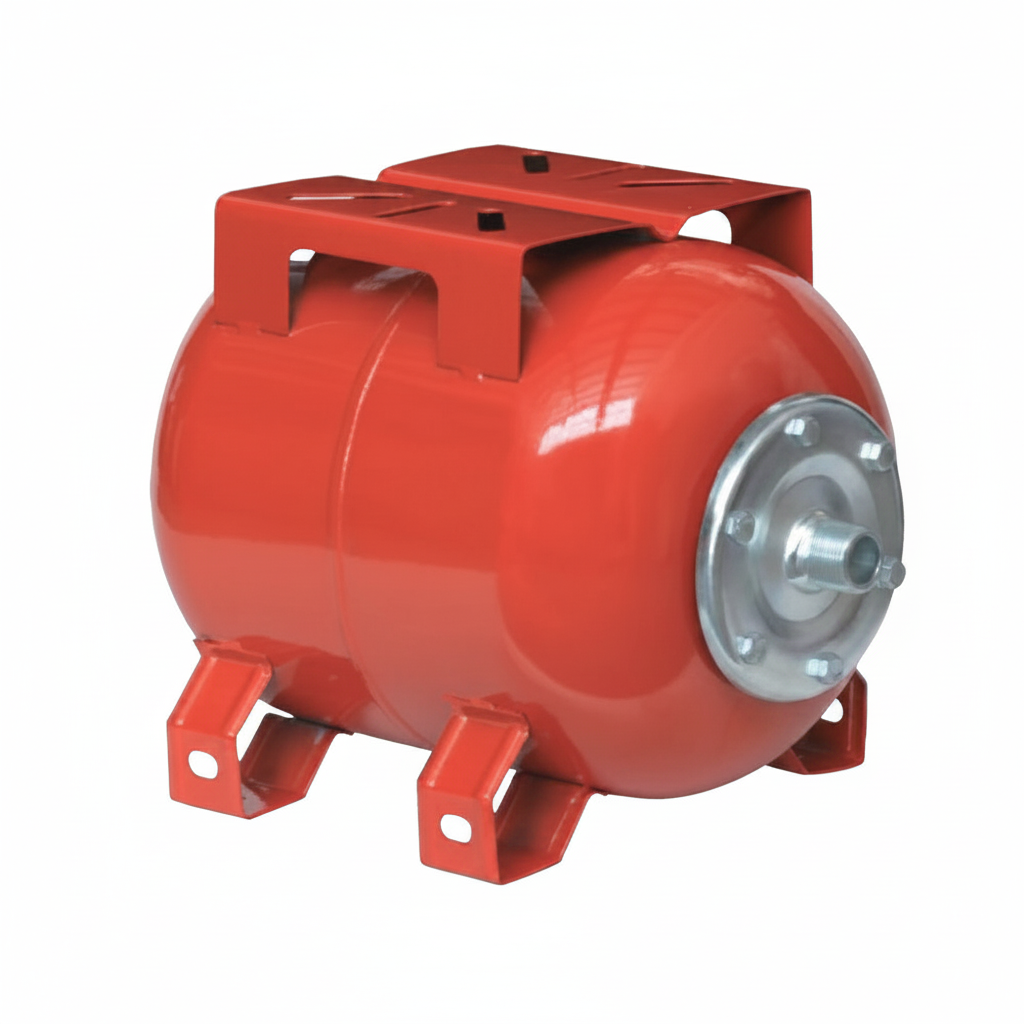

Ibaiondo 03100211 100 Ltr Horiz. Potable Expansion Vessel Pump base

pause
£530.40 GBP
£757.92 GBP £530.40 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

The Ibaiondo 03100211 is a 100-litre horizontal potable expansion vessel with pump base for booster sets, borehole pumps, and hot water cylinder applications. Fixed DIN 4807 membrane, epoxy powder coating. CE and TÜV approved.

Download PDF spec sheet.

  • Part No: 03100211
  • Capacity: 100 litres (horizontal)
  • Max working pressure: 10 bar
  • Pre-charge: 1.5 bar (may require adjustment on site)
  • Temperature range: -10°C to +100°C
  • Dimensions: D 450mm x L 740mm x H 480mm
  • Water connection: 1"
  • Weight: 18 kg
  • Bladder: High-resistance rubber, fixed (non-replaceable), DIN 4807
  • Coating: Epoxy powder
  • Approvals: CE, TÜV
