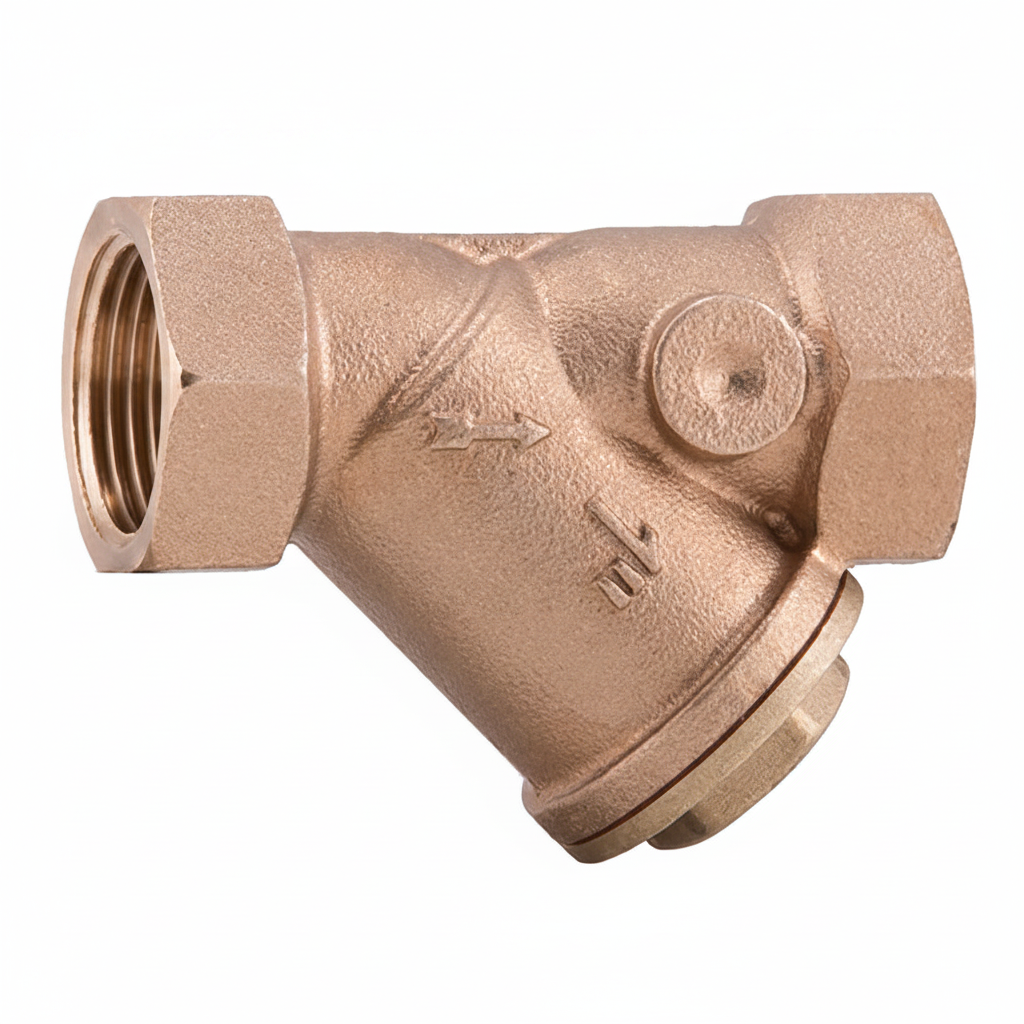

1" f x f Bronze water Y Strainer

1" BSP F x F bronze Y strainer suitable for water, glycol solutions and domestic water applications.

• Size: 1" BSP F x F
• Maximum temperature: 95°C (peaks to 110°C)
• Maximum pressure: 16 bar
• Mesh: 100 Micron
• Body: OT58 Brass – UNI 5705
• Filter: AISI 304 INOX Steel
• O-Ring: NBR Rubber
• Connections: ISO 228-1 threaded
• Suitable fluids: Water for thermal systems, glycol solutions (max 30%), domestic water
• Filter cartridge removable for cleaning and inspection

Installation

Before installing the valve, please verify system working conditions, such as pressure and temperature, to be sure they are within the working conditions of the filter. It is important that the filter is free from obstacles for its periodical maintenance.

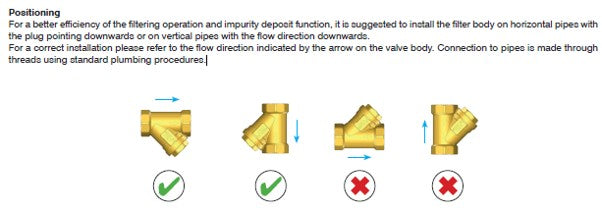

Positioning

For a better efficiency of the filtering operation and impurity deposit function, it is suggested to install the filter body on horizontal pipes with the plug pointing downwards or on vertical pipes with the flow direction downwards. For a correct installation please refer to the flow direction indicated by the arrow on the valve body. Connection to pipes is made through threads using standard plumbing procedures.
