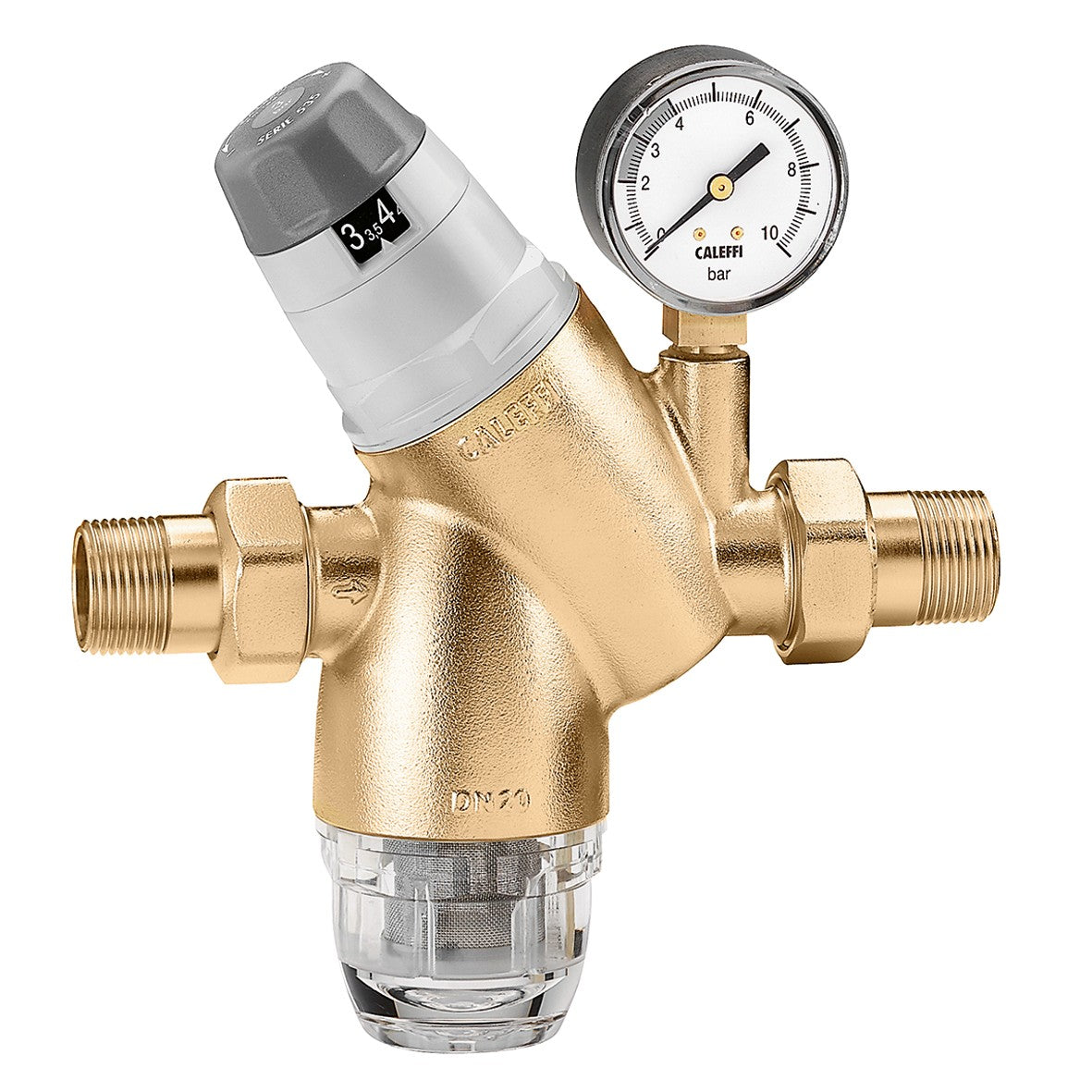

Caleffi 535141 1/2" Pressure reducing valve with inspection filter and gauge

Size: 1/2"

Product no: 535141

Pressure reducing valve with self-contained replaceable cartridge. With pressure gauge or pressure gauge connection

DESCRIPTION:

Pressure reducing valve with self-contained replaceable cartridge. Brass body.
With pressure regulating scale for manual pressure adjustment. Stainless steel strainer cartridge with transparent housing.
Male union connections.
Max. upstream pressure: 25 bar.
Downstream setting pressure range: 1–6 bar.
Max. working temperature: 40°C.
Strainer mesh size Ø: 0,28 mm.
Certified to EN 1567.
With replacement strainer and key to service strainer and cartridge.

* With stainless steel pressure gauge 0–10 bar.
