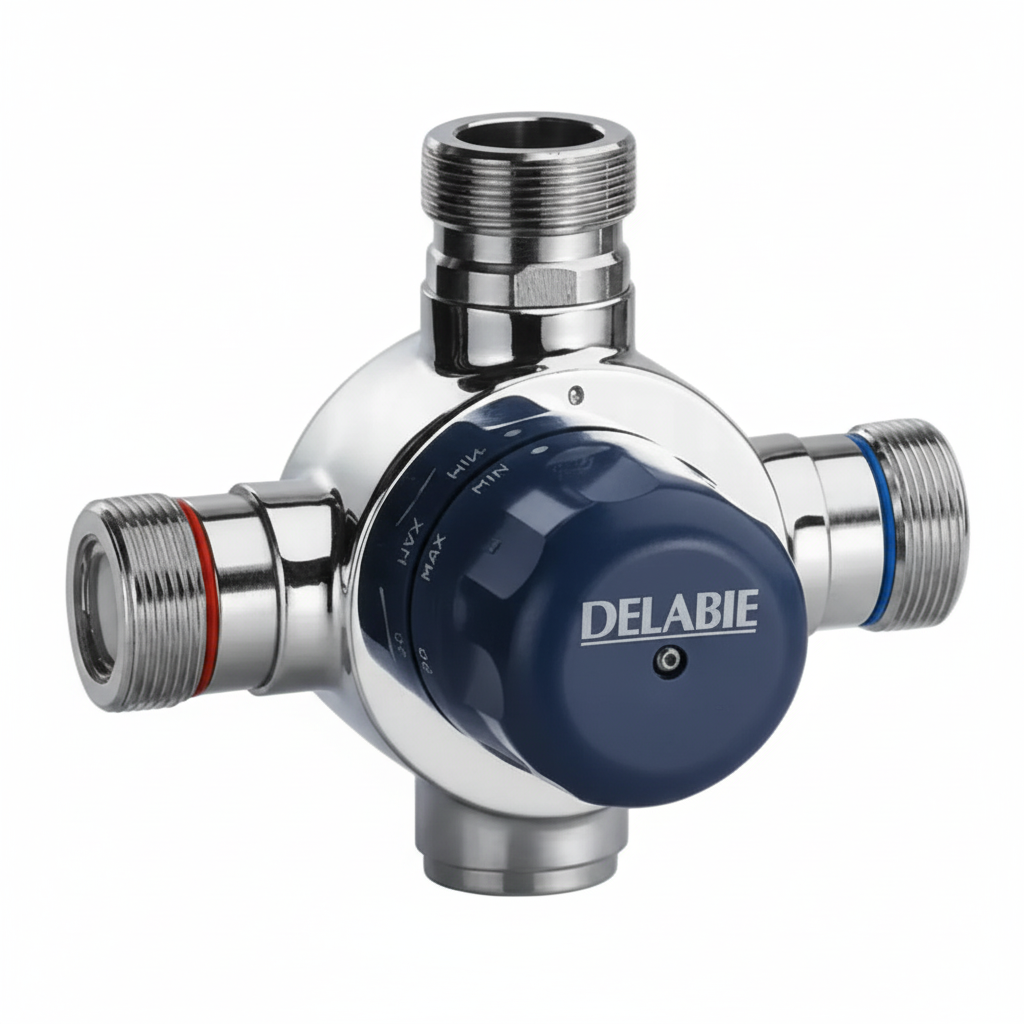

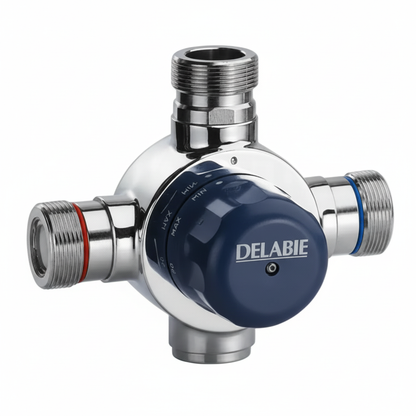

Delabie 730002 3/4" Premix Thermostatic Mixing Valve

Product number: 730002

Size: 3/4"

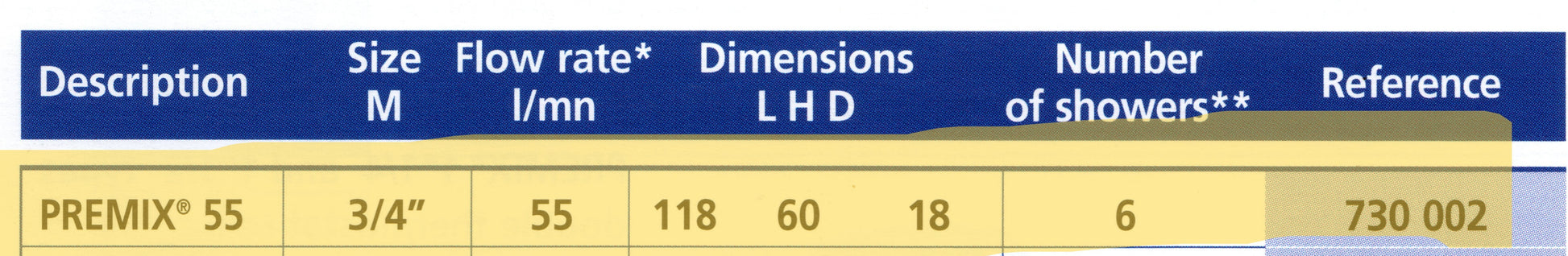

Flow Rate: 55 l/min at 3 bar pressure
Factory preset: 40 degrees C (to be commissioned by installer).

Group thermostatic mixing valve designed for collective applications including, an automotive cell with a maximum temperature limited and check valves. accessible from the exterior without removing mechanism.

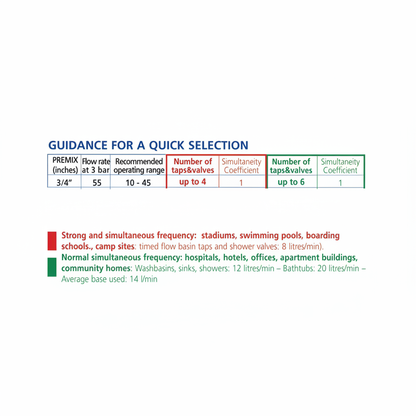

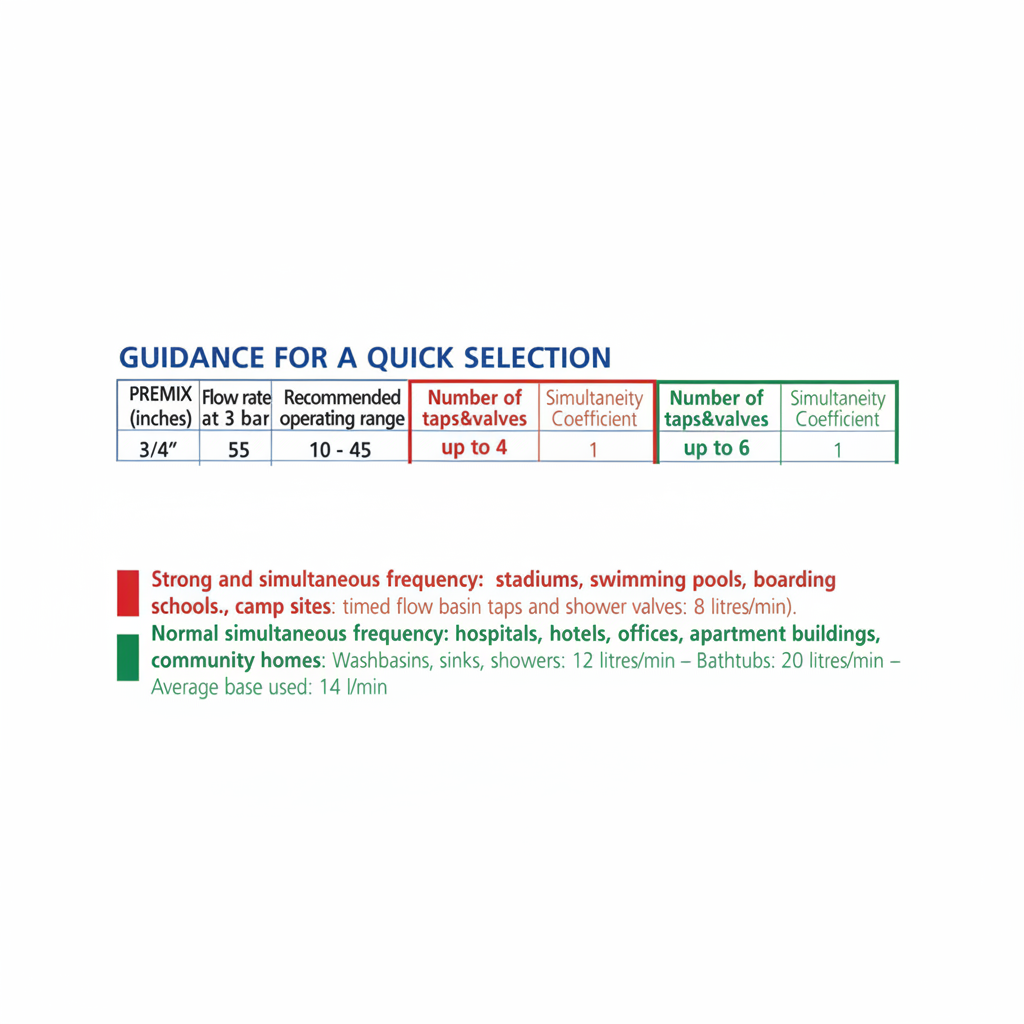

Designed for: Strong and simultaneous frequency: swimming pools, stadiums, schools, camp sites: timed flow basin taps and shower valves: 8 ltrs/minute.

This valve does not offer TMV 3 protection.

Chrome plated gunmetal body

Technical characteristics:

* Factory set at 40 °C
* Range of tempered water adjustment from 35 °C to 50 °C. Unlockable device to obtain a scope from 20 °C to 50 °C.
* Maximum temperature for hot water: 85 °C. Tamperproof temperature (e.g. 42 °C).
* Minimum differential between hot and mixed water: 5 °C min.
* Min/Max pressures: 1 to 10 bar (recommended pressures 1 to 5 bar)
* Pressure differential between hot and cold inlets: 1 bar recommended (3 bar maximum)

Group thermostatic mixer valve with temperature limiter and check valves, accessible from the exterior without removing mechanism.

Chrome plated gunmetal oday.

Interchangeable cartridge mechanism without the need to remove the valve.

Delabie recommend installation of square isolating valves with test points on cold and hot inlets. see Product 730802.2p
