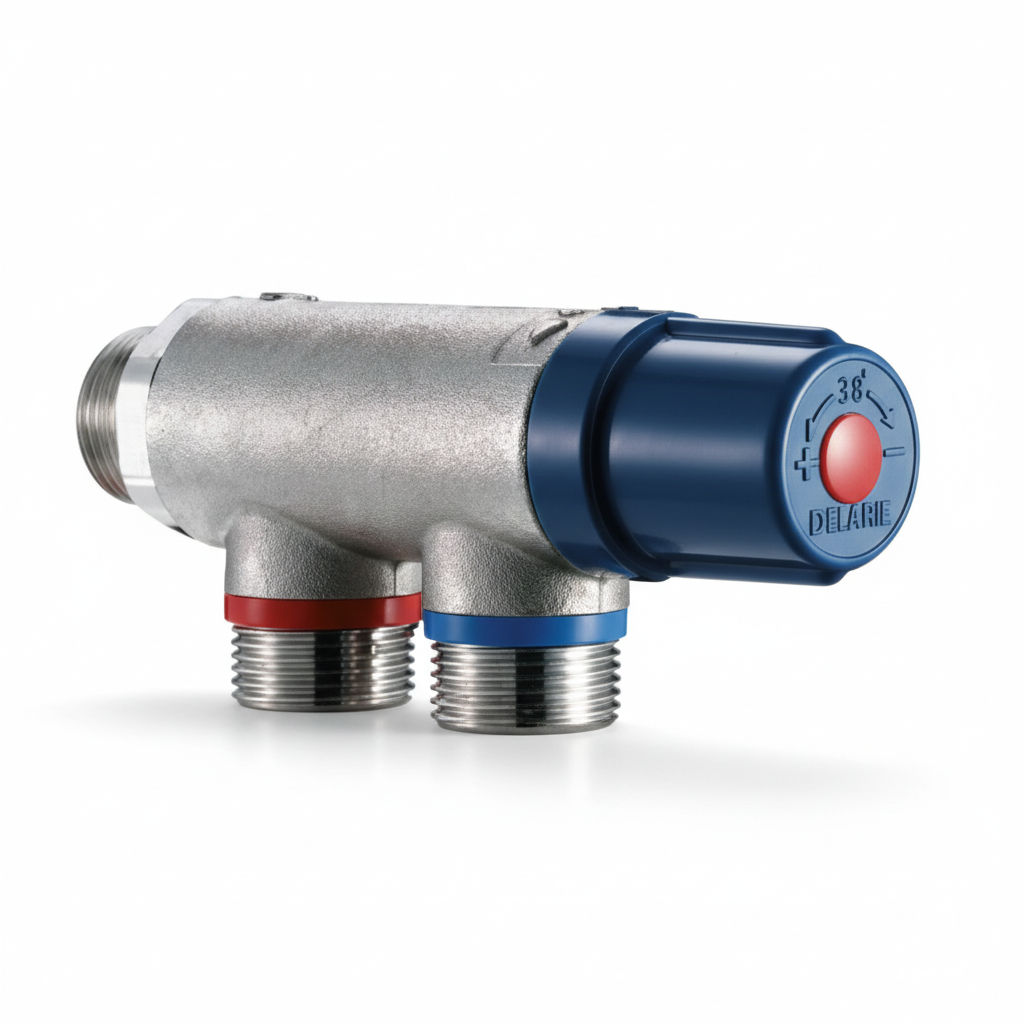

Delabie 73002 3/4" Premix Compact Thermostatic mixing valve

A reliable Delabie 73002 3/4" Premix Compact Thermostatic mixing valve designed for thermostatic mixing valve applications.

Premix Compact Thermostatic mixing valve

Sanitary hot water thermostatic mixing valve for mixed water distribution:

For 2 to 10 sanitary points-of-use (depending on the flow rate).

Adjustable temperature from 30 - 60 C, can be blocked by the installer.

Non-return valves and filters.

Thermal shocks are possible.

Advantages:

Hot water shut-off if cold water fails

Temperature stability

Accessible non return valves and filters

Automotive thermo-reactive cell

Specification description

Thermostatic mixing valve for mixed water distribution from 30 - 60°C:

For 2 to 10 sanitary points-of-use (depending on the flow rate).

Adjustable temperature from 30 - 60°C, can be blocked by the installer.

Brass body, Nickel plated

Filters and non-return valves.

Thermal shocks are possible.

M¾".

Automatic shut-off if cold or hot water fails

Temperature stability

Accessible filters and non return valves

• Product no: 73002
• For mixed water 30 - 60 °C
• Rough finish with blue ap, 2 to 10 taps, 3/4"
• Anti-scalding safety: Automatic Hot water shut-off if cold water supply fails.
• Minimum flow rate for operation: 5 lpm.
• M3/4' (KV 23 lpm).
• Finish(es) : Nickel-plated
• Length : 140 mm
• Flow Rate : 19 l/min
• Uniclass : Pr_65_54 Valve products
• Anti-scalding safety: immediate shut-off if cold or hot water supply fails.
• Minimum flow rate to operate: from 5 - 25 lpm.
