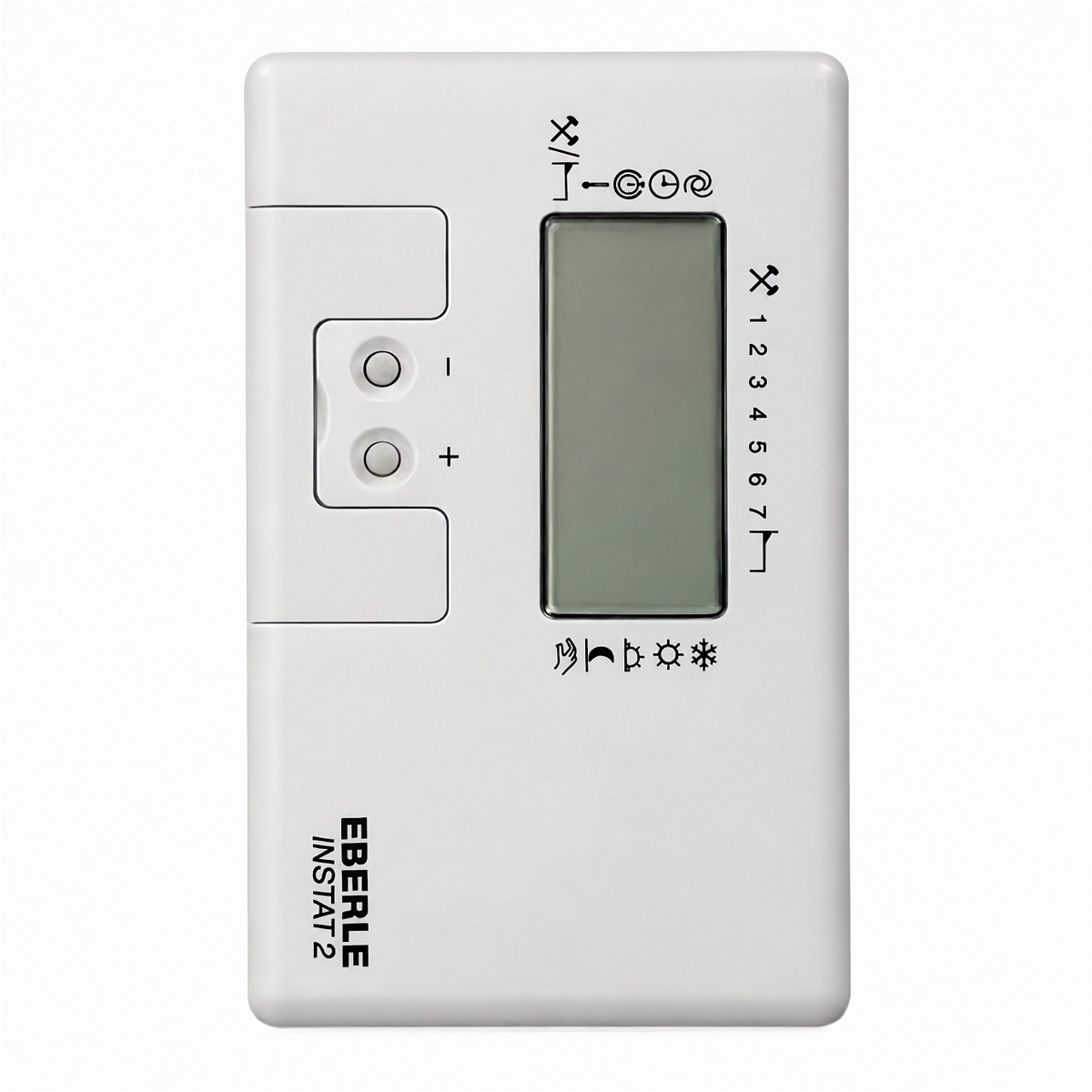

Eberle Instat 2 525 32 2 Wire Clock Thermostat

Eberle INSTAT 2 (Type 52532) programmable 2-wire room and clock thermostat. Battery-powered with a voltage-free changeover relay, suitable for controlling heating systems in domestic and commercial installations. The Instat 2 digital clock thermostat is suitable for wall mounting in living rooms and offices to control electric, gas or warm water heating.

Up to four times per day different temperature levels can be programmed. Each day can be selected as a "work" or "rest" day, with a different programme able to be set for each.

Operating instructions

• Product No: INSTAT 2, Type 52532 or 052532 6419
• Application: Programmable 2-wire room/clock thermostat
• Power: 2 × AA batteries, 1.5 V each (3 V total)
• Battery life: Approx. 2 years
• Relay: 1 × changeover (SPDT), voltage-free
• Relay rating: 8(2) A at 250 V AC
• Temperature range: 5–30 °C
• Switching differential: 0.5 K
• Min. ON/OFF switching time: 10 minutes
• Clock accuracy: ±10 min/year at 20 °C
• Protection: IP30, Class II
• Operating temperature: 0–40 °C
• Dimensions: 142 × 71 × 32 mm
• Weight: Approx. 210 g
• Programming: 4 temperature/time periods per day
• Day groups: Workdays (Mon–Fri) and rest days (Sat–Sun)
• Supplied by Spatec NI
