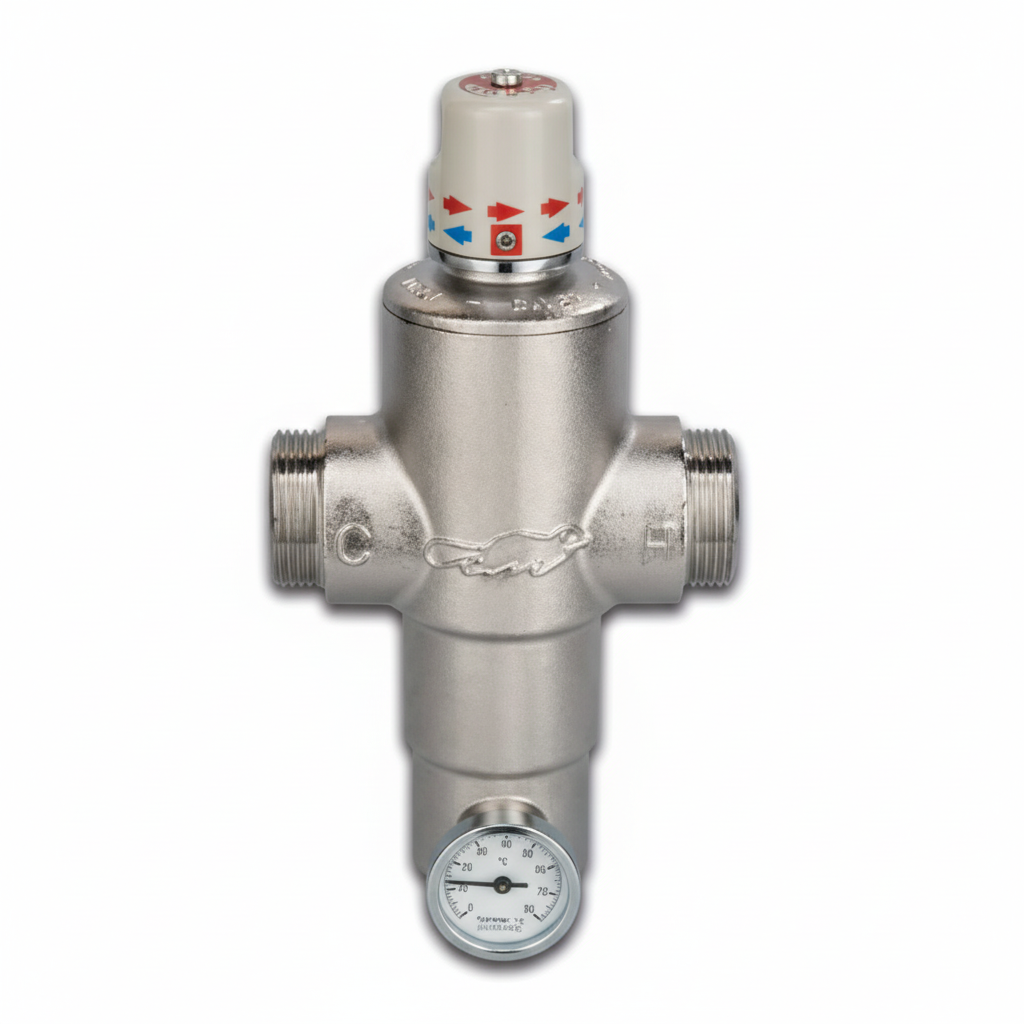

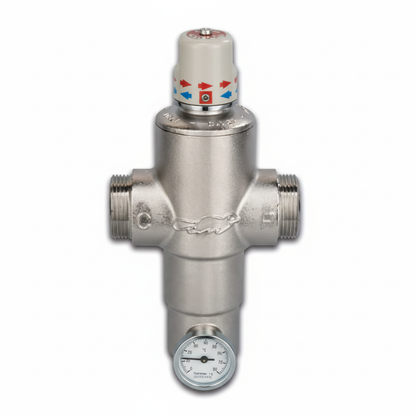

River R302 DN20 Ecosan 3/4" Group Thermostatic Mixing Valve

Product No: R302 DN20

Download technical information

Group thermostatic mixing valve designed for collective applications.

Connection: 3/4” m x m x m

Materials:

Body:DZR Brass
Cartridge:DZR Brass
Shutter: DZR Brass
Spring: Stainless Steel
Seal components: EPDM

Temperatures and pressures:

Outlet Temperature range settings: 20 – 65 oC
Max. working pressure: 10 bar
Max. inlet temperature: 85 oC

Flow rate: (dependant on pressure)

1 Bar 43 l/min
2 bar 63 l/min
3 bar 76 l/min
4 bar 90 l/min

Tamperproof head
Single piece thermostatic cartridge construction
High Flow rate
Adjustable Outlet temperature
Accessories available
Automatic shut off in the event of hot or cold water failure

Function:

The River Ecosan is designed for use in applications where a high volume of water is required at the outlet such as shower blocks and centralised mixing. Providing a high volume of water at a stable temperature.
Can be used with floor radiant heating system

Conforms to: ISP 9001:2000

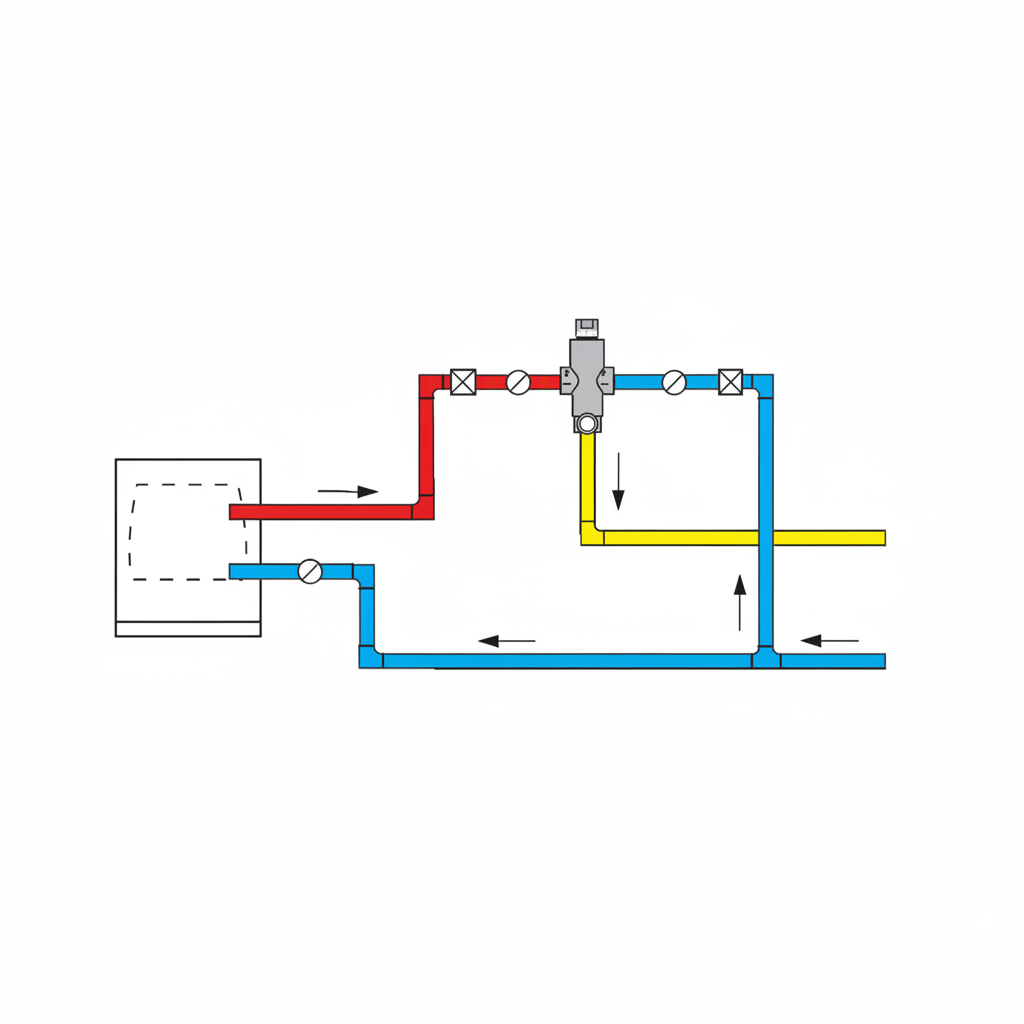

Installation example (without secondary circulation)
