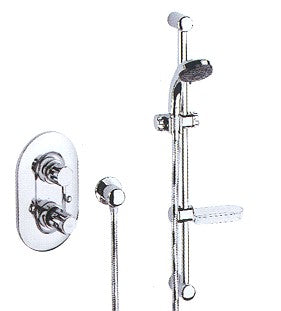

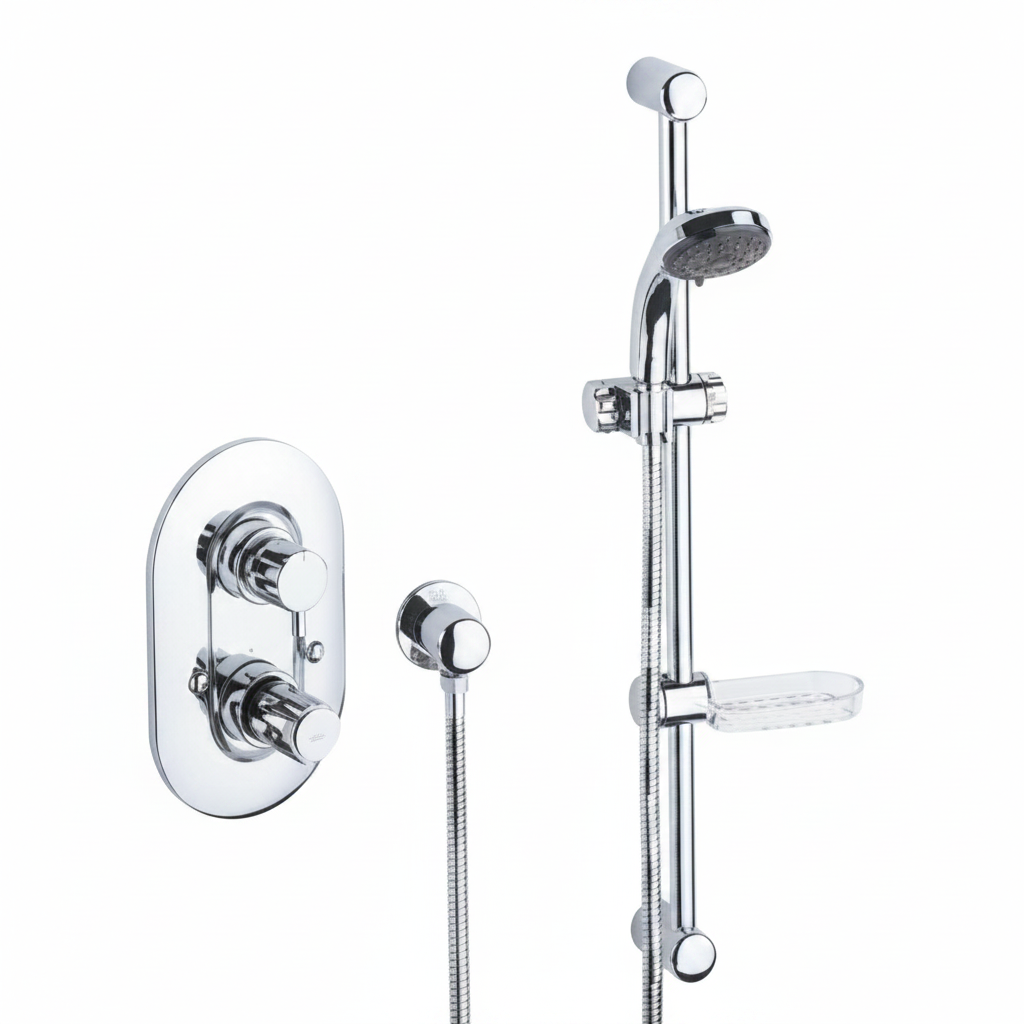

Grohe 3422600Y Automatic 2000 Thermostatic Single BIV shower

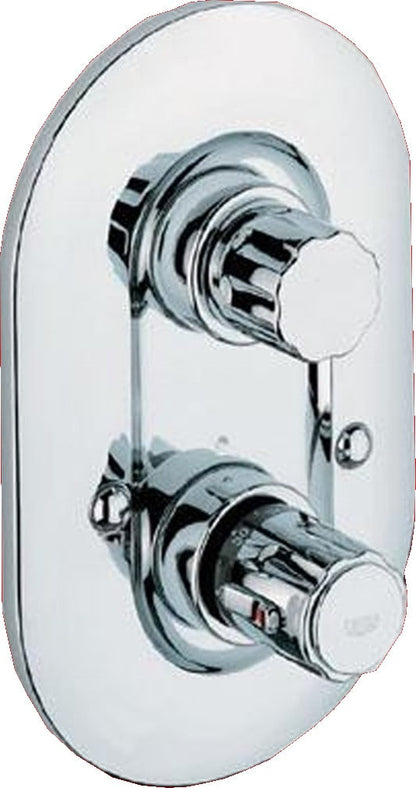

Automatic 2000 3/4" thermostatic built in shower mixer with safety stop at 38 oC.

Complete with exquisit BIV shower kit consisting:

Suitable for installation with:

* Gravity fed plumbing systems with open vented hot water cylinder.

* Cold water storage cistern

* Mains pressure unvented and instataneous thermal hot water storage systems

* Multi-point gas water heaters

* Combination boilers with modulating hot water output

To maintain sufficient hot water output ensure the combination boiler temperature setting is on high.

Max. operating pressure: 3 bar

For pressures over 3.0 bar Grohe specify high pressure seat 47465

Max. Hot water inlet: 80 degrees C

Recommened (for economy) 60 degrees C

• Product code: 34226007
• Handshower: Relexa plus exquisit 28216
• Shower rail: 600mm 28666
• Shower hose: 1500mm 28161
• Elbow outlet: 286761
• Connection size: 3/4"
• Min recommended pressure * 0.1 bar
• Max pressure differential: 5:1
• Recommended pressure 0.1 - 5 bar *
