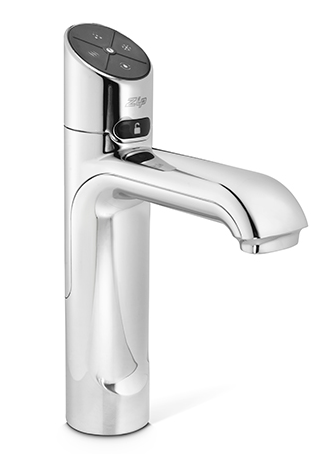

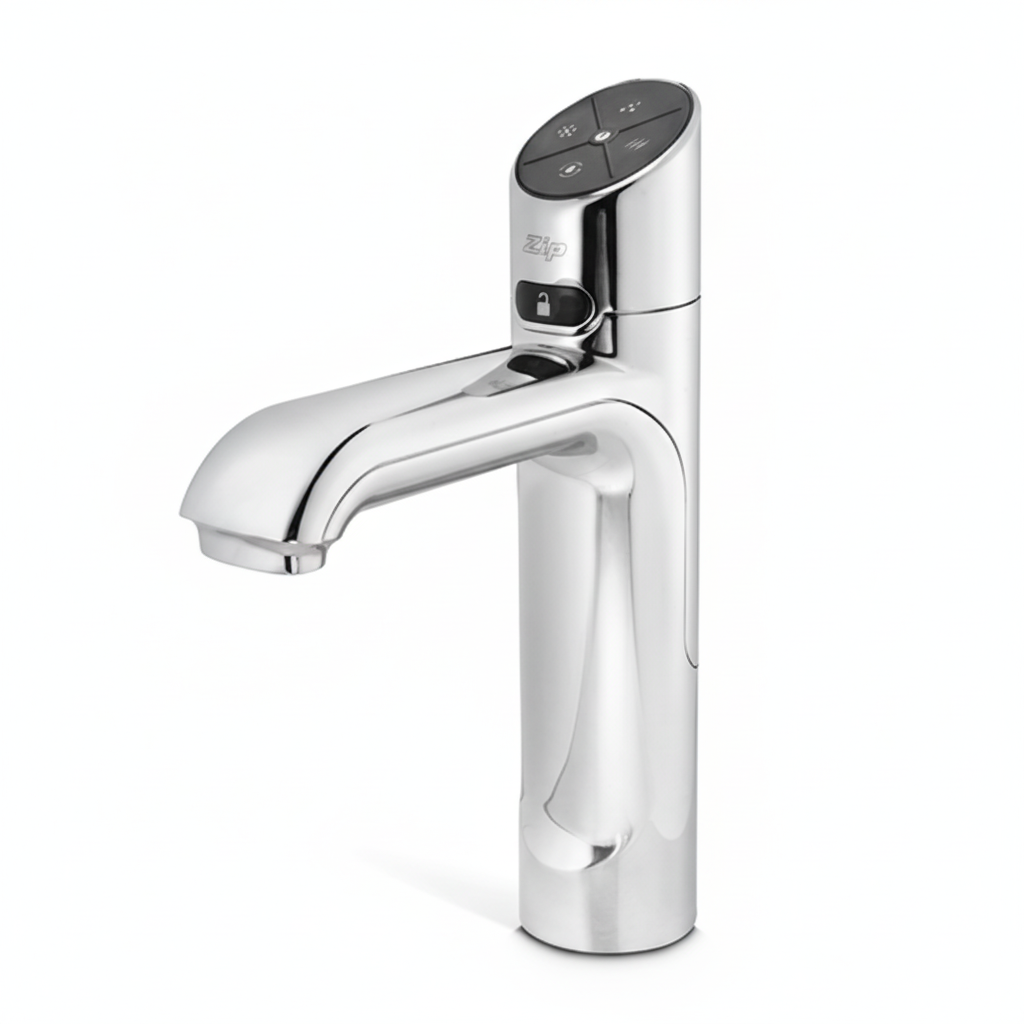

HydroTap G5 H55711Z00UK Classic Plus chilled 175 bright chrome for work

Product no:  H55711Z00UK

Filtered chilled HydroTap Classic Plus delivers instant filtered chilled water for workplaces of all sizes. From a single tap and under counter command centre, the Classic Plus dispenses only
the purest tasting water, filtered to a market-leading 0.2 micron - 25 times more effective than a standard water filter jug.

HydroTap G5 Classic Plus chilled 175 bright chrome for work

Capacity, weights & dimensions:

Water functions Chilled
Chilled capacity 175 Glasses per hour

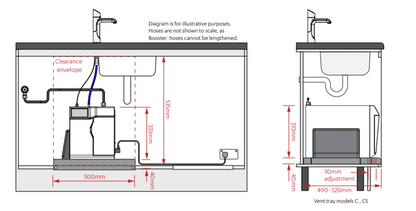

Unit dimension (W x D x H) 500mm x 520mm x 373mm

Plumbing

Wholesome water inlet supply required Cold Feed
Supply pressure range 1.7bar - 5bar
Supply connection (hot & cold) 1 x isolated 1/2"BSP BSP fitting (flexible supply hoses included)
Installation Must comply with current water supply regulations

The minimum water pressure will vary if a limescale filter is installed. Please contact us to discuss your requirements.
Suitable drainage to trapped waste within 1 metre required for both on font and sink installations.

Electrical

Command centre power rating 0.3 kW @ 230V AC
Voltage supply 13 amps
Power supply requirements 1 x 13amp socket outlet
Cable length 1.8m fitted with UK standard 3-pin plug
Installation Must comply with current IEE regulations

Tap design

Style HydroTap Classic Plus
Finish Bright Chrome

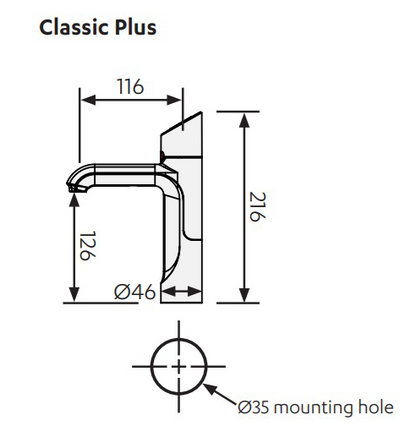

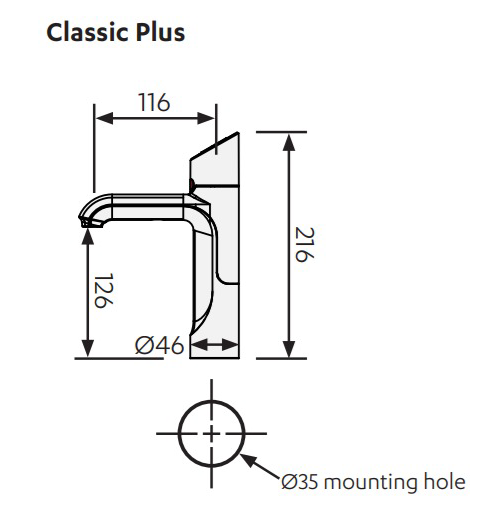

Installation hole cut size 35mm
Rotation Fixed

Command centre

Factory temperature chilled 6-10°C
Filtration 0.2 Micron Filter Cartridge
Flow rate (Boiling) l/min
Flow rate (Chilled) 4 l/min
Wholesome water supply requirements Cold Feed
Refrigerant R290
Tank material Stainless Steel
