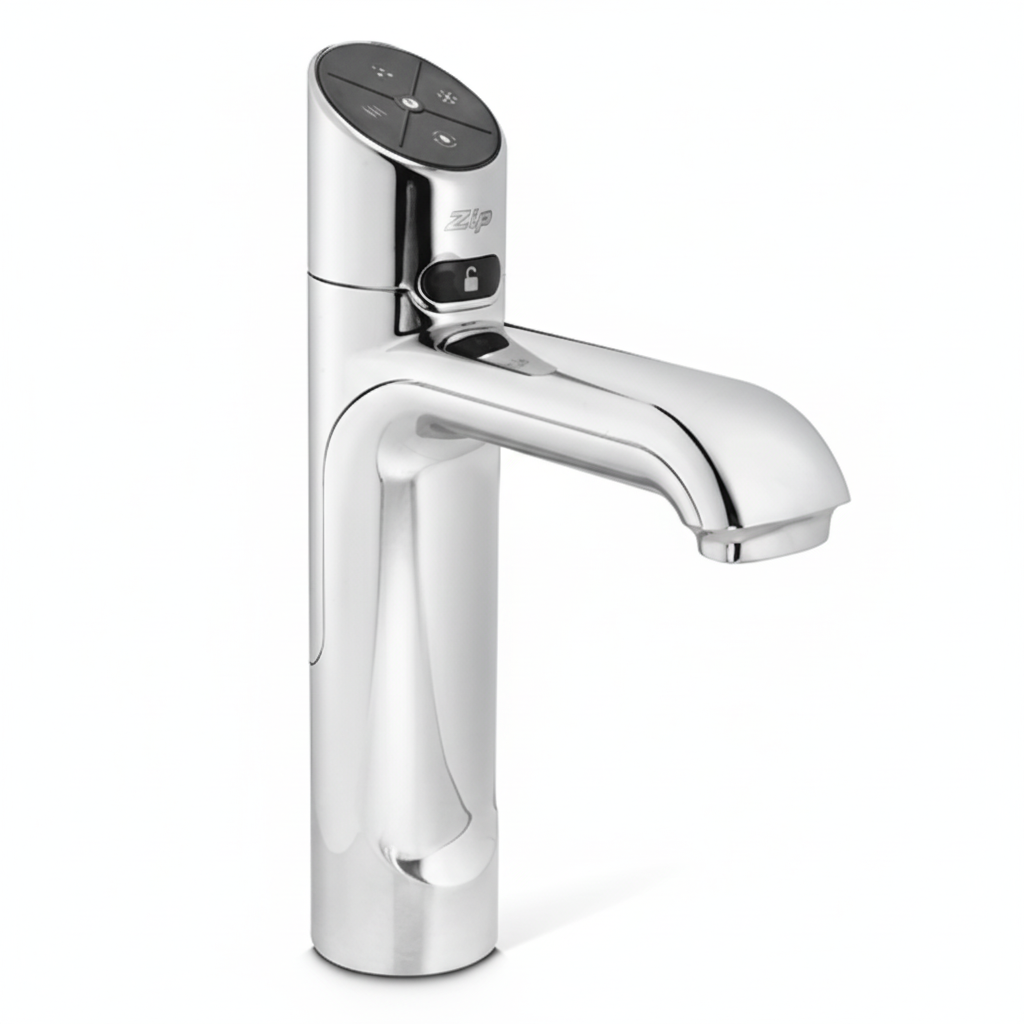

HydroTap G5 H55765Z00UK Classic Plus chilled sparkling 175 bright chrome for work

Product no: H55765Z00UK

FILTERED: CHILLED SPARKLING

Product name HydroTap G5 Classic Plus chilled sparkling 175 bright chrome for work

Capacity, weights & dimensions
Water functions Chilled, Sparkling
Chilled capacity 175 Glasses per hour
Sparkling capacity 175 Glasses per hour
Unit dimension (W x D x H) 500mm x 520mm x 373mm
Product weight - empty / full 36kg / 44kg

Plumbing

Wholesome water inlet supply required Cold Feed
Supply pressure range 2.5 bar - 5 bar
Supply connection (hot & cold) 1 x isolated 1/2"BSP fitting (flexible supply hoses included)
Installation Must comply with current water supply regulations
The minimum water pressure will vary if a limescale filter is installed. Please contact us to discuss your requirements.

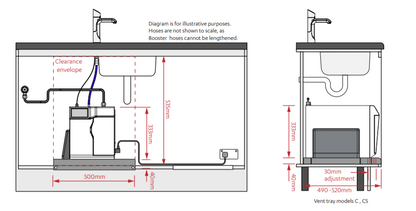

Suitable drainage to trapped waste within 1 metre required for both on font and sink installations.

Electrical

Command centre power rating 0.45 kW @ 230V AC
Voltage supply 13 amps
Power supply requirements 1 x 13amp socket outlet
Cable length 1.8m fitted with UK standard 3-pin plug
Installation Must comply with current IEE regulations

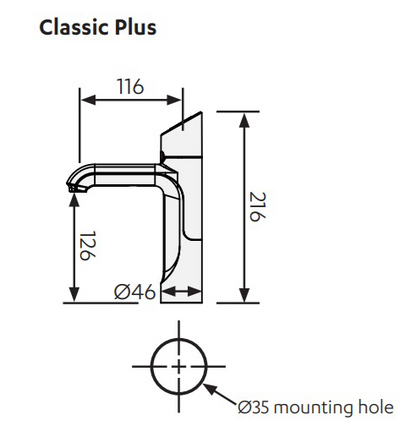

Tap design

Style HydroTap Classic Plus
Finish Bright Chrome
Installation hole cut size 35mm
Rotation Fixed

Command centre

Factory temperature chilled 3-5°C
Filtration 0.2 Micron Filter Cartridge
Flow rate (Boiling) l/min
Flow rate (Chilled) 4 l/min
Flow rate (Sparkling) 1.6 l/min
Wholesome water supply requirements Cold Feed
Refrigerant R290
Tank material Stainless Steel
