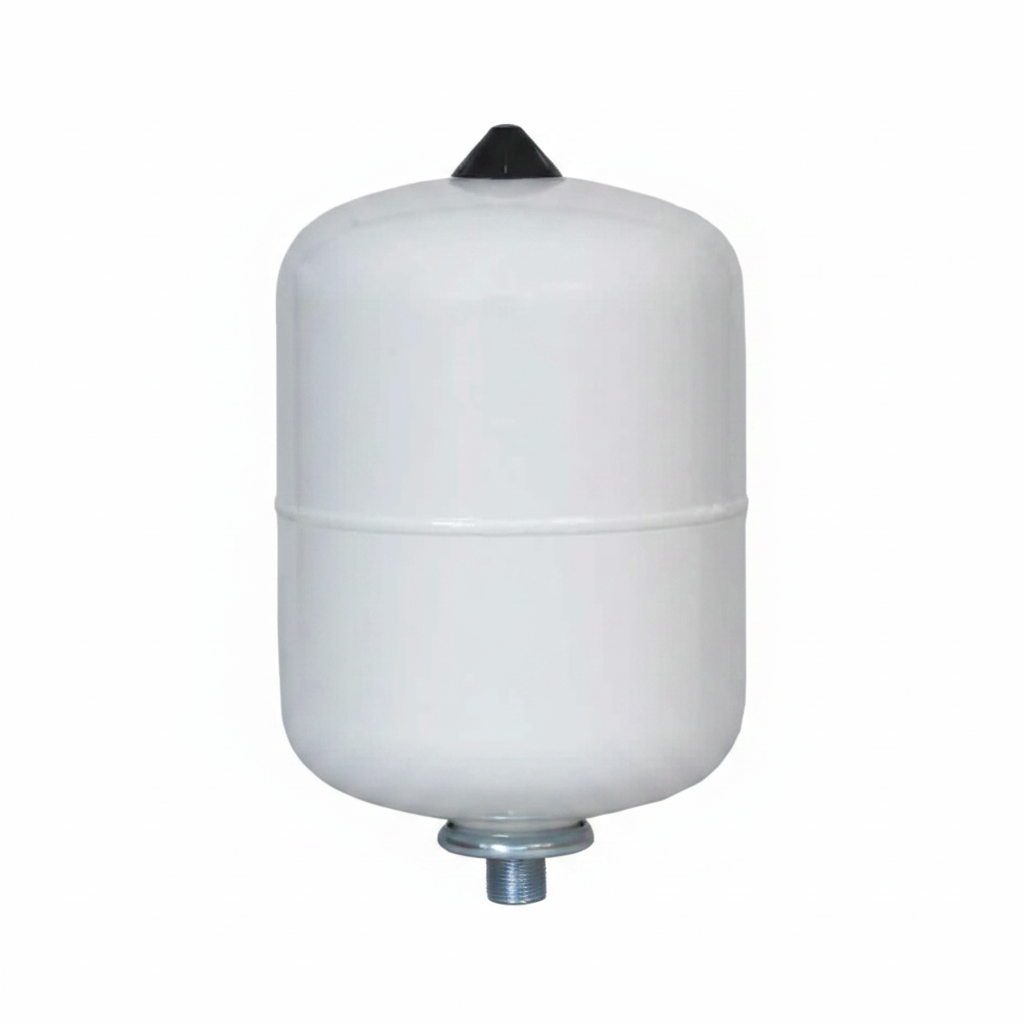

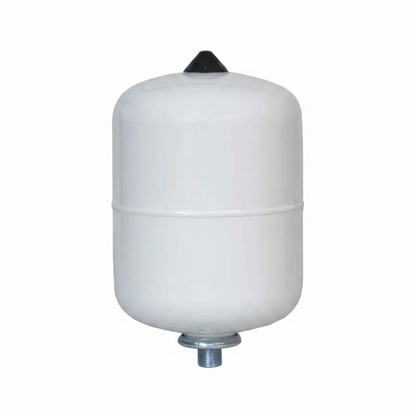

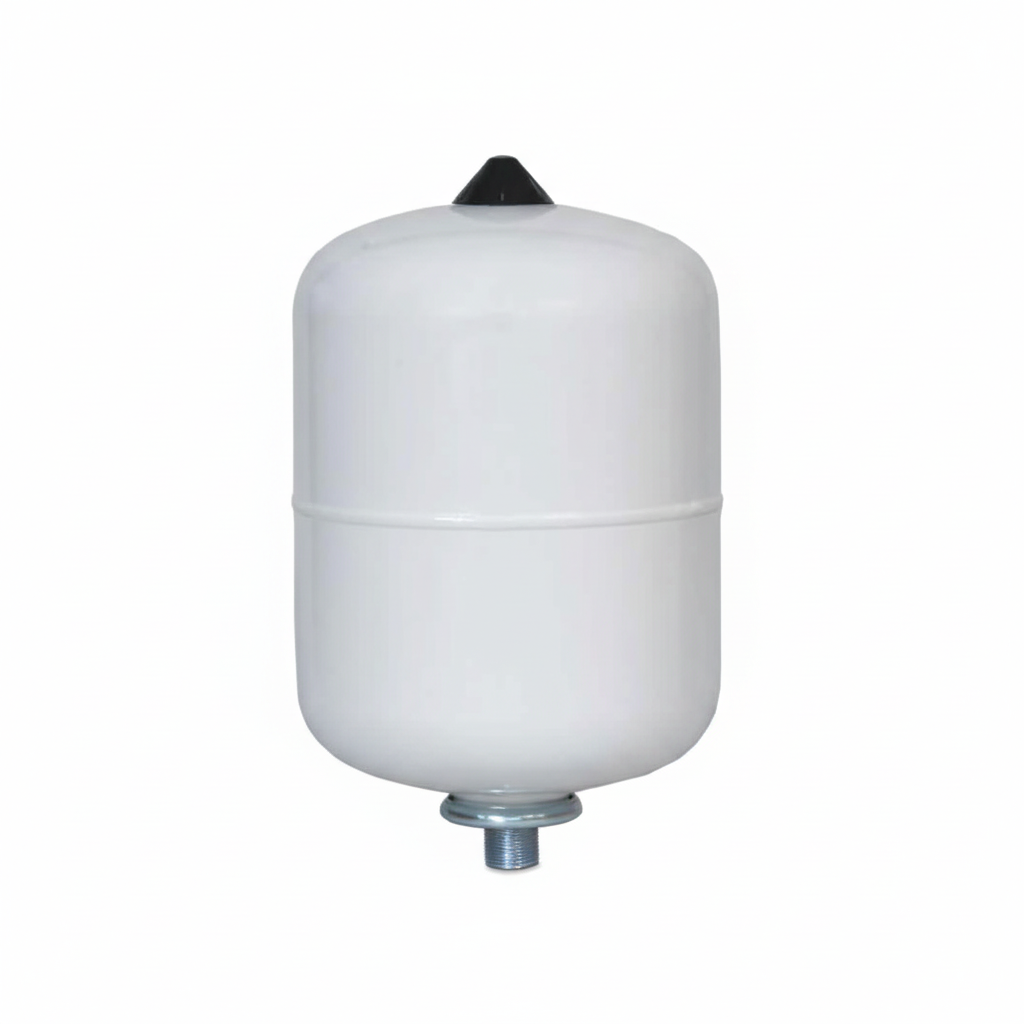

Ibaiondo 01008012 CMR 8 Ltr Potable Expansion Vessel

The Ibaiondo 01008012 CMR is an 8-litre potable expansion vessel designed for hot sanitary water in open circuits, including booster sets, borehole pumps, and hot water cylinders. CE and TÜV approved with white epoxy powder coating and a fixed DIN 4807 membrane. Download PDF spec sheet.

• Part No: 01008012

• Capacity: 8 litres

• Maximum working pressure: 10 bar

• Pre-charge: 3 bar

• Temperature range: -10°C to +100°C

• Dimensions: D 200mm x H 340mm

• Water connection: 3/4"

• Weight: 2.5 kg

• Bladder: High-resistance rubber, non-replaceable, DIN 4807

• Coating: White epoxy powder

• Approvals: CE, TÜV, PED 2014/68/EU
