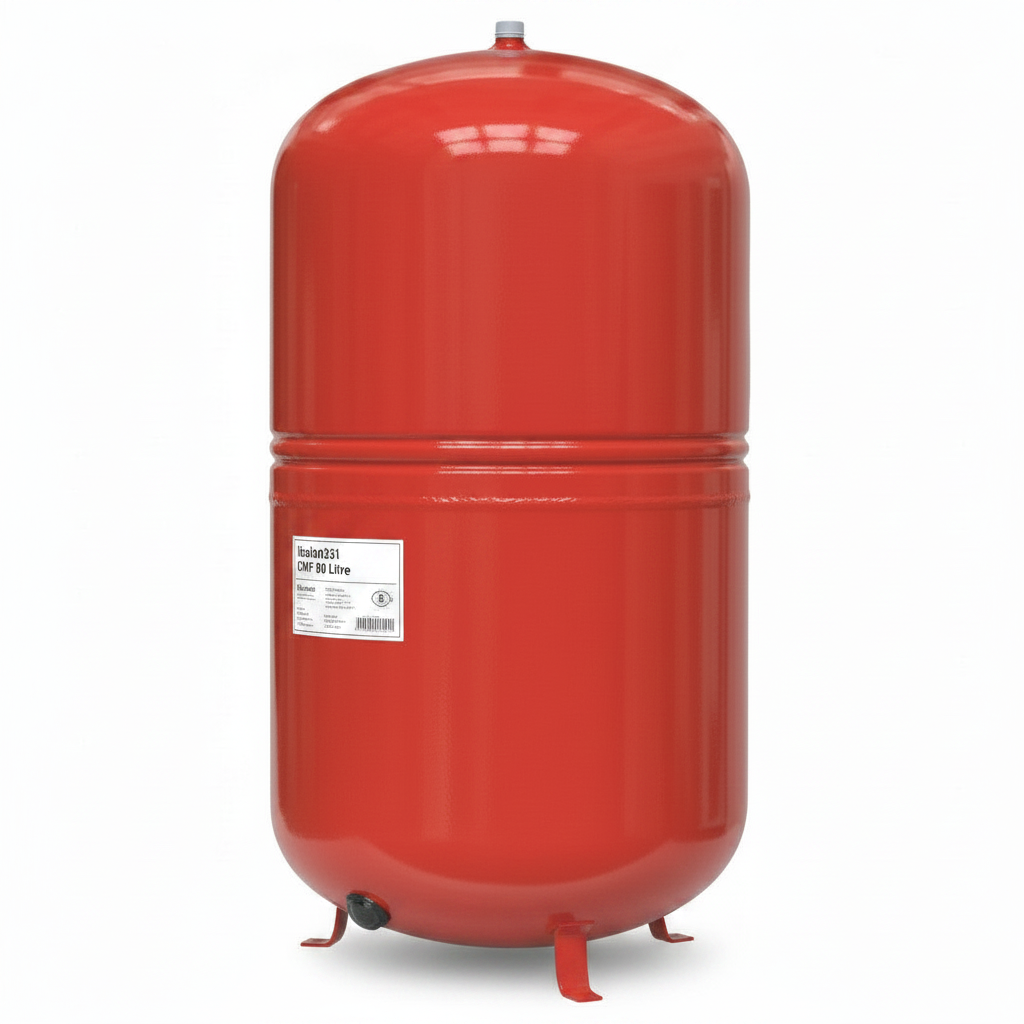

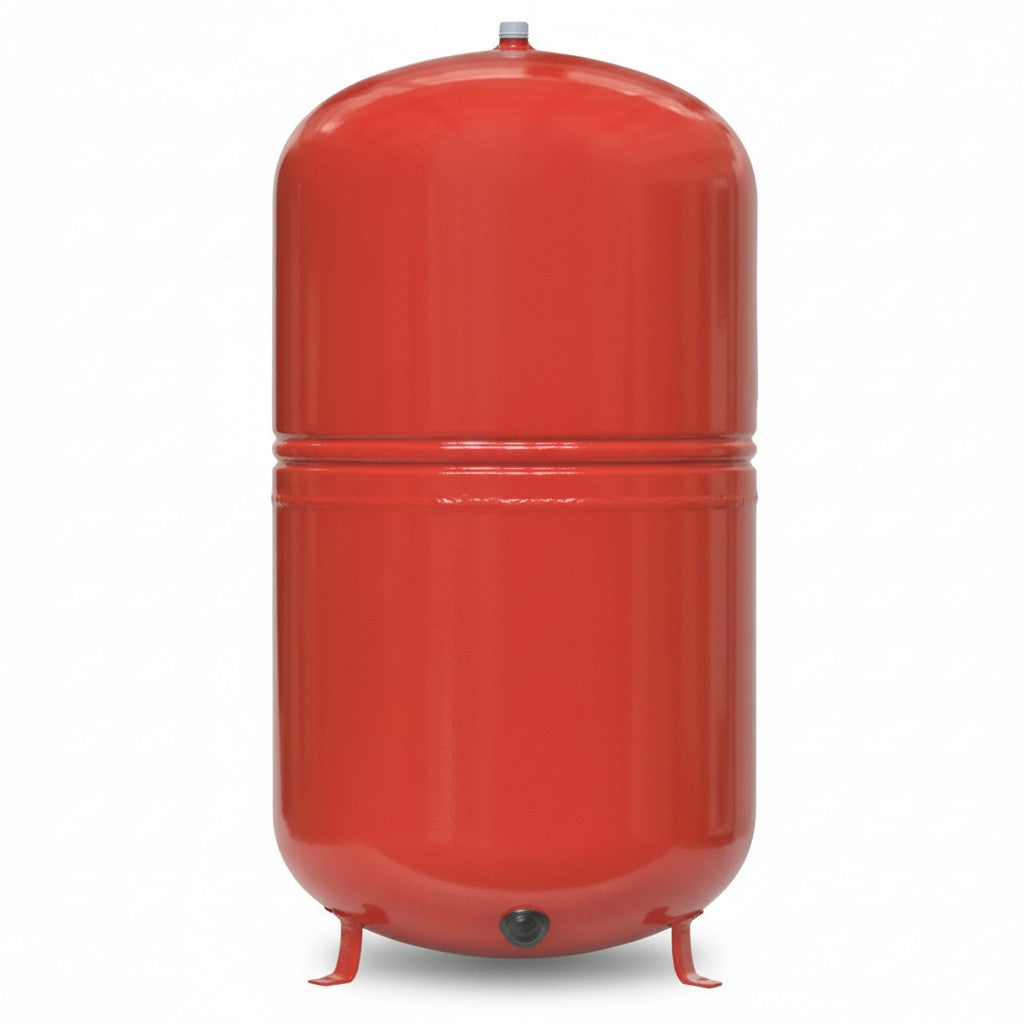

Ibaiondo 04080351 CMF 80 Ltr Heating Expansion Vessel

The Ibaiondo 04080351 CMF is an 80-litre foot-mounted heating expansion vessel designed for sealed central heating systems. CE and TÜV approved, it eliminates the need for a feed and expansion tank, reducing installation time and corrosion risk.

• Part No: 04080351

• Capacity: 80 litres

• Maximum working pressure: 6 bar

• Pre-charge: 1.5 bar

• Temperature range: -10°C to +100°C

• Dimensions: D 485mm x H 590mm

• Water connection: 1" top

• Weight: 16 kg

• Bladder: High-resistance rubber

• Mounting: Foot mounted (no bracket required)

• Approvals: CE, TÜV
