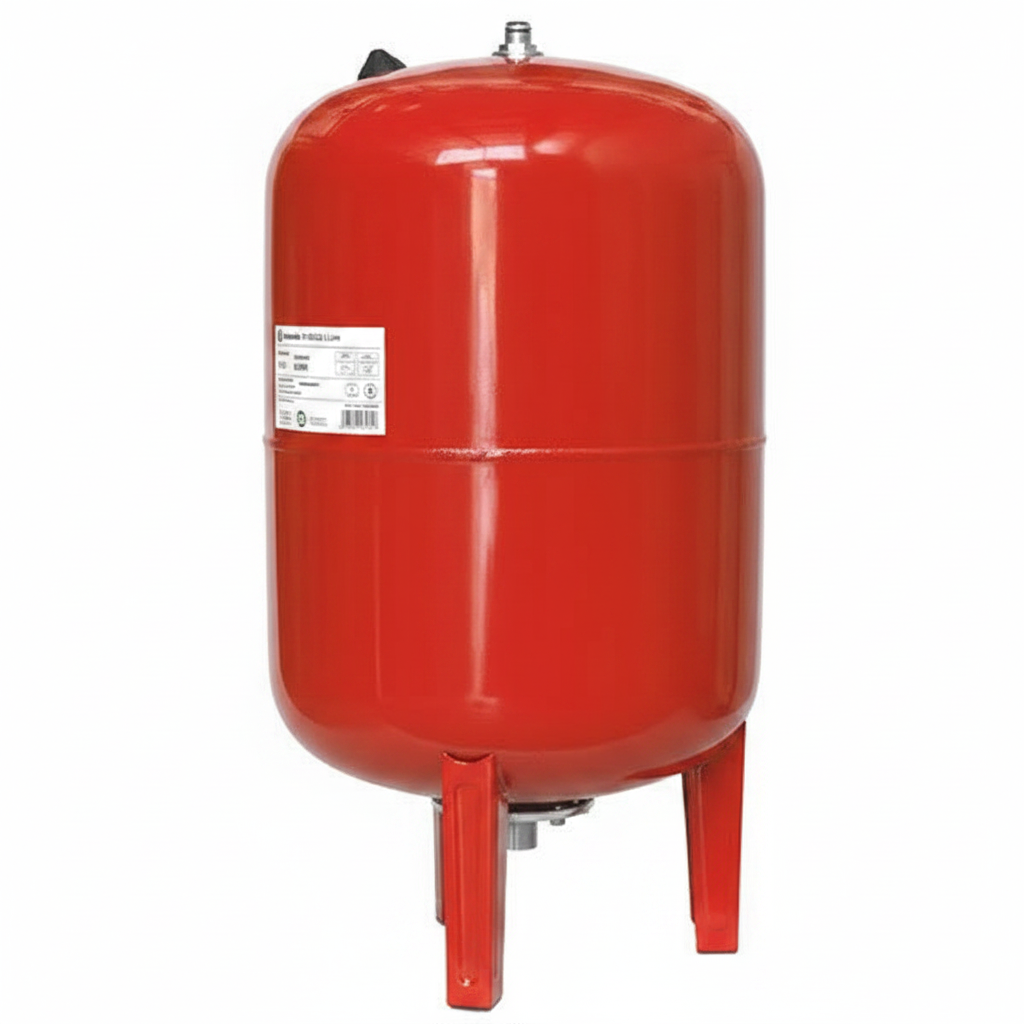

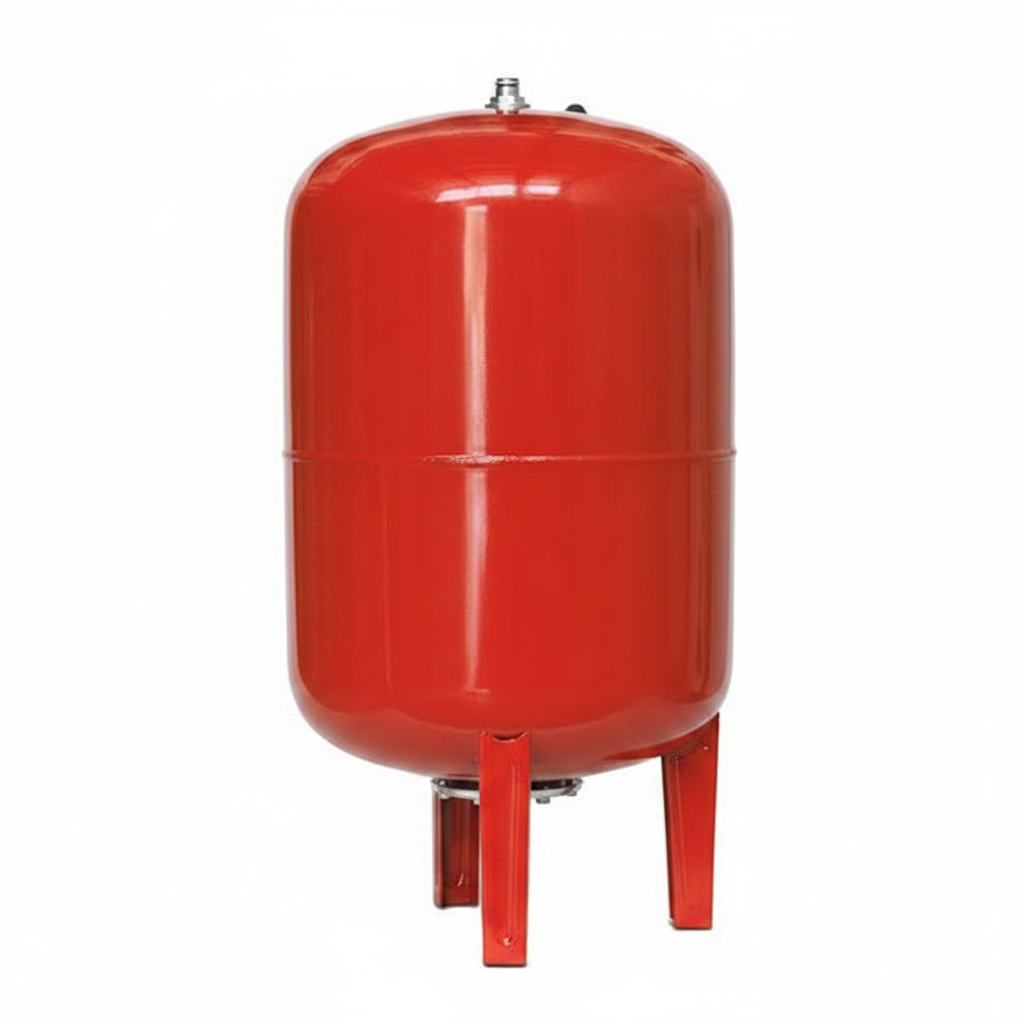

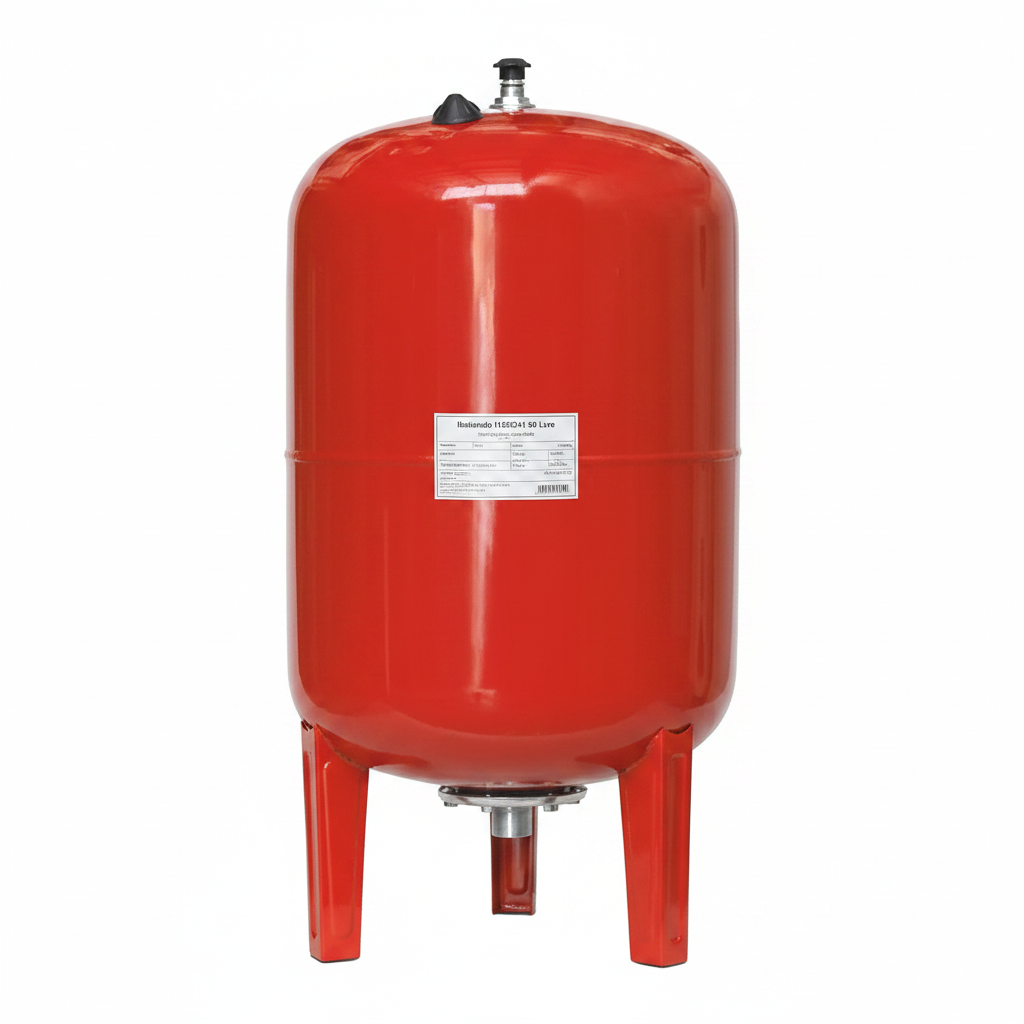

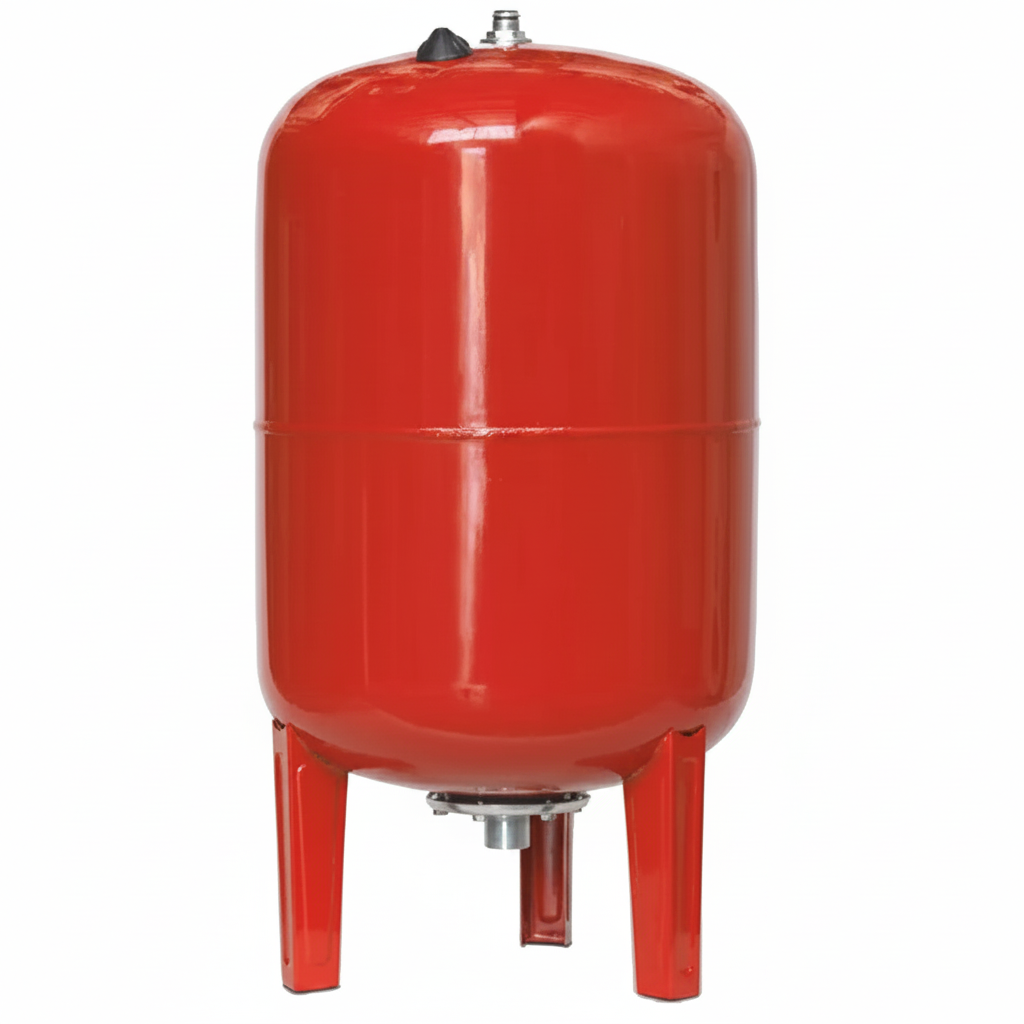

Ibaiondo 01050241 50 Ltr Potable Expansion Vessel

Size: 50 Ltr

Part no: 01050241

• Maximum working pressure 10 bar
• Pre-charge 3 bar
• Temperature range - 10 °C + 100 °C
• Dimensions D 360 x 750 Height
• Water Connection 1”
• Weight 12 Kilos
• High resistant rubber bladder

Epoxy powder coating
Membrane according to DIN 4807 suitable to contain sanitary water.
Fixed membrane (non-replaceable)

Our Ibaiondo xpansion vessel is suitable for hot sanitary water in opened circuits.

Approvals:- (Vessel) CE endorsed, TUV

This tank is used in the following installation cases:

Potable water applications, booster sets, borehole pumps etc, expanded water from hot water cylinders and calorifiers.

The tanks can be set up with a pump unit and pressure switch etc to reduce the number of starts and stops per hour.
