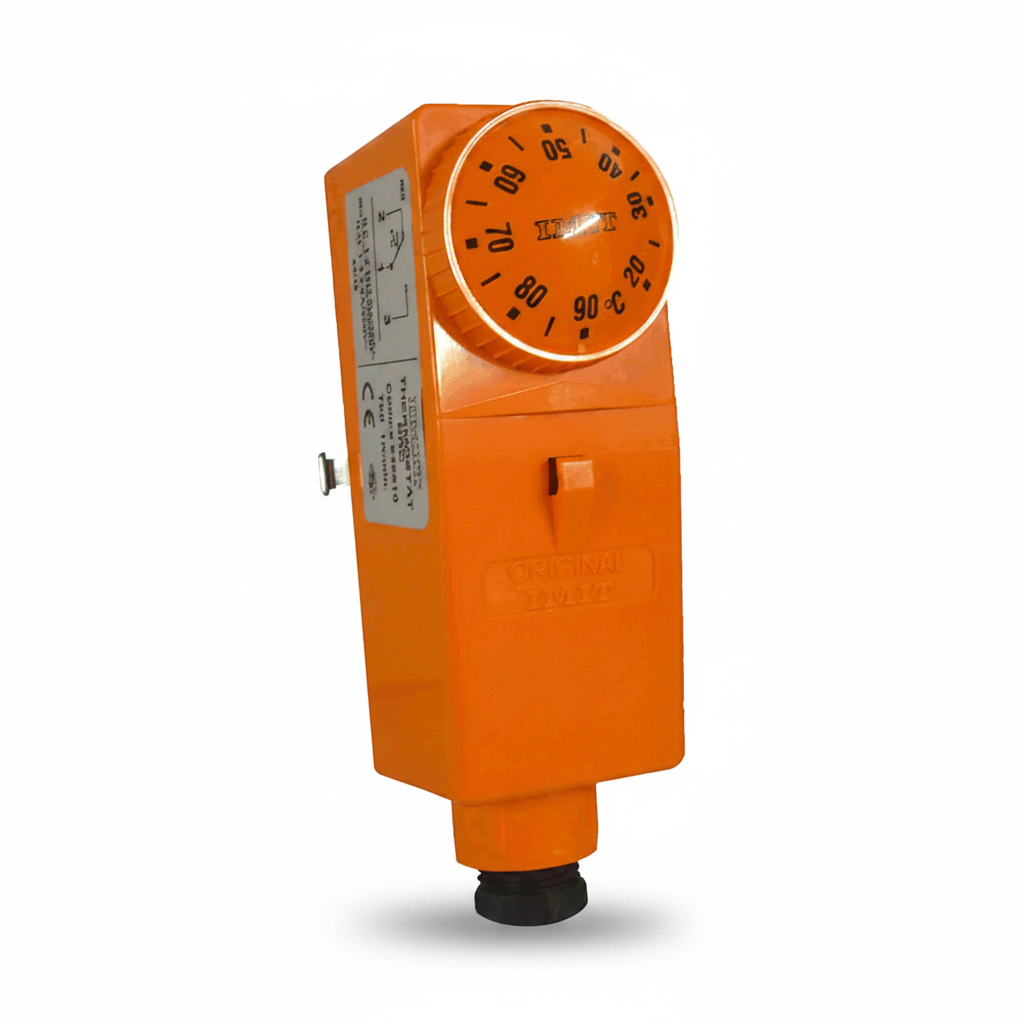

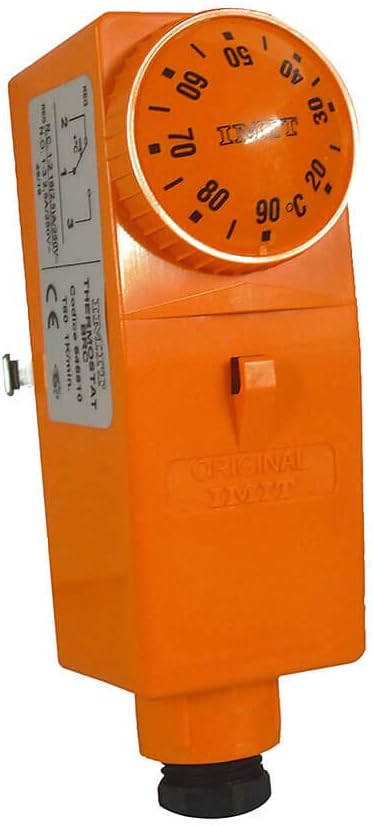

Part number: IM-BRC/545610 Bimetallic pipe thermostat with a temperature range: Adjustment range: 20 – 90 °C Minimum temperature:+ 4 °C Maximum temperature:+ 6 °C Differential: 8 + 2 °C Thermal gradient: 1 °C/min Degree of protection: IP40 Contact rating:16 (4) A 250 V - 6 (1) A 400 Degree of protection (class):I Over voltage category II Rated impulsive voltage 4 kV Base Material: Galvanised Steel Function: Contact thermostat for pipe mounting Approvals:ENEC 03 – CE 0497
