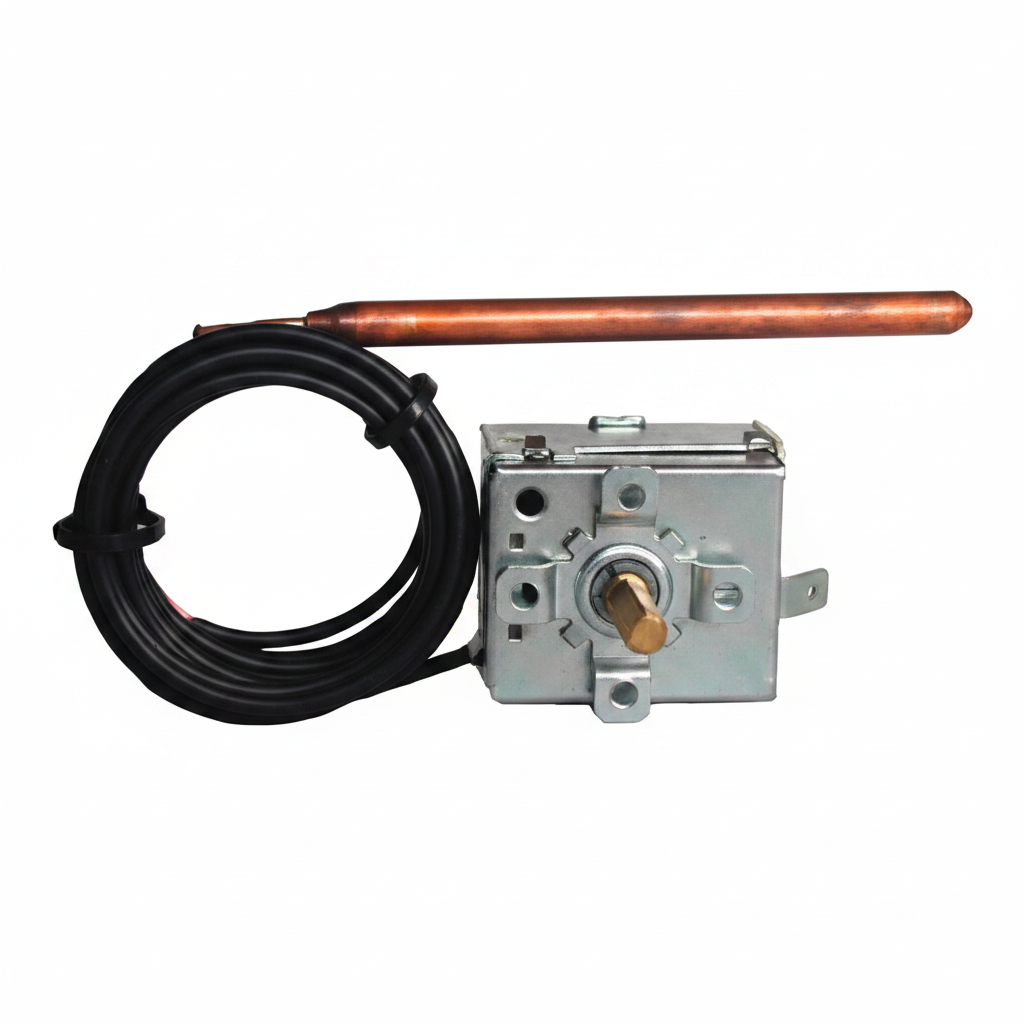

Imit TR2 541307 Adjustable thermostat 0/90°C Capillary 1500mm

The Imit TR2 541307 is an adjustable immersion thermostat designed for temperature control in heating systems, hot water cylinders, and industrial applications. With a 0–90°C range and a 1500mm capillary, it offers precise and reliable temperature sensing over extended distances.

Specifications

• Part No: 541307

• Temperature Range: 0–90°C

• Capillary Length: 1500mm

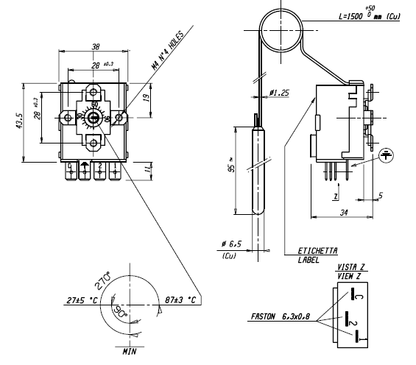

• Bulb Dimensions: 6.5 x 95mm

• Adjustment Type: Screw adjustment

• Contacts: 3

Features

• Adjustable thermostat suitable for a wide range of heating and hot water applications

• Long 1500mm capillary for flexible installation in tanks and cylinders

• 3-contact configuration for versatile switching arrangements

• Screw adjustment for accurate temperature setting

• Compact bulb design for easy insertion into immersion pockets

Download the Imit TR2 541307 spec sheet (PDF)
