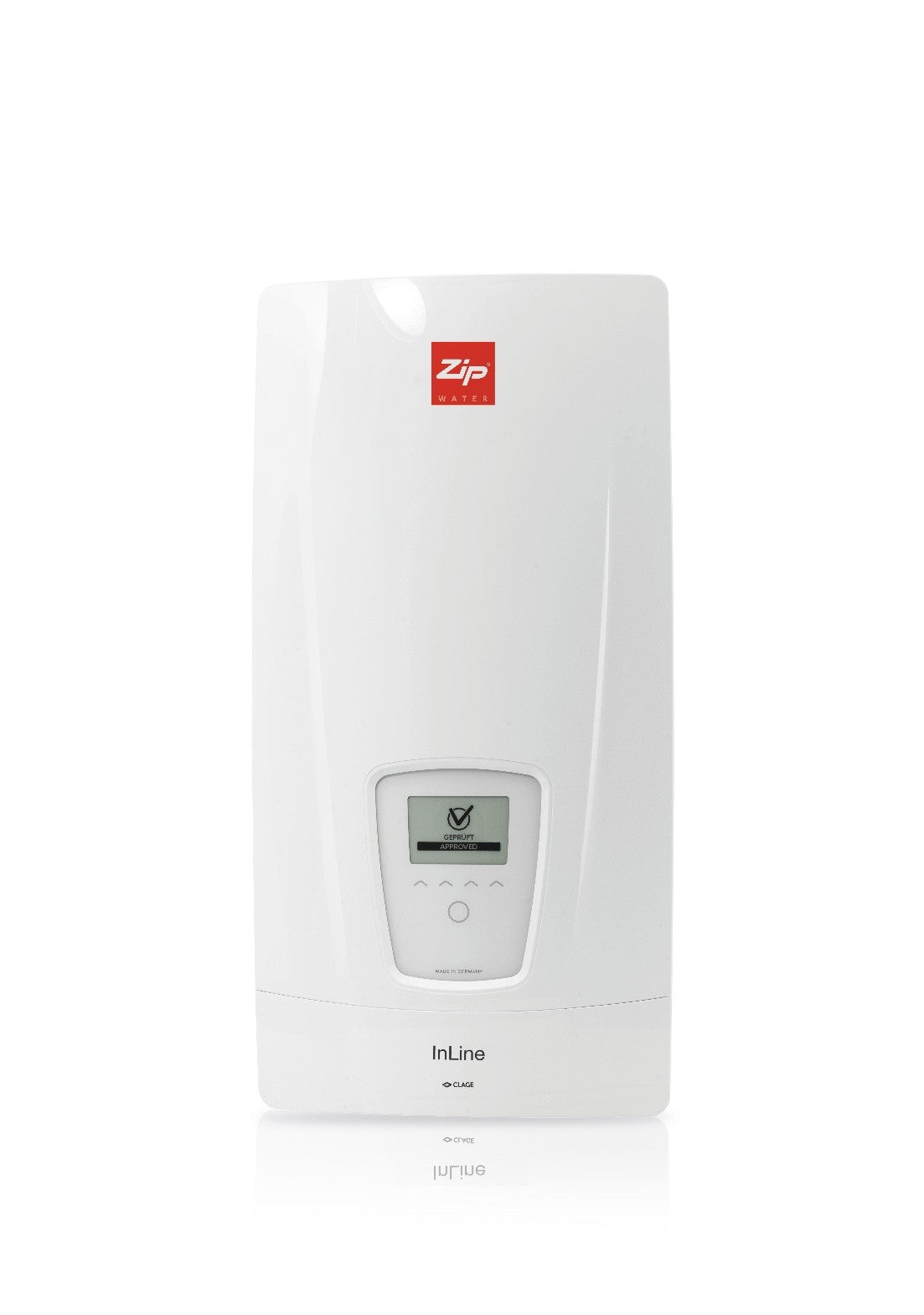

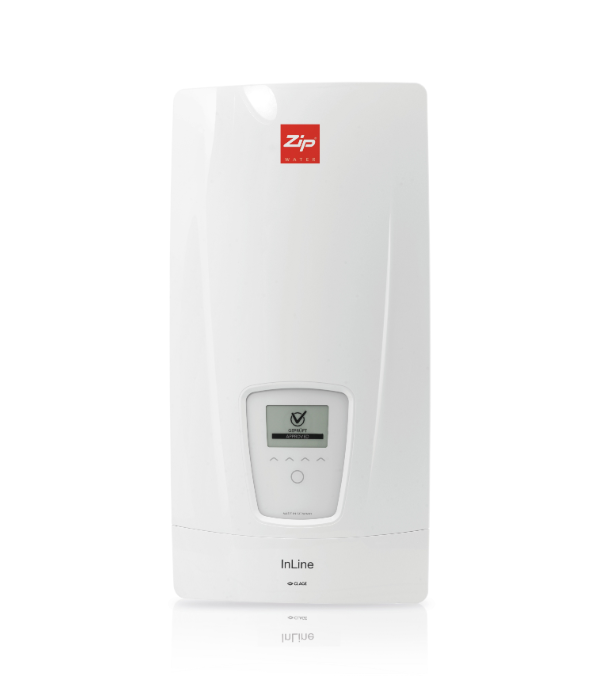

Zip InLine DEX12Next Inline Electronic Instantaneous Water Heater

The Zip InLine DEX12NEXT is a compact, single-phase electronic instantaneous water heater rated at 8.8 kW to 11.5 kW. It features zero standing heat loss, touch-sensitive temperature controls (20°C to 55°C), and a bare-wire heating system designed for single or multiple hot water outlets. Suitable for commercial and residential use.

Technical Specifications

• Power Rating: 8.8 kW – 11.5 kW @ 230V AC (38A – 50A)
• Dimensions (W x D x H): 239mm x 96mm x 468mm
• Water Connection: 1/2" BSP
• Minimum Water Pressure: 2 bar
• Maximum Inlet Temperature: 25°C
• Temperature Range: Adjustable between 20°C – 55°C
• Energy Rating: ErP Class A
• Approvals: WRAS, CE, UKCA
• Warranty: 1 year on-site parts and labour

Key Features

• Bare-Wire Heating System: Instant hot water in under two seconds with zero standing heat loss.
• Precise Temperature Control: Maintains accurate outlet temperature despite fluctuations in voltage and water pressure.
• Touch-Sensitive Controls: Set outlet temperature between 20°C and 55°C directly on the front panel.
• Two Power Settings: Power rating selected at time of installation — 8.8 kW or 11.5 kW.
• Single-Phase Supply: Standard 230V AC hardwired connection — no specialist supply required.
• Multi-Outlet Capable: Supplies hot water to single or multiple outlets simultaneously.
• Compact Wall-Mounted Design: Slim profile fits neatly in cupboards, under sinks, or in plant rooms.
