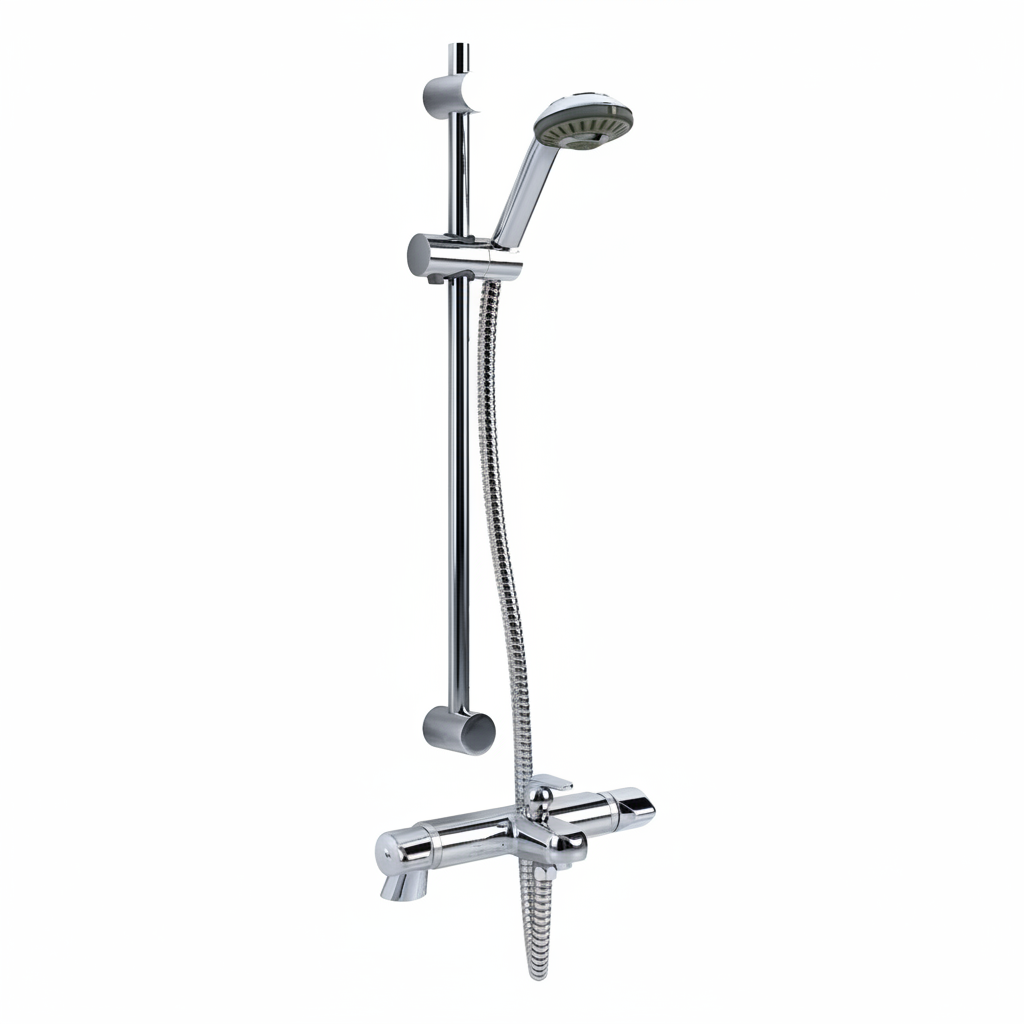

Inta 922245CP PLUS Thermostatic BSM with Flexible Slide Rail Kit & Deck Mounting Legs
Inta 922245CP PLUS Thermostatic BSM with Flexible Slide Rail Kit & Deck Mounting Legs
Couldn't load pickup availability
Share
Product no: 922245CP
The Inta Plus thermostatic bath shower mixer combines a clean, simple style with Inta’s thermostatic protection. Practical and elegant, the Plus range can be used to enhance the appeal of the bathroom setting whilst protecting those who use the bath or shower.shower valves - Plus Thermostatic Bath Shower Mixer.
Suitable for use with unvented supplies, combi boilers, gravity and mains pressure systems.
Thermal cartridge technology
Temperature stability of ± 2°C
Fail safe protection on both the hot and cold supplies
Operating pressure range of 0.2 to 5 bar
High flow rates
WRAS and TMV2 approved
|
Max Inlet Pressure (static) |
5 Bar |
|
Min Inlet Pressure (dynamic) |
0.2 Bar |
|
Max Inlet Temperature |
85°C |
|
Factory Pre-set Temperature |
38°C with max temp stop |
|
Inlet Connections |
G 3/4" F BSP (valve body) |
|
Outlet Connections |
G 1/2" F BSP |
|
Min Temperature differential to achieve hot or cold failsafe |
15°C |
