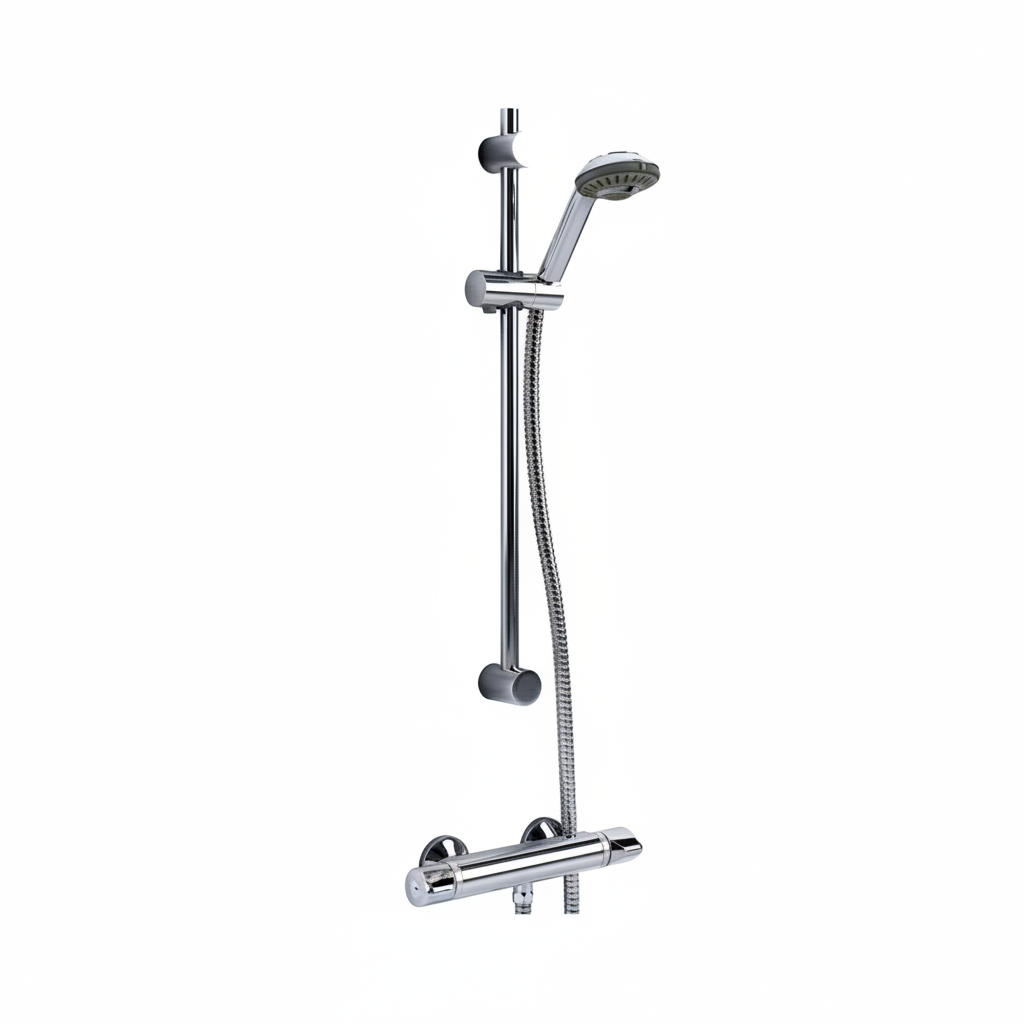

Inta 2001445cp Intaplus XS Exposed Bar Thermostatic shower c/w multi function handset and slide rail kit

A reliable Inta 2001445cp Intaplus XS Exposed Bar Thermostatic shower c/w multi function handset and slide rail kit designed for use with unvented supplies.

Model Number 2001445cp

The IntaPlus combines a clean, simple style with Inta’s thermostatic protection. Practical and elegant, the Plus range can be used to enhance the appeal of the bathroom setting whilst protecting those who use the bath or shower.

Suitable for use with unvented supplies, combi boilers, gravity and mains pressure systems.

Fail safe protection on both the hot and cold supplies

High flow rates

Technical Specification:

Min Temperature differential to achieve hot or cold failsafe 15°C

Approvals:

WRAs approved

TMV2 scheme Approved

• Thermal cartridge technology Temperature stability of ± 2°C
• Operating pressure range of 0.2 to 5 bar
• Max Inlet Pressure (static): 5 Bar
• Min Inlet Pressure (dynamic): 0.2 Bar
• Max Inlet Temperature: 85°C
• Factory Pre-set Temperature: 38°C with max temp stop
• Inlet Connections: G 3/4" F BSP (valve body)
• Outlet Connections: G 1/2" F BSP
