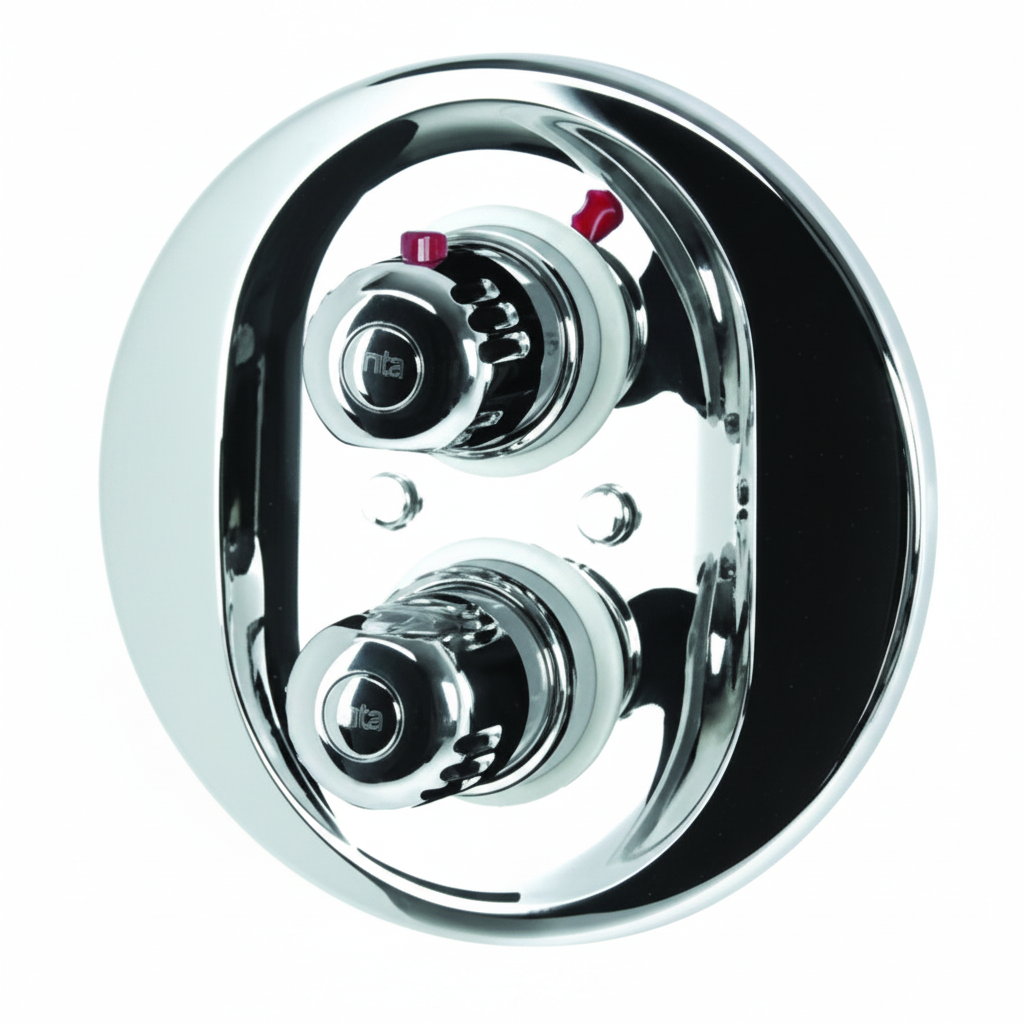

Inta 10025CP Ion Concealed Thermostatic Shower valve and trimset

The Inta range of showers has been designed to give you the best of both worlds. The Inta collection offers the ultimate balance between excellent performance and the latest designs to suit every bathroom.

Sequential control shower valve for combined control of temperature and flow

Suitable for use with unvented supplies, combi boilers, gravity and mains pressure systems.

Shower valve only, does not come with slide rail kit.

Single piece thermal cartridge technology

Failsafe on hot and cold supplies

Valve only without shower kit.

Approvals

WRAS approved

TMV2 & TMV3 scheme approved

Min. Temperature to achieve hot or

Performance:

Pressure drop (bars) 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

(L/min) 14 16 18 21 23 26 29 30 32 35

• Model no: 10025cp
• Factory set at 43 °C to prevent scalding
• Temperature stability of + 2 °C
• Operating pressure range of 0.1 to 10 bar
• Max Inlet pressure: 10 Bar
• Min Inlet pressure: 0.1 Bar
• Max Inlet Temperature: 85 °C
• Factory Pre-set temperature: 43 °C with max temp stop
• Inlet Connections: 15mm
• Outlet Connections: 2 x ½” BSP
• cold failsafe: 10 °C
• System installation: Unvented, Pressurised, Gravity and Combination boilers.
• Open outlet at 43 °C
