Intamix 40015MXCP Failsafe Thermostatic Mixing Valve with MX Service Valves.
Intamix 40015MXCP Failsafe Thermostatic Mixing Valve with MX Service Valves.
Share
Product no: 40015MXcp
Product Approvals: WRAS and TMV3 (DO8)
Temperature adjustment range: 30 – 50 °C
Temperature stability:+ 2 °C
Material: DZR Brass
Finish: Nickel plated DZR brass
Maximum Inlet Temperature: 85 °C
Maximum Working pressure: 10 Bar Static
Minimum Working pressure: 0.2 bar Dynamic
Inlet Temperature range: 52 °C – 65 °C Hot Supply 05 °C – 20 °C Cold Supply
D08 Working Pressure Ranges: 0.2 – 1.0 Low Pressure 1.0 – 5.0 High Pressure
Max Temp differential (mix to hot) for fail safe 10 °C
Maximum Pressure Inlet differential: 5:1

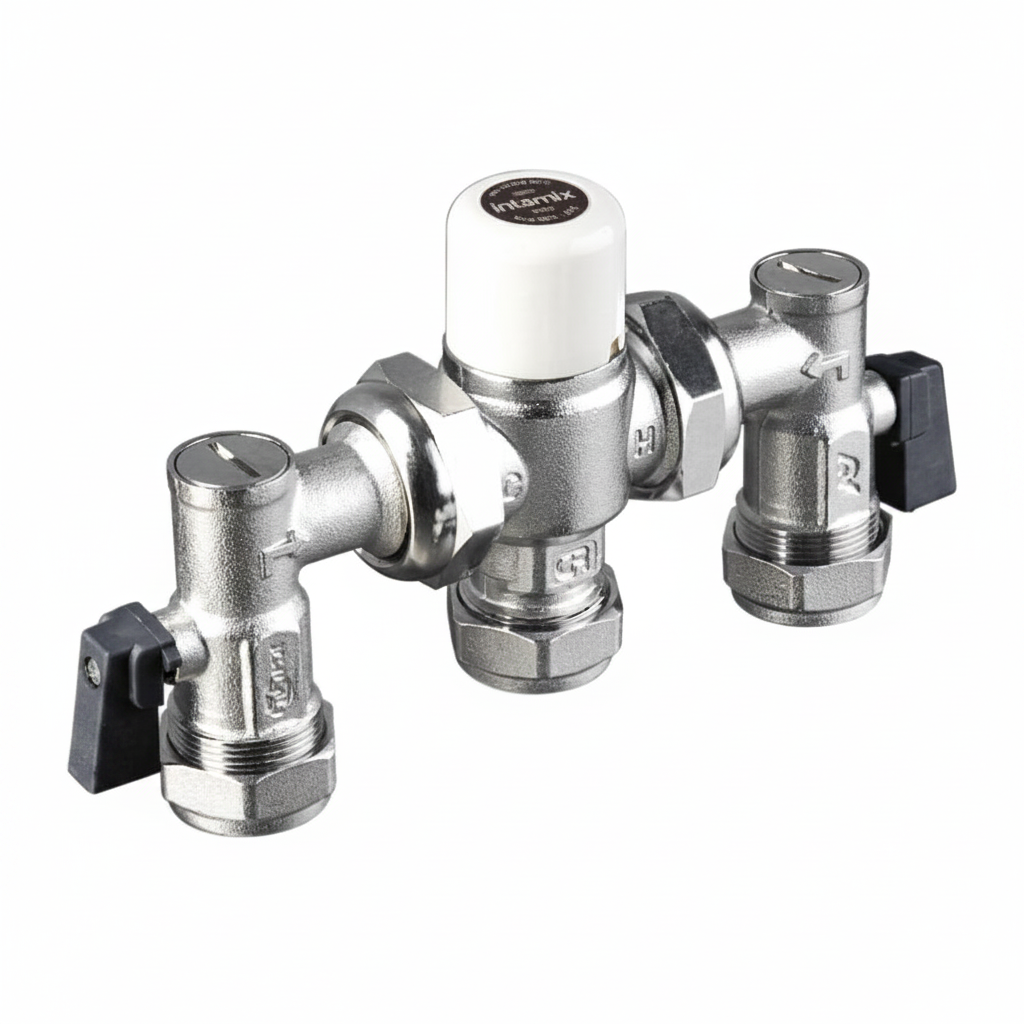

Intamix 15mm Mixing Valve c/w a pair of Intaball MX Service Valves CP
The Intatec range of thermostatic mixing valves is designed primarily for single outlet use. It delivers safe, blended hot water to taps, showers, bidets and other water outlets, making it ideal for use in hospitals, schools and leisure centres.
Intamix 15 and 22 has been specifically designed and manufactured to meet the requirements of: National Health Service Model Engineering Specification – Thermostatic Mixing Valves – Health Premises – DO8.
BS 7942:2000 – Thermostatic Mixing Valves for use in care establishments. The Intamix has been independently tested and approved by the TMV3 scheme as a type 3 valve under the requirements of the National Health Service – Model Engineering Specification – DO8.
The element that controls the temperature of the mixed water discharging from the valve works proportionally on both hot and cold water supplies in order to maintain the temperature of the mixed water discharged.
One valve to suit all applications
Cartridge construction
High flow rate
Low pressure drop
Specification
Complies with NHS Estate D08 & bs 7942 : 2000 (TMV3)
Robust and reliable
Highly resistant to scaling
Anti tamper proof head
Low installation time
Chrome plated
WRAS approved
Buildcert approved
Complies with BS EN 1111 & BS EN 1287 (TMV2)
