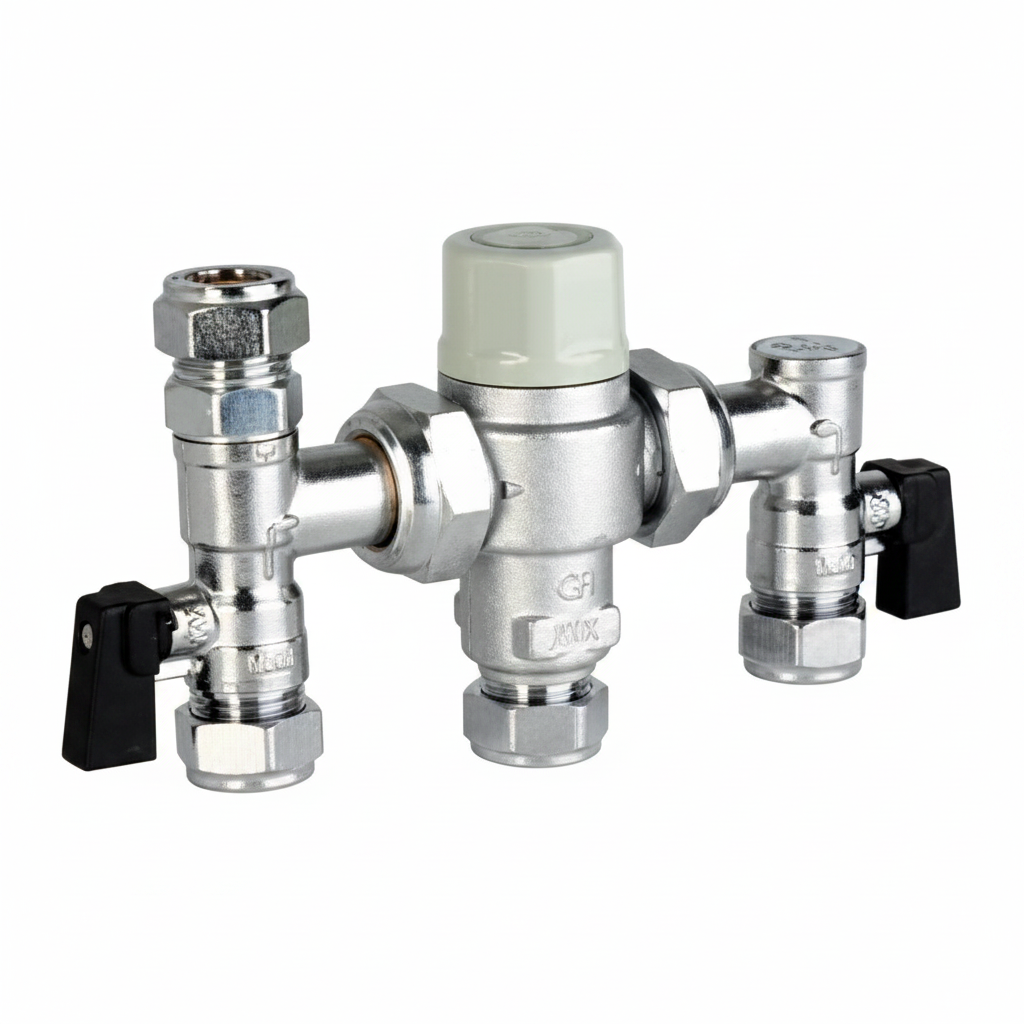

Intamix 400MS15cp Failsafe Mixing Valve c/w a pair of Intaball MX Valves CP

The Intatec range of thermostatic mixing valves is designed primarily for single outlet use. It delivers safe, blended hot water to taps, showers, bidets and other water outlets, making it ideal for use in hospitals, schools and leisure centres.

Intamix 15mm has been specifically designed and manufactured to meet the requirements of: National Health Service Model Engineering Specification – Thermostatic Mixing Valves – Health Premises – DO8.

BS 7942:2000 – Thermostatic Mixing Valves for use in care establishments. The Intamix has been independently tested and approved by the TMV3 scheme as a type 3 valve under the requirements of the National Health Service – Model Engineering Specification – DO8.

The element that controls the temperature of the mixed water discharging from the valve works proportionally on both hot and cold water supplies in order to maintain the temperature of the mixed water discharged.

Specification – DO8.

The element that controls the temperature of the mixed water discharging from the valve works proportionally on both hot and cold water supplies in order to maintain the temperature of the mixed water discharged.

One valve to suit all applications

Cartridge construction

High flow rate

Low pressure drop

Specification

Complies with NHS Estate D08 & bs 7942 : 2000 (TMV3)

Robust and reliable

Highly resistant to scaling

Anti tamper proof head

Low installation time

Chrome plated

WRAS approved

Buildcert approved

Complies with BS EN 1111 & BS EN 1287 (TMV2)

• Product no: 400MS15cp

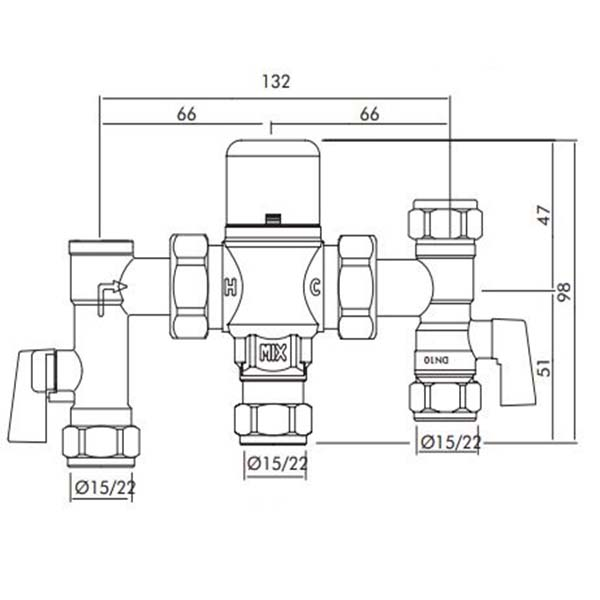

• Size: 15mm with Top Connector
• Temperature adjustment range: 30 – 50 °C
• Temperature stability: + 2 °C
• Maximum Inlet Temperature: 85 °C
• Maximum Working pressure: 10 Bar Static
• Minimum Working pressure: 0.2 bar Dynamic
• Inlet Temperature range: 52 °C – 65 °C Hot Supply 05 °C – 20 °C Cold Supply
• D08 Working Pressure Ranges: 0.2 – 1.0 Low Pressure 1.0 – 5.0 High Pressure
• Max Temp differential (mix to hot) for fail safe 10 °C
• Maximum Pressure Inlet differential: 5:1
