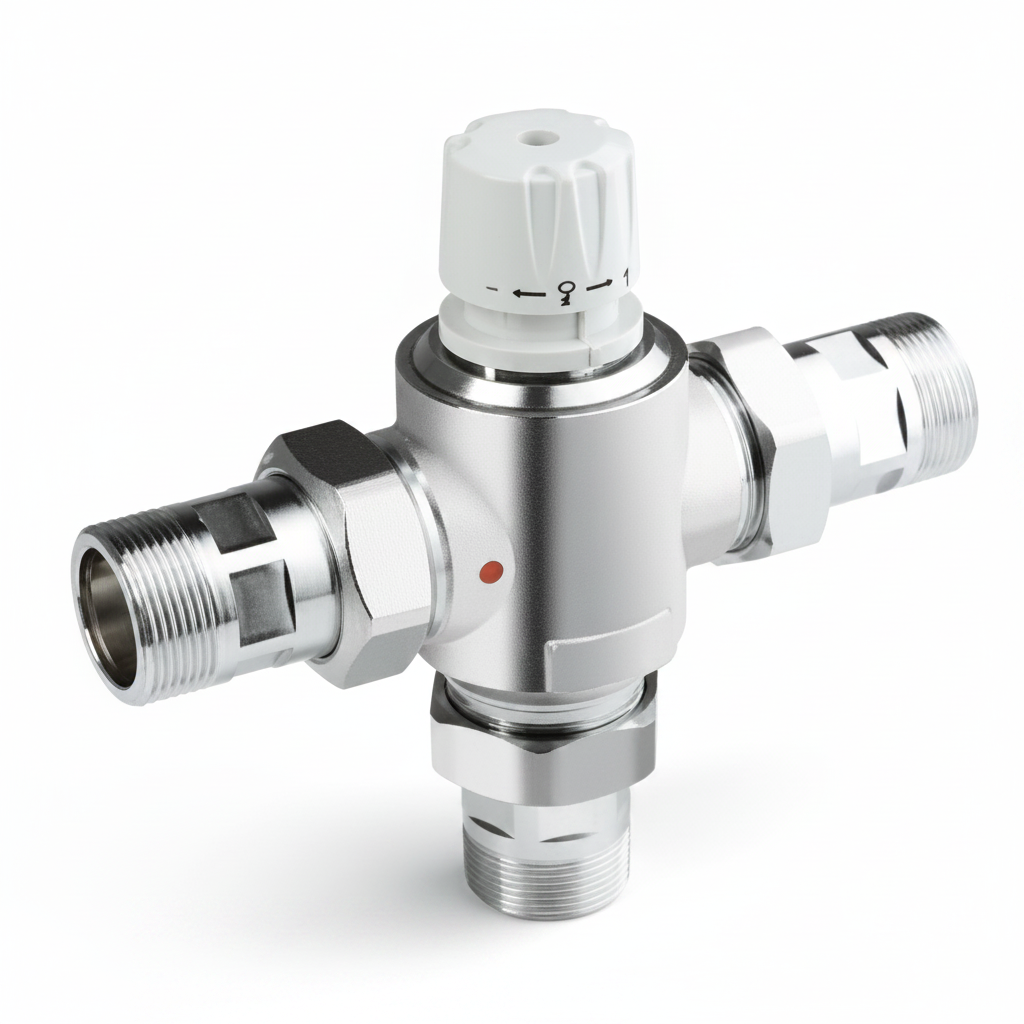

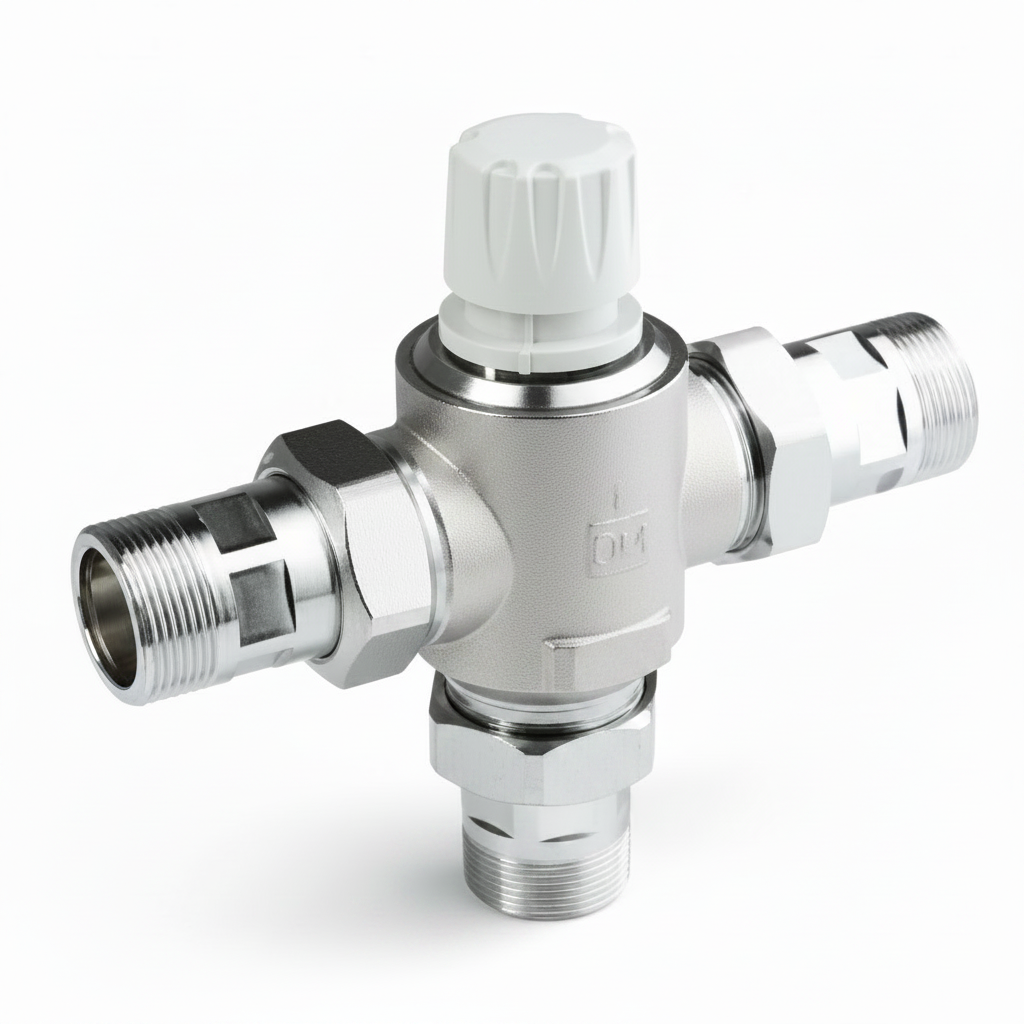

Intamix Pro 60006CP 1 1/2" Pro Thermostatic Group Mixing Valve

Screwed Iron with check valves

This valve does not offer TMV 3 protection.

Model: IN60006CP

Frequently used applications: Commercial, Leisure

Designed for use in applications where a high volume of water is required at the outlet, such as shower blocks and centralised mixing. Providing a high volume of water at a stable temperature.

Thermostatic protection.
Tamper proof head
Single piece thermostatic cartridge construction
Automatic shut off in the event of hot or cold water failure
High flow rate, low pressure drops
Adjustable outlet temperature

Connection: 1 1/2” screwed iron with check valves

Materials:

Body: DZR Brass
Cartridge: DZR Brass
Shutter: DZR Brass
Spring: Stainless Steel
Seal components: EPDM

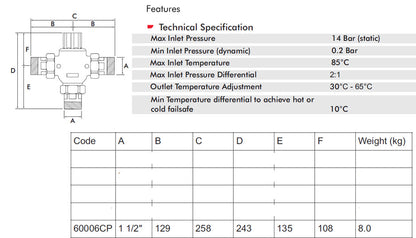

Temperatures and pressures:

Outlet Temperature range settings: 30 – 65 °C
Temperature stability: + 2 °C
Maximum inlet temperature: 85 °C
Minimum flow rate to ensure stable temp:0.083l/s – 5l/m
Accuracy:+ 2 °
Minimum Temperature to achieve failsafe: 10 °C
Max. working pressure:14 bar – static 5 bar – dynamic
Max. inlet pressure ration (H/C or C/H) 2:1

Tamperproof head
Single piece thermostatic cartridge construction
High Flow rate
Adjustable Outlet temperature
Accessories available
Automatic shut off in the event of hot or cold water failure
Temp. stability + 2 °C

Function:

The Intamix Pro is designed for use in applications where a high volume of water is required at the outlet such as shower blocks and centralised mixing. Providing a high volume of water at a stable temperature the IntaMix Pro reflects the quality of the Intatec range of total washroom solutions.

Approvals: Antiscald
