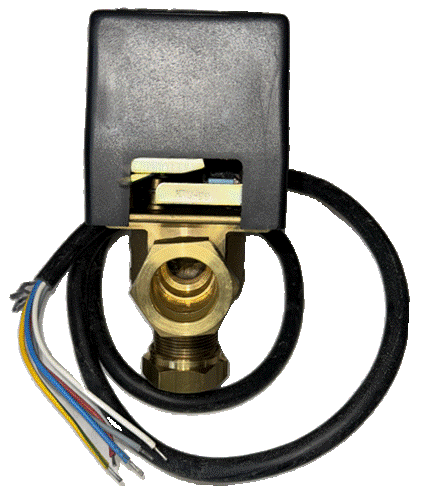

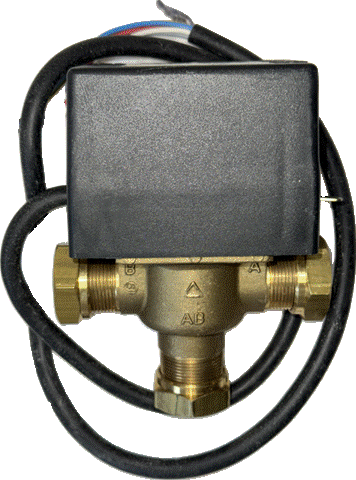

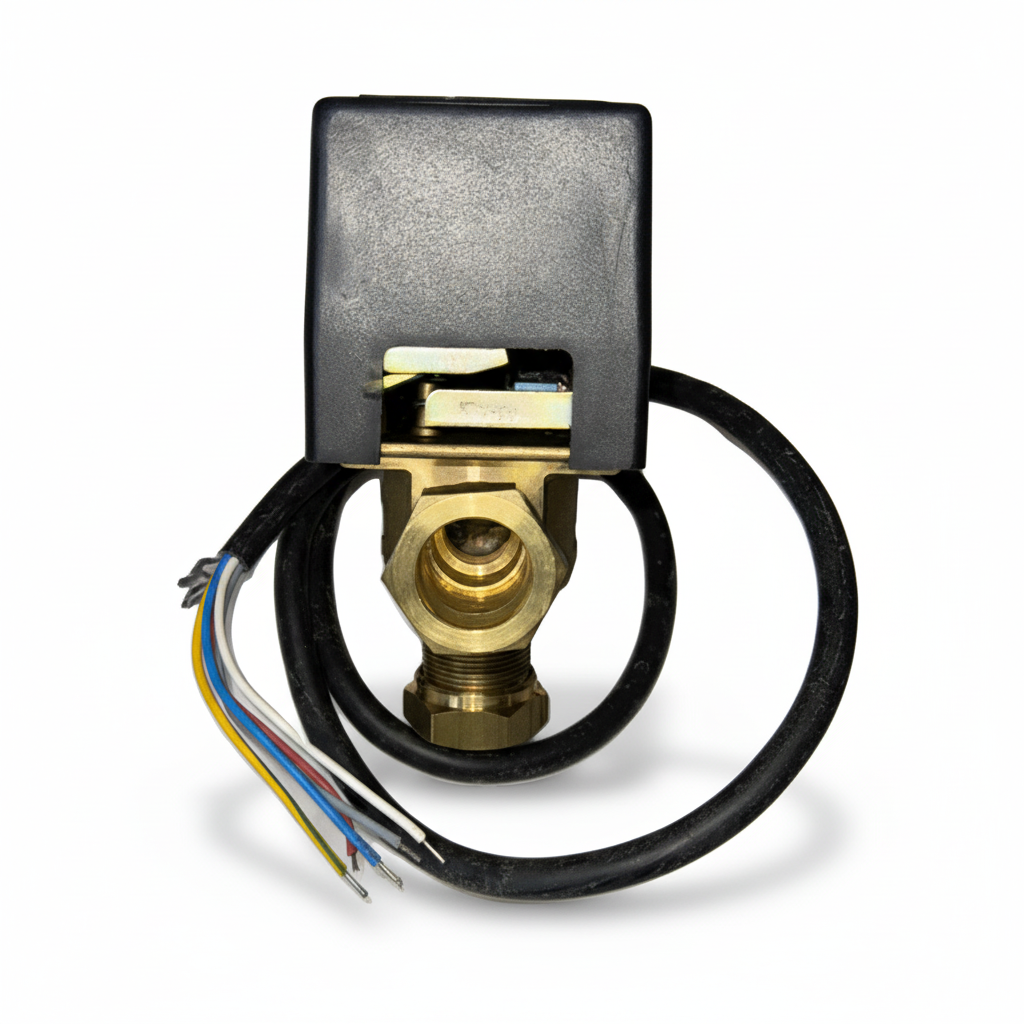

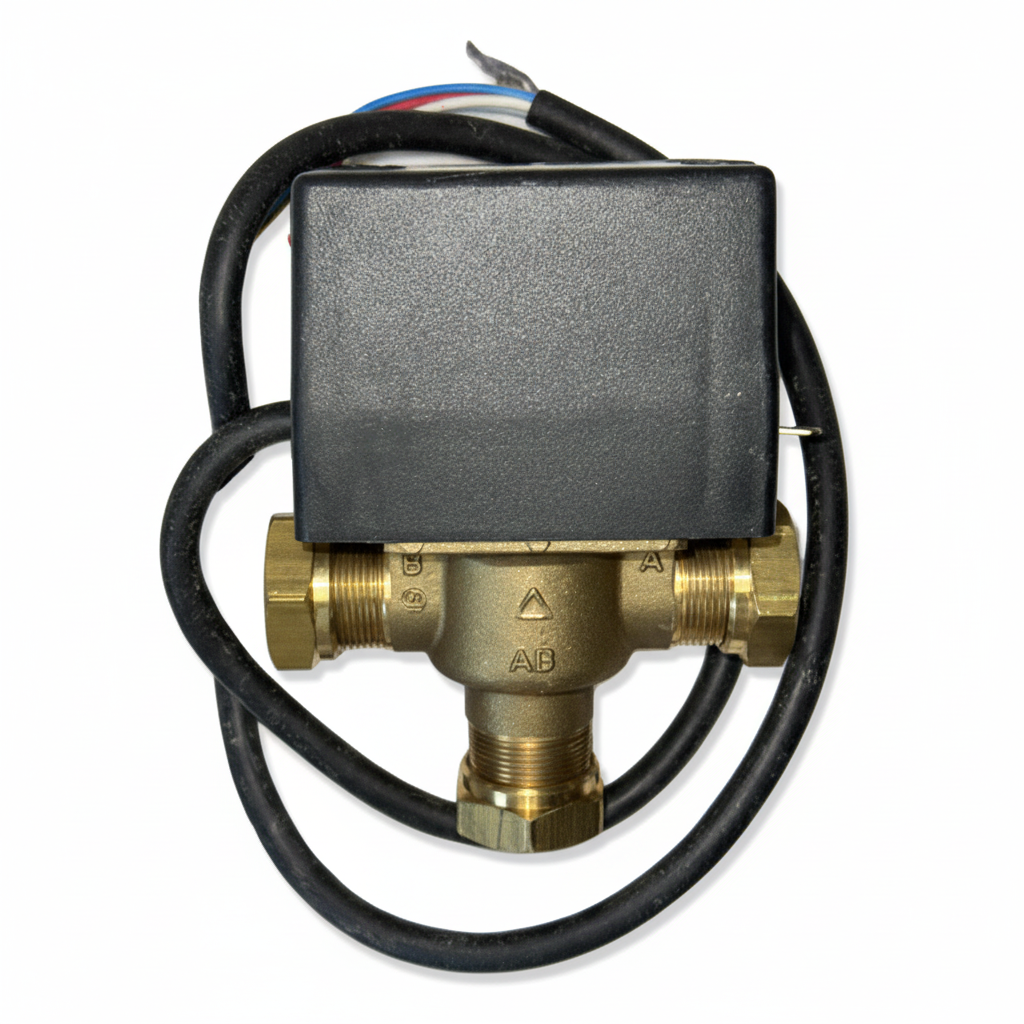

MUT 22mm 3 Port Mid position motorised valve

MUT Meccanica Tovo 22mm 3-Port Mid-Position Motorised Valve 230V

Product No: SF20B-EBMID | Manufacturer: MUT Meccanica Tovo | Download Spec Sheet (PDF)

The MUT Meccanica Tovo SF20B-EBMID is a 22mm 3-port mid-position motorised valve operating at 230V, designed for use in central heating and hot water systems. The mid-position function allows simultaneous heating and hot water demand to be met, making it ideal for Y-plan heating systems.

Technical Specifications

• Product No: SF20B-EBMID
• Manufacturer: MUT Meccanica Tovo
• Size: 22mm
• Fitting Type: Compression
• Voltage: 230V, 50Hz, 0.04A
• Maximum Operating Temperature: 110°C
• Maximum Ambient Temperature: 60°C
• Maximum Differential Pressure: 1.57 kg/cm²
• Maximum Static Pressure: 10 kg/cm²

Key Features

• 3-port mid-position operation for Y-plan heating systems
• Allows simultaneous central heating and domestic hot water demand
• 22mm compression fittings for straightforward installation
• 230V operation compatible with standard UK heating controls
