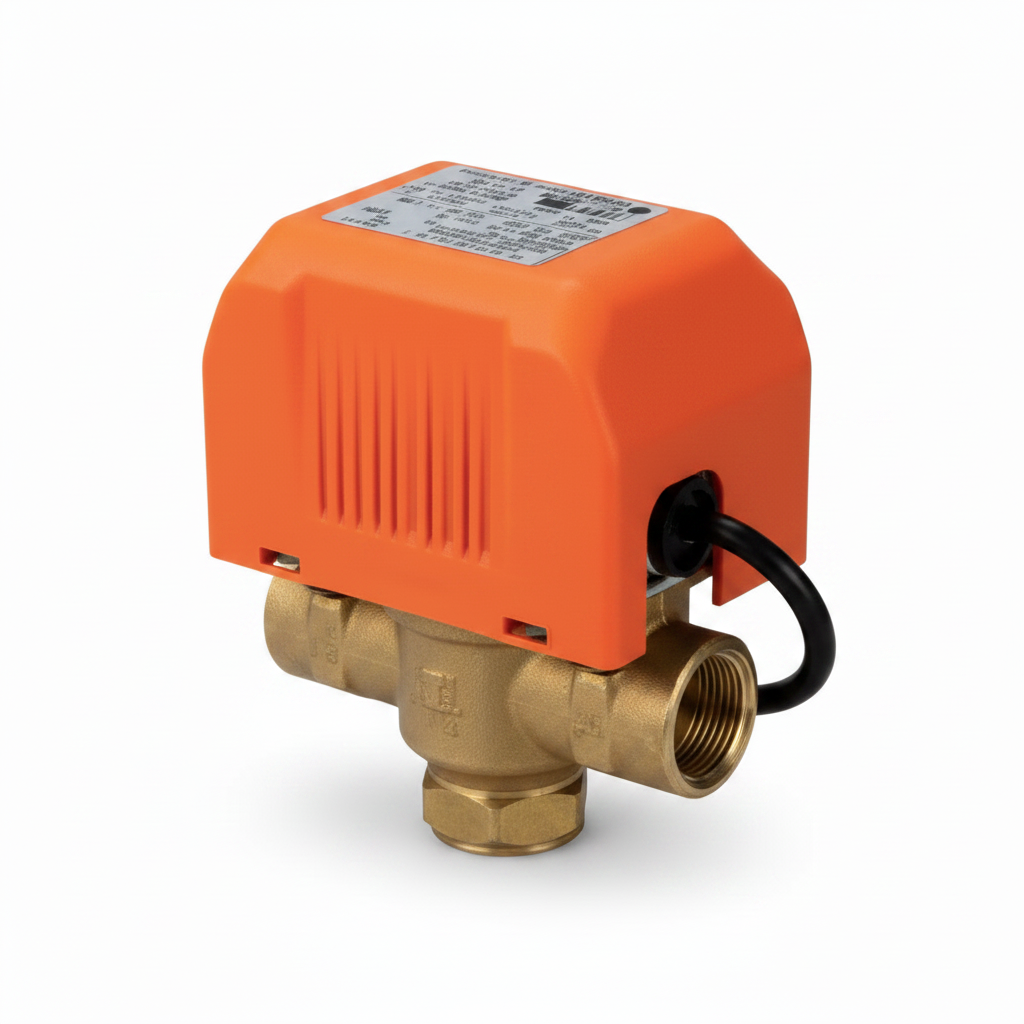

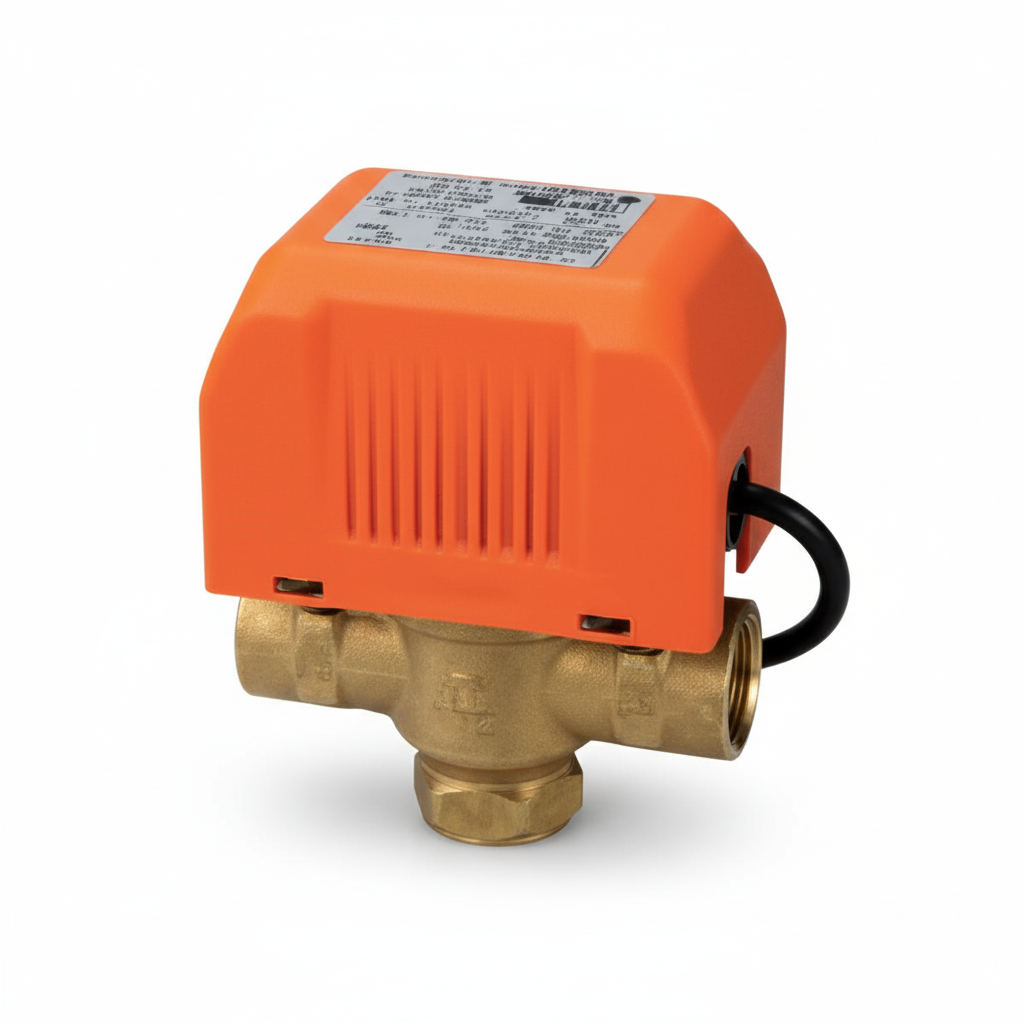

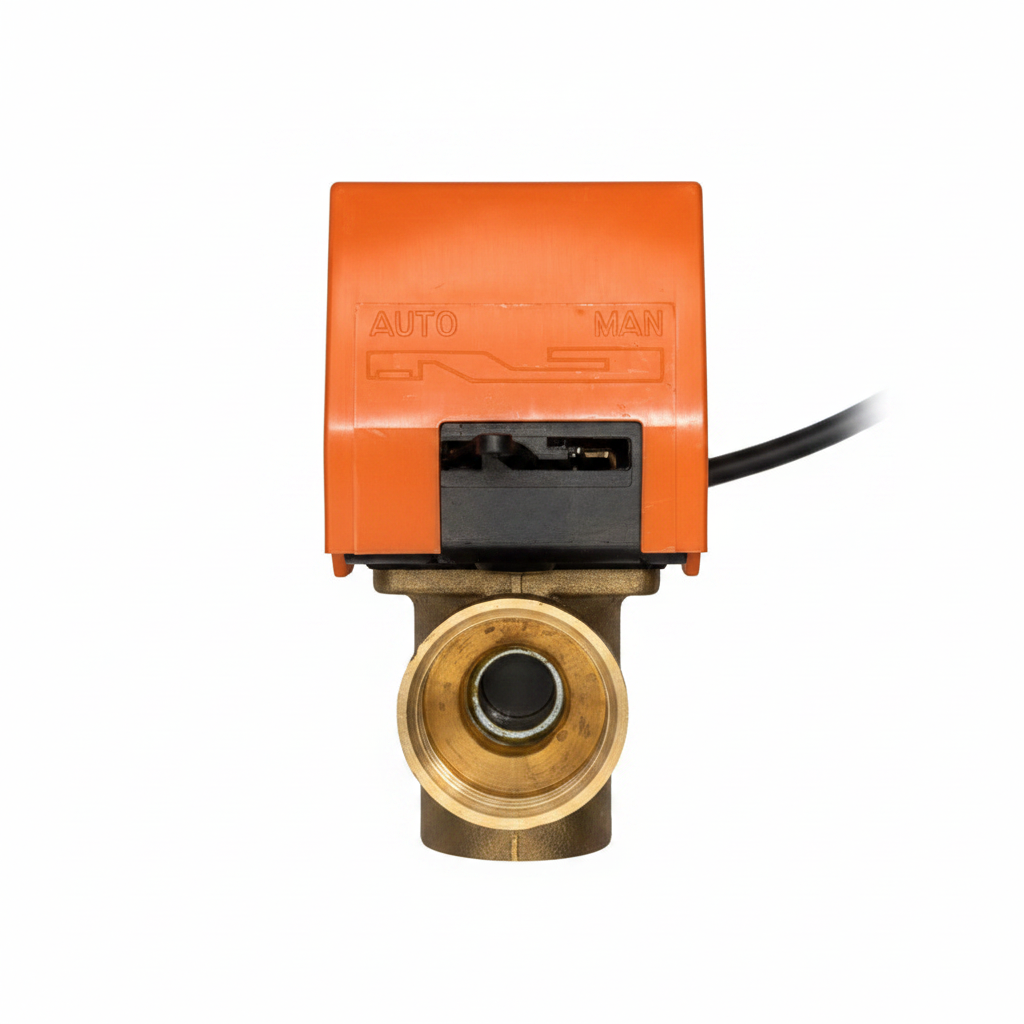

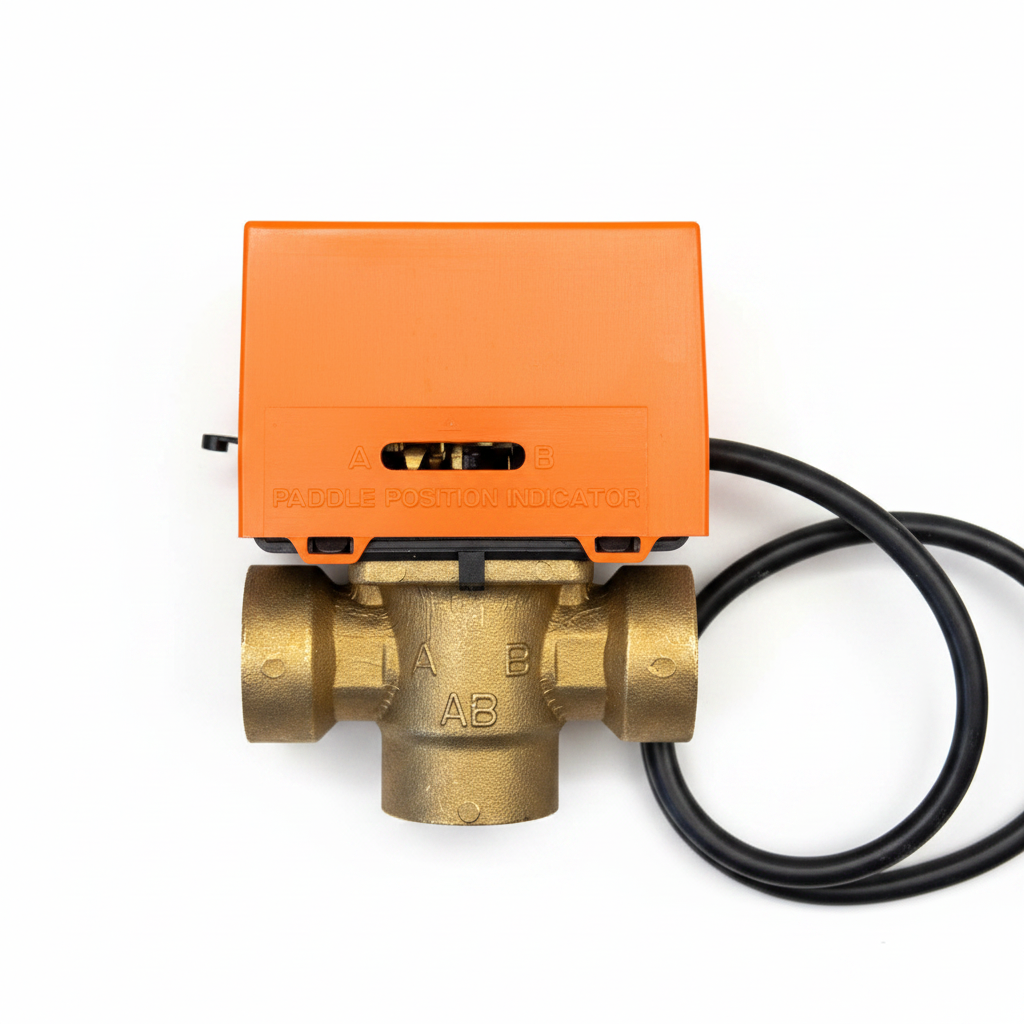

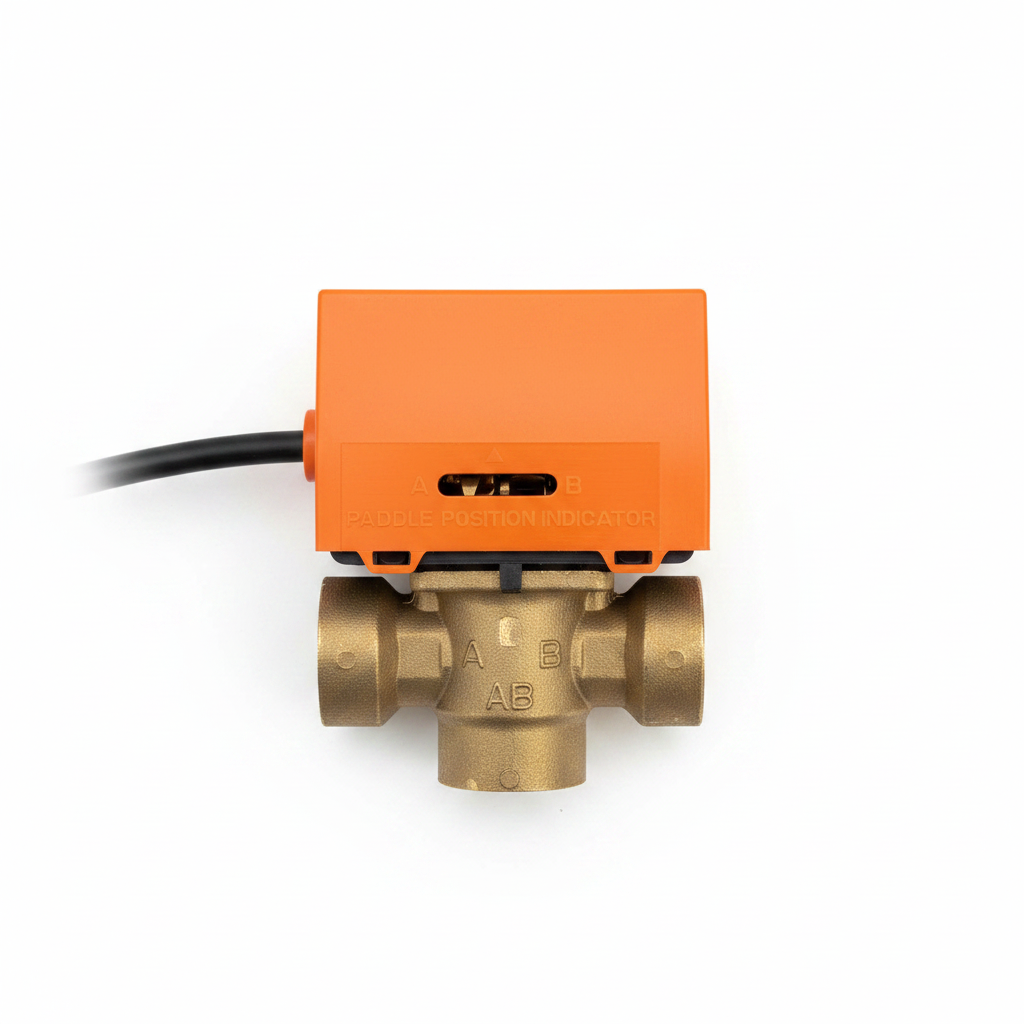

Orkli 40322200 1" Solar Motorised Valve with microswitch

The Orkli 40322200 is a 1" 3-port solar motorised valve with micro switch, designed for use in solar system primary circuits. Spring return with normally closed position in A, suitable for use with up to 50% water/glycol mix and high-temperature solar applications.

• Product No: 40322200

• Size: 1", 3-port

• Motor voltage: 230V 50Hz

• Cable: 1 metre fitted, 5 wires (4 + 1 earth)

• Valve: Normally closed in A, spring return

• Fluid temperature range: -20°C to 160°C

• Max. ambient temperature: 50°C

• Max. static pressure: 10 bar

• Suitable fluids: Water/glycol mix up to 50%

• Application: Solar system primary circuits

• Compliance: EU Directive 89/336/EEC
