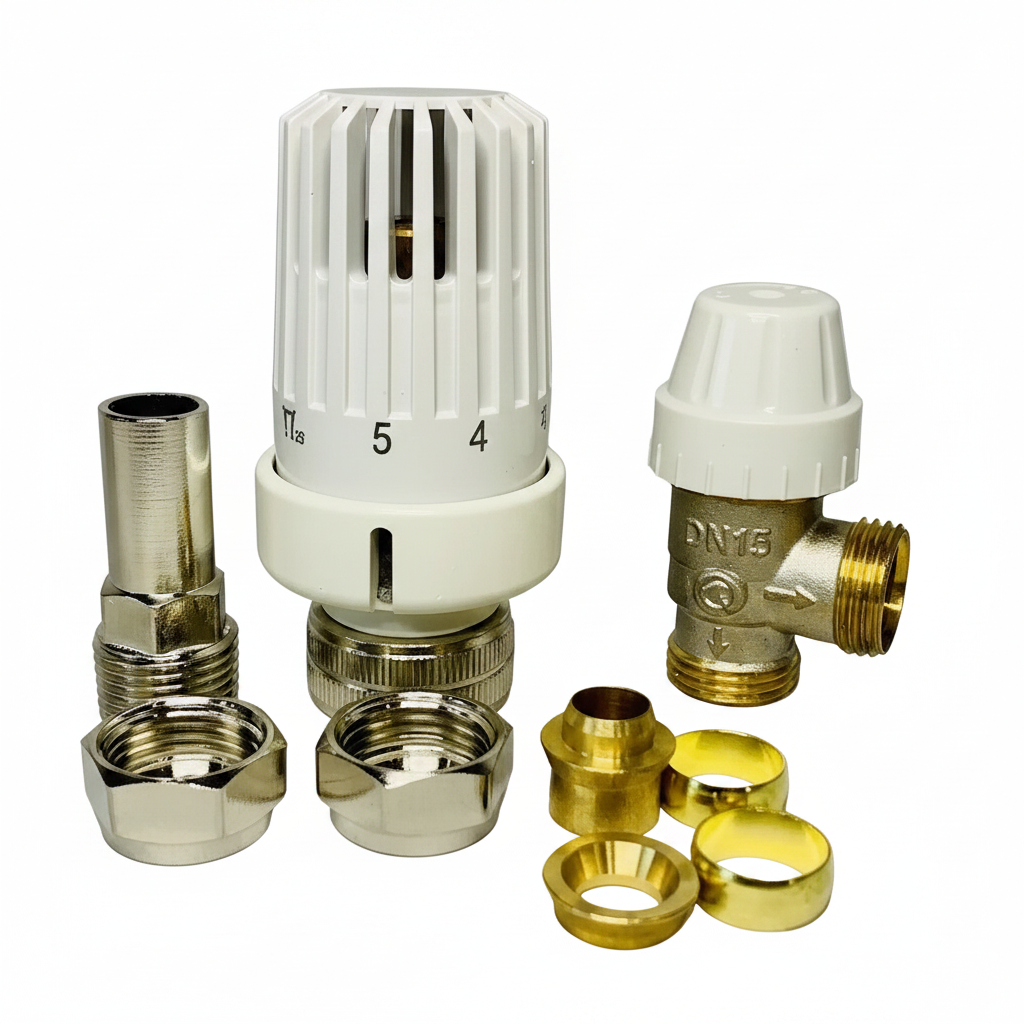

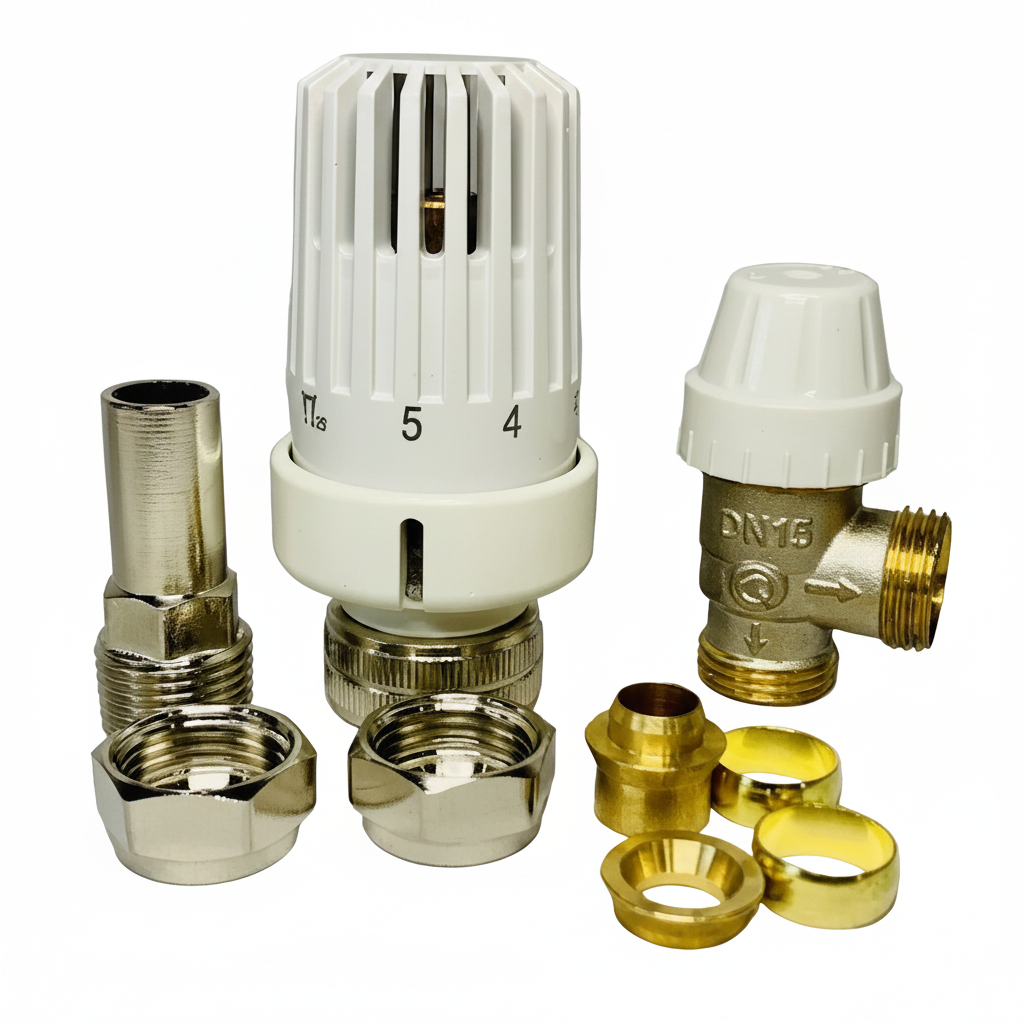

Orkli 68018 15/10mm Thermostatic Radiator Valve

Part ref: 68018

Size: 15/10mm

Orkli thermostatic radiator valve with extension piece. Self regulating TRV fitted to hot water system radiators, to control room temperature based on flow of hot water to radiator. Working range of 5 °C – 27 °C with frost setting.

Valve body: forged brass and manufactured to EN 12165

Handle Locking device
White colour head
Working range 5 °C – 27 °C

Includes frost setting Liquid fill element Extendable tail piece

Temperature sensor type: Wax
Antifrost position: 9 °C
Maximum service pressure: 10 KG/cm2
Maximum differential pressure: 0.6 bar
Maximum water temperature: 120 °C
Response time:< 30 min
Stock temperature:< 50 °C
Valve body: forged brass following EN 12165
Actuator materials: Stainless steel
