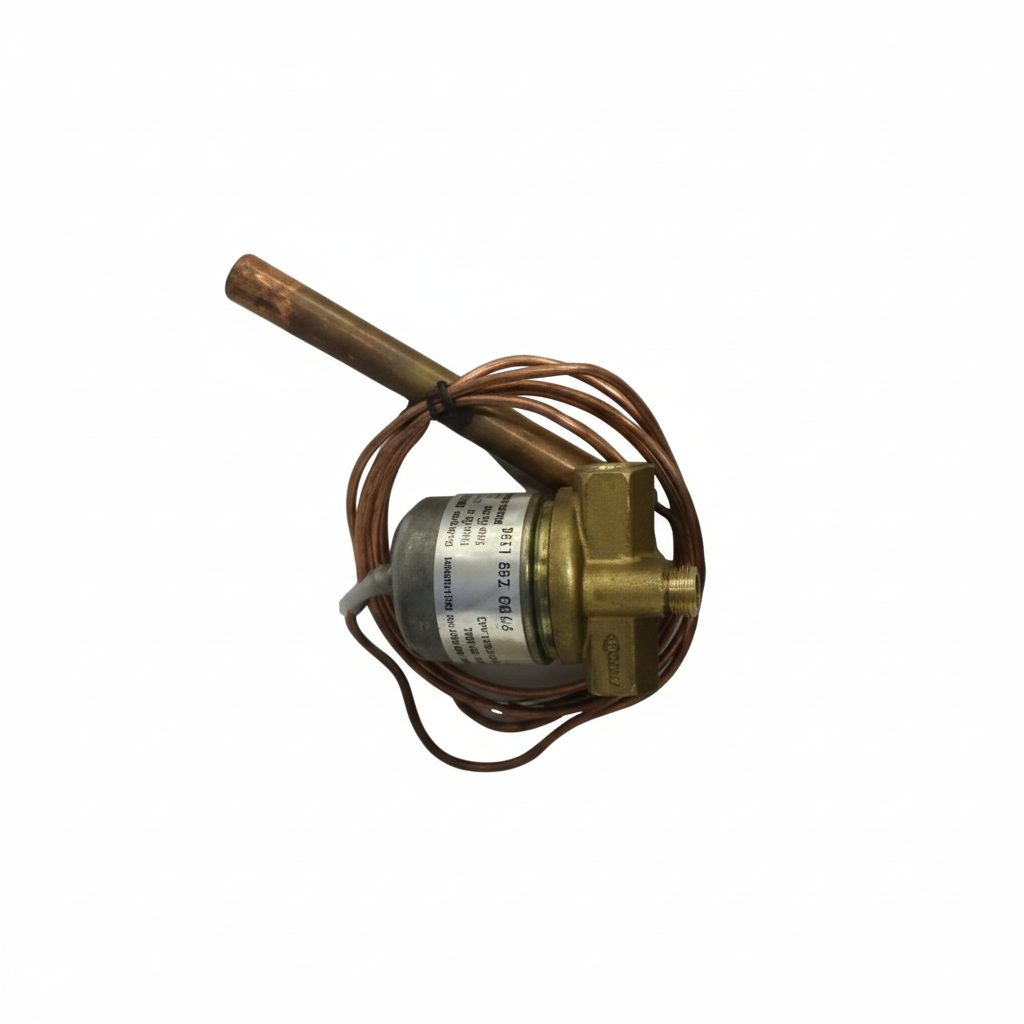

Peerless PTFV C90 X 1.5M 95 Degree Fire Valve with 1.5 M Capillary OFTEC Apprvd.

A reliable Peerless PTFV C90 X 1.5M 95 Degree Fire Valve with 1.5 M Capillary OFTEC Apprvd. designed for lpg up to 3 kw in addition to class c (kerosene) and class d (distillate grade).

Product no:

The Peerless PTFV is remote sensing as required by OFTEC. The valve is suitable for LPG up to 3 KW in addition to Class C (kerosene) and Class D (distillate grade) petroleum fuel. Flow

Connections

BSP, internal taper thread.

The TFV automatically shuts off the fuel supply during a fire by using a heat-sensitive, remote-acting capillary sensor. The sensor, often a capillary tube containing a liquid, heats up during a fire, causing the liquid to expand and release a vacuum. This release allows a spring-loaded mechanism to activate, which then closes the valve, stopping the flow of fuel to the appliance.

Non electric fail safe valve, manual reset (with sturdy brass reset button)

Approvals

For use with Natural Gas, LPG, Butane, Propane, Oil & Kerosene

• BSRIA and OFTEC approved
• OFCERT Licence No 0973110201 (90 degree) and 0973010302 (65 degree)
• Complies with E101 1998 and BS5410 parts one and two
• 100 litres per hour at 2m head.
• Flow: 100 litres per hour at 2m head.
• Connections: BSP, internal taper thread.
