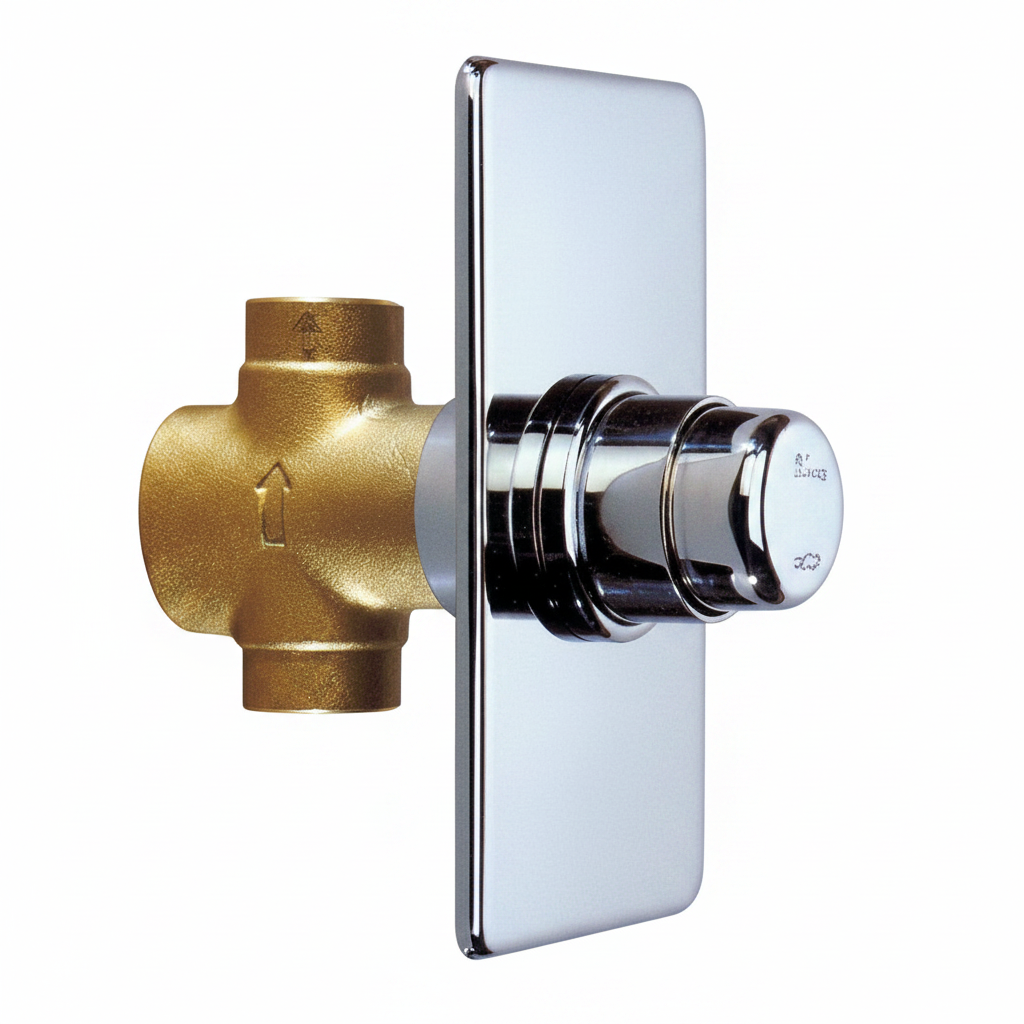

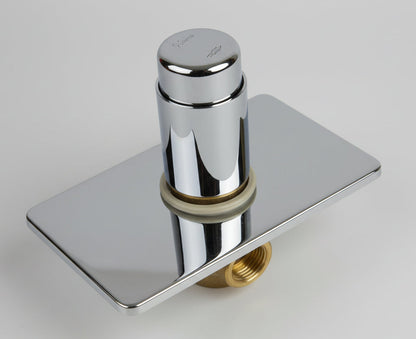

River R750 Concealed Push Button Shower Valve - Chrome Plated

Product no: R750

Concealed Timed Flow control

Timed flow controls are designed for use with thermostatic mixing valves.

They provide a full flow service to both shower and hand washing facilities for a fixed period of time before automatically shutting off. This saves water and heating costs in unsupervised areas making it ideal for installation in schools, sports and leisure facilities, hospitals, camping sites, commercial premises and other unsupervised areas. In addition, the valves are easy to operate for users with reduced mobility.

Simple operation
Close automatically
Economical
Push Button operation
Vandal Resistant
Highly Polished Chrome
Brass Body
Concealing Plate

Max Operating pressure: 9 Bar static
Min Operating pressure: 0.5 Bar dynamic
Max Inlet Temperature: 65 °C
Timed flow (standard): 30 secs.

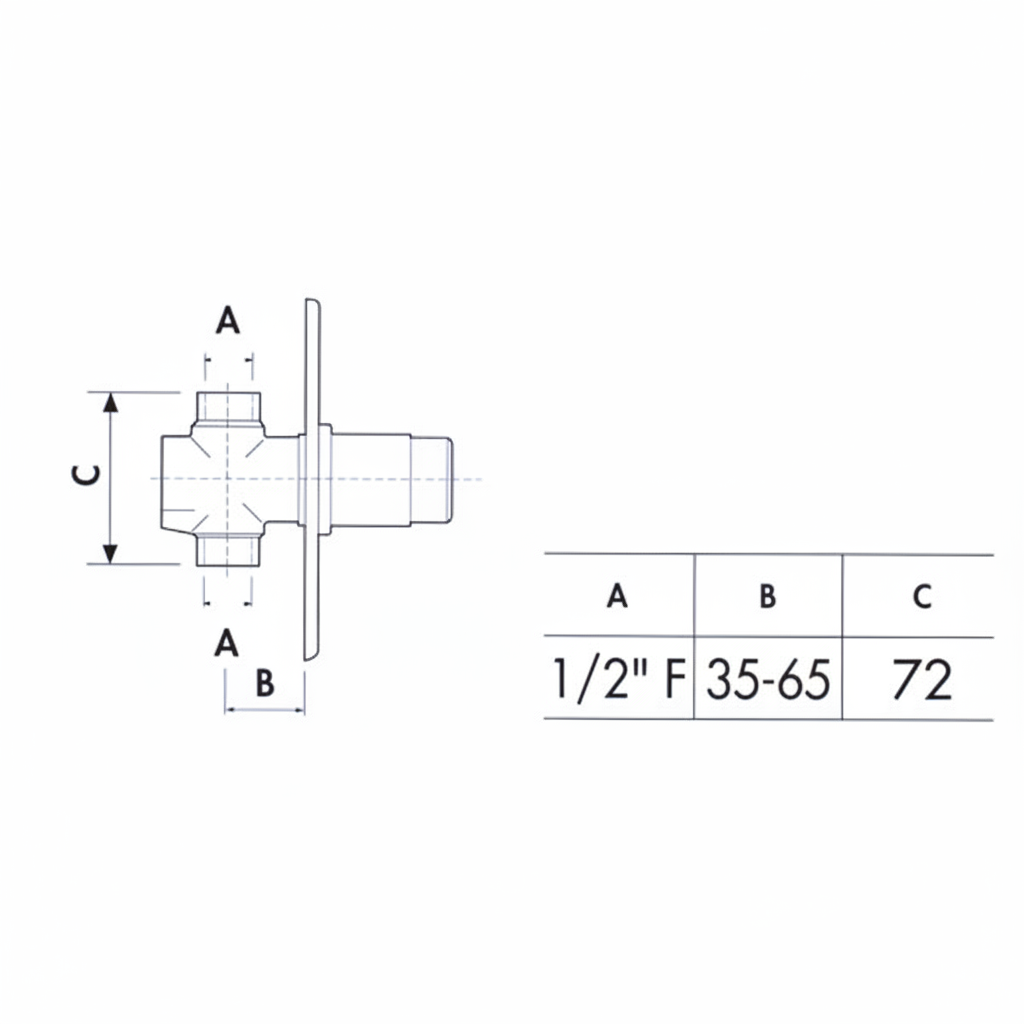

Inlet connections: 1/2"
Outlet connections: 1/2"

Ensure pipework is free from debri and grit prior to installation with this valve.  If dirt flows into the valve is can cause problems and dribbles.
