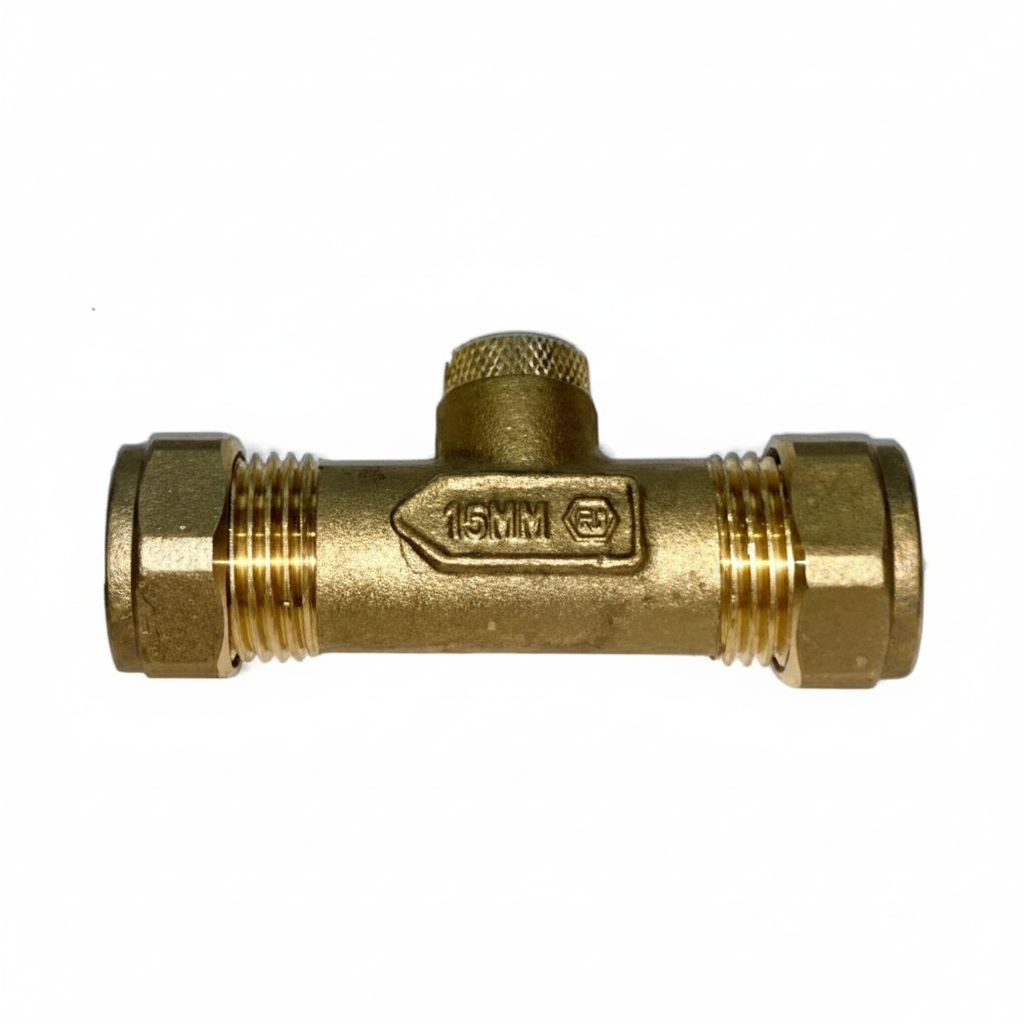

RWC Flow230001 DZR Brass double check valve (non return valve)

Size: 15mm

Product no: flow230001

Working pressure: 0.1 bar min
16.0 mar bax
Max temperature: 85 degrees C

Materials:

Body: DZR brass
Seals: EPDM
Check cartridge: Acetyle copolymer
Spring: S'steel steel

Lightweight, WRAS approved DZR brass single check valves for Class 2 contamination risks.

Features & Benefits

Single check valves protect against the risk of back-flow and back-syphonage contamination. Integral test point for monitoring correct functioning of the downstream check valve.

Allows high flow rate with minimum pressure drop, giving good flow ratges.

Compact lightweight construction for easy installation.
Ideal for all Class 2 contamination risks as per Water Supply (water fittings) Regulations 1999.

Approvals: WRAS

Function

To be used for prevention of back-flow and back-syphonage contamination risks in accordance with the Water Supply (water fittings) Regulations 1999. Manufactured from DZR brass the WRAS approved this range is supplied unplated.
