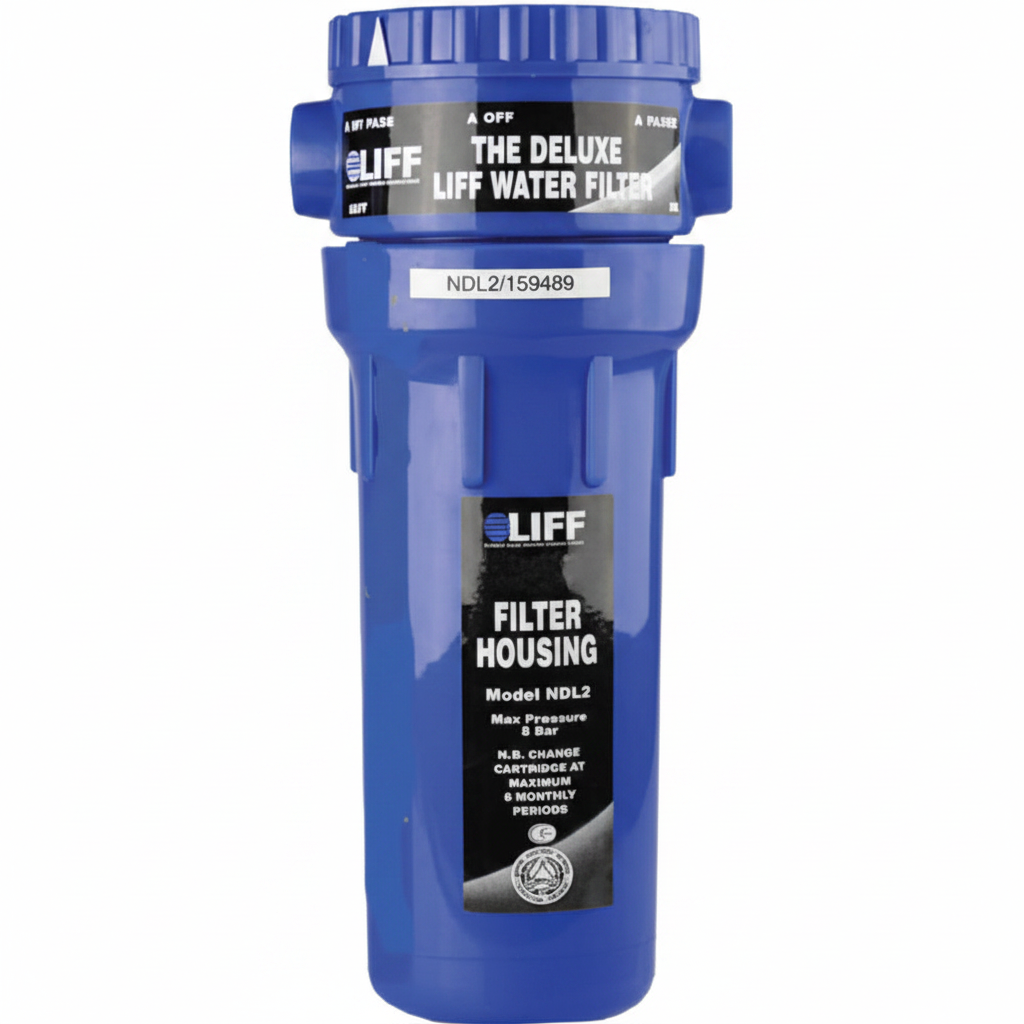

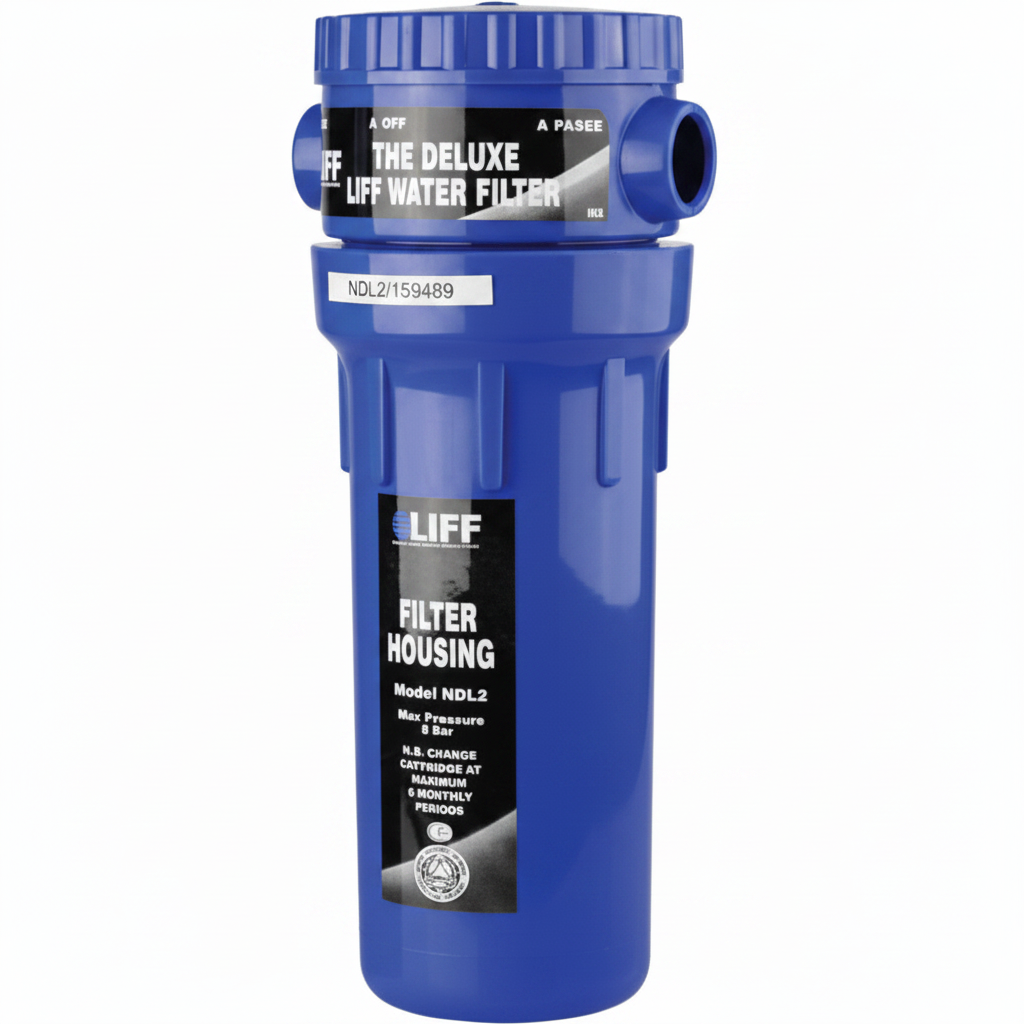

Liff/CULLIGAN/BWT NDL2 Domestic Filter Housing

Product no: NDL-2

Heavy duty construction for longevity
Built in water bypass and isolation facility
Suitable for all 10" filter cartridges
3/4" BSP inlet and outlet with matching nipples
Can be used in series to create multi - filter solutions
Filter bowl spanner included

This filter is designed for installations on cold water drinking lines, in frost free areas.

The NDL2 is filter housing has a 3-way bypass valve in the head of the housing to make filter changes easier, and allows cartridges to be exchanged without turning off the mains water supply and an air release mechanism to relieve water pressure. Fit on cold water feeds only, in accordance with local bylaws and regulations. Protect from freezing. Supplied with two male-to-male nipples, the installer needs to supply two female compression fittings to allow the housing to be connected to adjoining pipework.

Primary purpose

The filtration of incoming mains water supply. The NDL2 houses individual Culligan/Liff/BWT cartridges and can be used for varying levels of filtration depending on the filter cartridge used.

Features and Benefits

• Single appliance or whole house protection
• Suitable for a wide range of cartridges
• Offers whole house or single appliance protection
• Suitable for a wide range of cartridges
• Fixing bracket available separately
• Cartridges can be changed without turning off the mains supply
• No need to install isolating valves on the inlet/outlet

Max flow 23 litres/min (empty housing)
Min pressure 2 Bar
Max pressure 5 Bar
Max water temp 25 oC
Diameter: 135mm
Height 336mm
Inlet / outlet 3/4" BSP female thread
Built-in pressure relief valve 3 way valve in head: Off-Filter and Bypass
