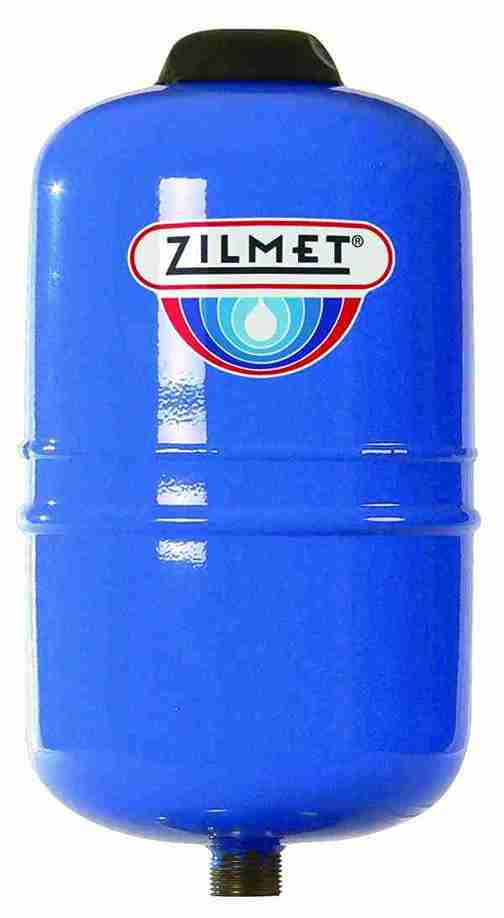

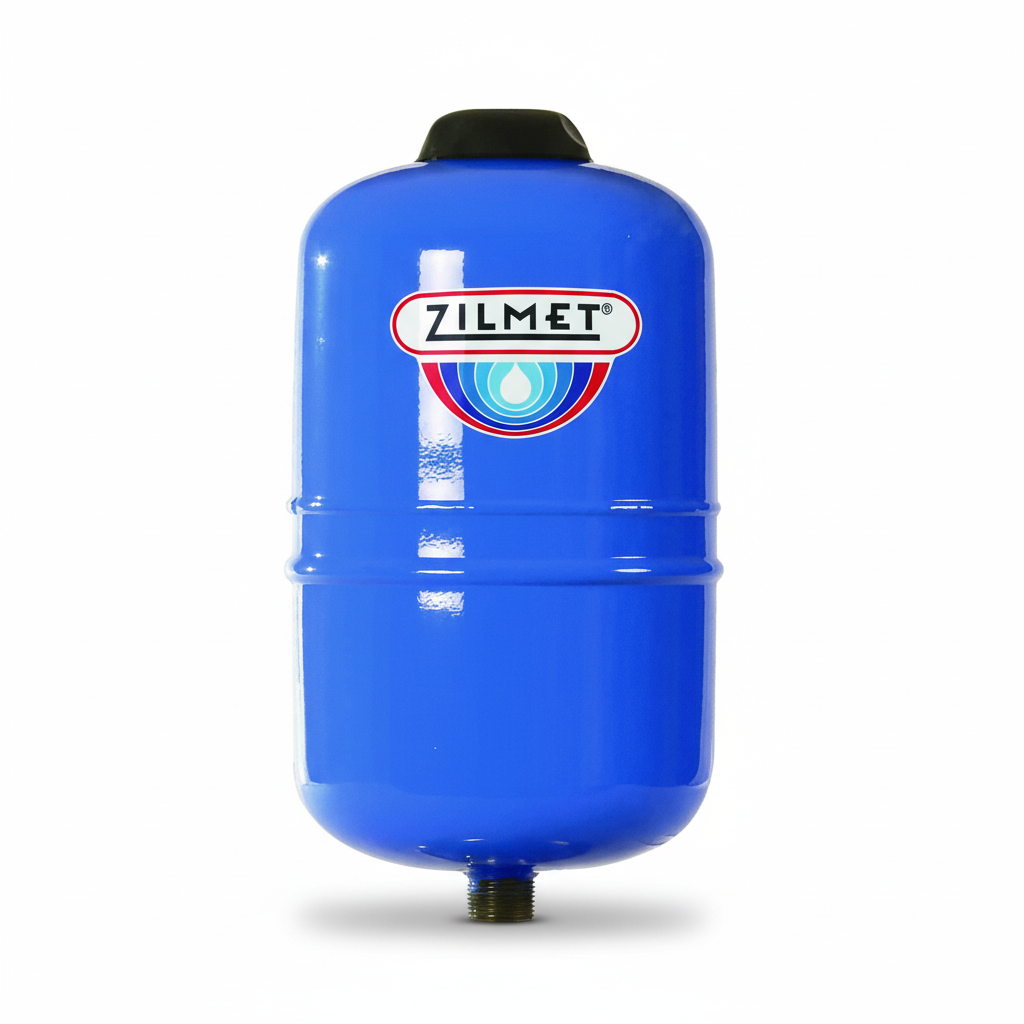

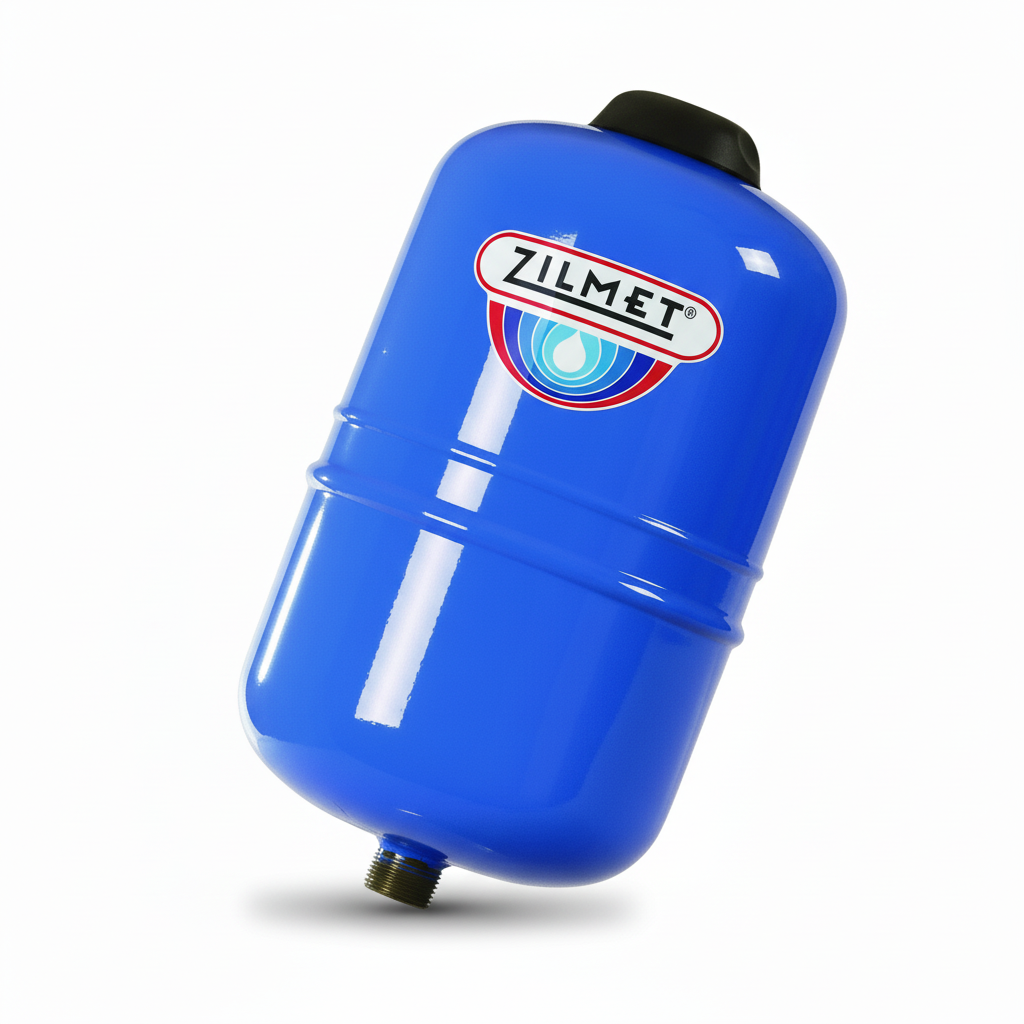

Zilmet 11A000822 8 Ltr Water Pro Potable Expansion Vessel
Zilmet 11A000822 8 Ltr Water Pro Potable Expansion Vessel
Share
Part No: 11A000822 ZI300008WH
Zilmet Water-pro Expansion vessel for sanitary hot water with fixed potable water butyl membrane and internal epoxy coating.
Connection Size: 3/4"
Dimensions: D-200 x H-280mm
Max. operating pressure: 10 bar
Max. operating temperature: 70
Factory pre-charge: 3 bar
Vessel Capacity: 8 Litres
Connection: 3/4" NPT Stainless Steel
Shell: Carbon Steel
Membrane: Butyl
Colour: Blue
Diameter: 200mm
Height: 280mm
The Water-Pro range provides a compact design with a seamless diaphragm that inhibits bacterial growth. They are certified according to PED 97/23/EC, WRAS/WRc, ACS, IAMPO and NSF. Stainless steel connection.
Features:
This compact expansion tank for sanitary hot water with fixed potable water butyl membrane and internal epoxy coating.
This tank has stainless steel fittings.
MIG welding eliminates any sharp cutting edges inside the tank.
The shape of the membrane is designed to avoid any water stagnation and therefore the growth of any bacteria.
External expoxy-polyester coating: no rusting.
