Zip Water
Zip ES3NC 2.8 Kw Electronic Instantaneous hand wash Non concussive tap
Zip ES3NC 2.8 Kw Electronic Instantaneous hand wash Non concussive tap
Regular price
£518.63 GBP
Regular price
£700.85 GBP
Sale price
£518.63 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Share

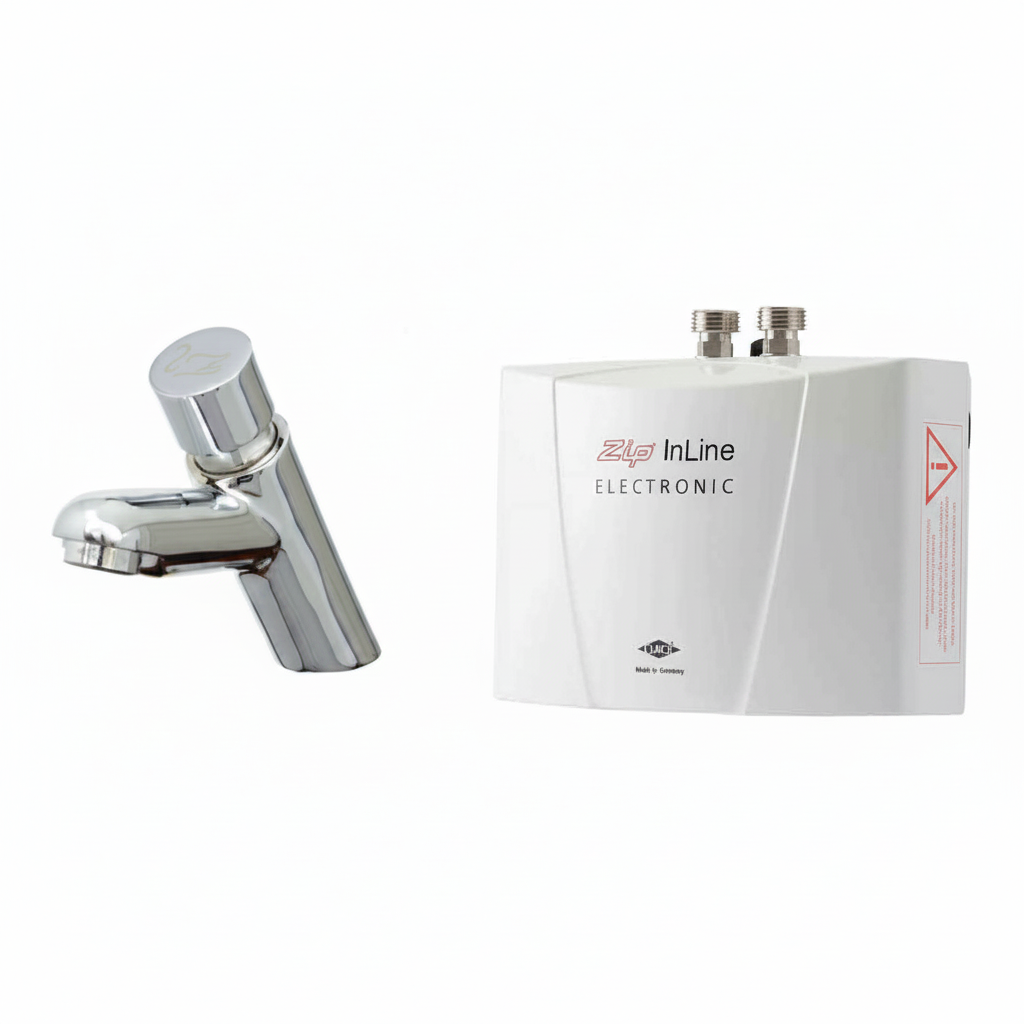

Zip ES3NC 2.8Kw Inline Instantaneous Hand Wash Unit
Part No: ES3NC
Download spec sheet
Zip ES3NC compact electronic instantaneous water heater with highly energy efficient bare wire system for economic water supply to a single outlet.
The heating power electronically compensates for variable inlet pressures and temperatures
Outlet temperature factory set to 38°C, but can be installer adjusted between 30°C to 43°C.
The innovatively designed appliance heats the water automatically as it flows through, without wasting energy in standby operation.
Intended for use with taps having M22 /M24 nozzles
Power rating: 2.8 kW@230V
Maximum flow rate*: 1.5 Litres/min
* Factory set 38 °C flow rate, at incoming water temperature of 12 °C, 3 bar dynamic pressure and 230V electrical power supply.
Approvals: WRAS & CE endorsed
Warranty: 12 month
Designed specifically for hand washing. Allows water to be heated when you need it.
Dimension: Width (mm) 187 Height: 132 Depth 80
To be installed in a frost free area.
InLine ES® features
• The Zip InLine ES® heater is designed to provide hot water for handwashing in areas where space is limited.
• Heating power controlled electronically for temperature stabilisation.
• Outlet temperature can be preset inside the unit between 30°C and 43°C (factory set at 38°C).
• Flow adjustment control, preset for a temperature increase of 25°C.
• Stainless steel bare-wire heating system for very quick response.
• Double pole thermal cut-out protection.
• Supplied with 700mm of pre-wired cable.
• Easy to install with wall bracket.

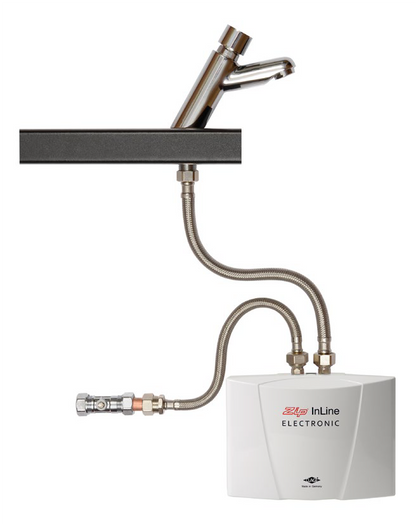

• Includes 500mm braided hoses for connecting the Zip InLine ES® heater to the cold water supply and tap.
• Optional matching cold tap available (ZL018).
