Zip ES4NC 4.4 Kw Electronic Instantaneous hand wash non concussive tap

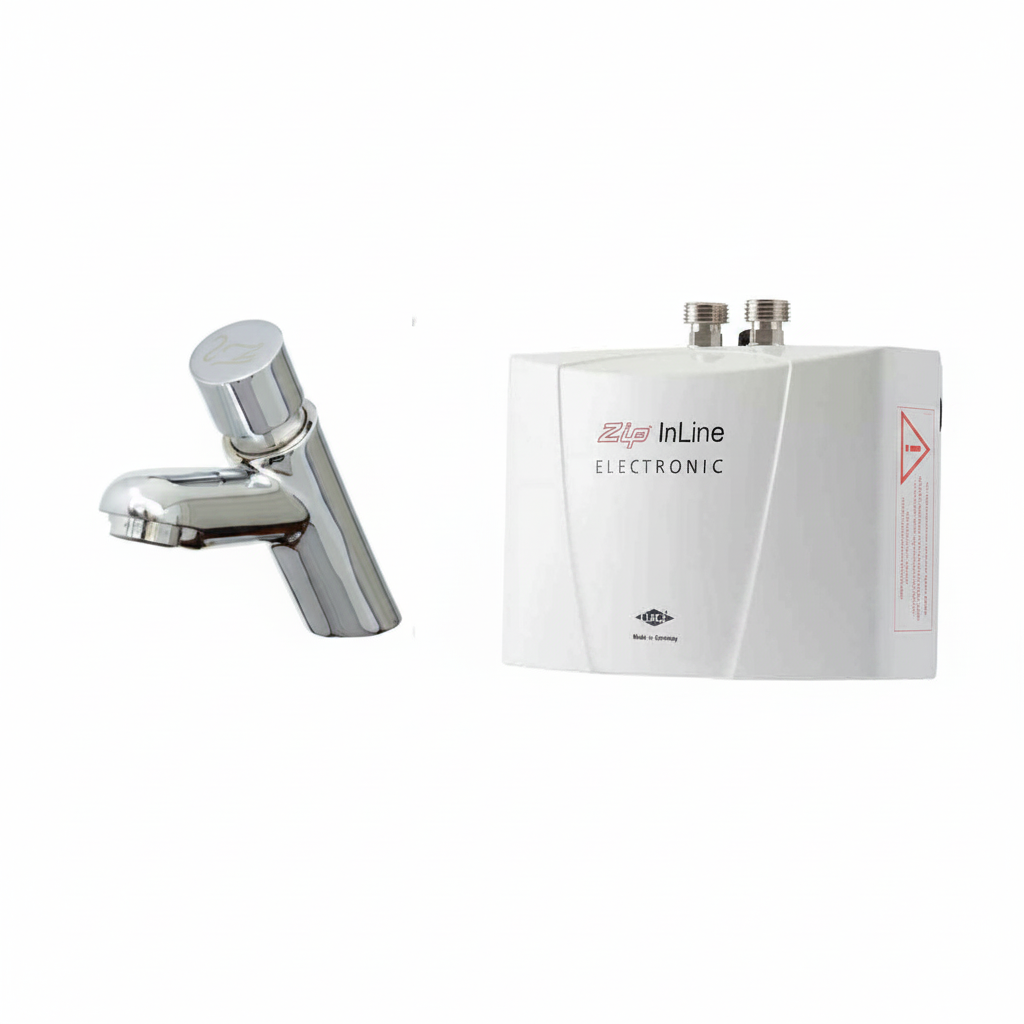

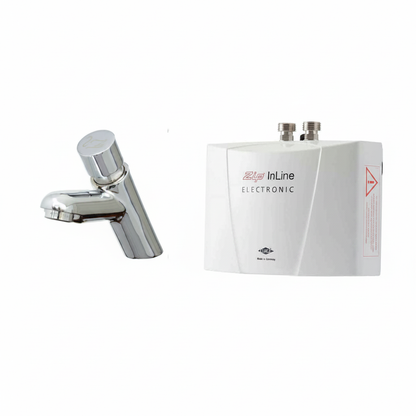

Zip InLine ES4NC – 4.4kW Electronic Instantaneous Hand Wash Unit with Non-Concussive Tap

Part No: ES4NC | Download Spec Sheet (PDF)

The Zip InLine ES4NC is a compact electronic instantaneous water heater featuring a highly energy-efficient bare-wire heating system, supplied complete with a non-concussive tap. Designed to provide economic hot water supply to a single outlet for hand washing. Intended for use with taps having M22/M24 nozzles.

Heating power electronically compensates for variable inlet pressures and temperatures. The unit heats water automatically as it flows through, with no energy wasted in standby operation. Outlet temperature is factory set to 38°C but can be installer-adjusted between 30°C and 43°C.

Technical Specifications

• Power Rating: 4.4 kW @ 230V
• Maximum Flow Rate: 2.4 litres/min (at 38°C, 12°C inlet, 3 bar dynamic pressure, 230V)
• Outlet Temperature Range: 30°C – 43°C (factory set 38°C)
• Dimensions: Width 187mm × Height 132mm × Depth 80mm
• Weight: 1.3 kg
• Tap Type: Non-concussive
• Approvals: WRAS & CE endorsed
• Warranty: 12 months

Key Features

• Supplied with non-concussive tap for controlled, timed water flow
• Designed for hand washing in space-limited areas
• Electronically controlled heating power for temperature stabilisation
• Stainless steel bare-wire heating system for very quick response
• Double pole thermal cut-out protection
• Flow adjustment control preset for a 25°C temperature increase
• Supplied with 700mm pre-wired cable and wall bracket for easy installation
• Includes 500mm braided hoses for cold water supply and tap connection
• Must be installed in a frost-free area
