Zip ES6 5.5 Kw Electronic Instantaneous hand wash unit

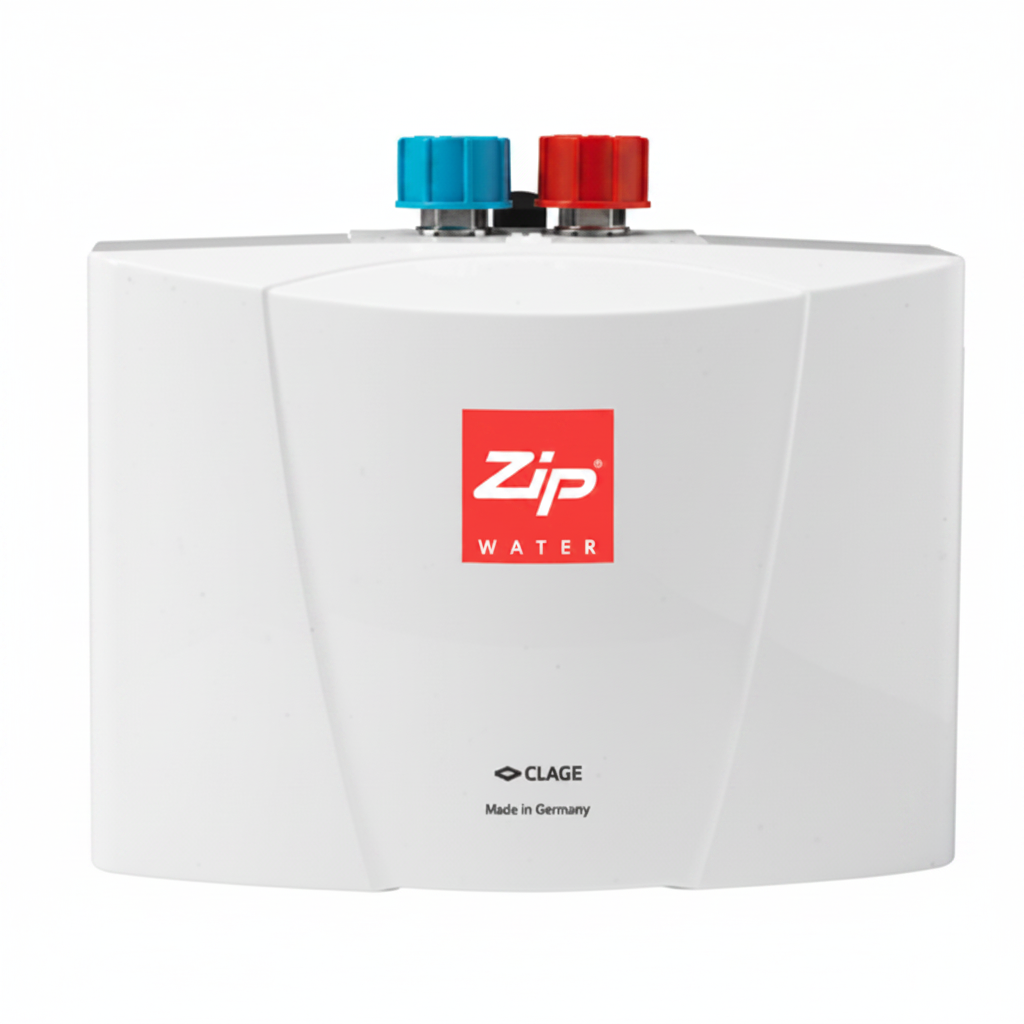

Zip InLine ES6 – 5.5kW Electronic Instantaneous Hand Wash Unit

Part No: ES6 |

Download Spec Sheet (PDF)

The Zip InLine ES6 is a compact electronic instantaneous water heater with a bare-wire heating system, providing economic hot water supply to a single outlet. Intended for use with taps having M22/M24 nozzles. Outlet temperature factory set to 38°C, installer-adjustable between 30°C and 43°C.

Technical Specifications

• Power Rating: 5.5 kW @ 230V
• Maximum Flow Rate: 3.0 litres/min (at 38°C, 12°C inlet, 3 bar dynamic pressure)
• Outlet Temperature Range: 30°C – 43°C (factory set 38°C)
• Dimensions: W 187mm × H 132mm × D 80mm
• Weight: 1.3 kg
• Approvals: WRAS & CE endorsed
• Warranty: 12 months

Key Features

• Electronically controlled heating for temperature stabilisation
• Stainless steel bare-wire heating system for very quick response
• Double pole thermal cut-out protection
• Supplied with 700mm pre-wired cable, wall bracket, and 500mm braided hoses
• Optional matching cold tap available (ZL018)
• Must be installed in a frost-free area
