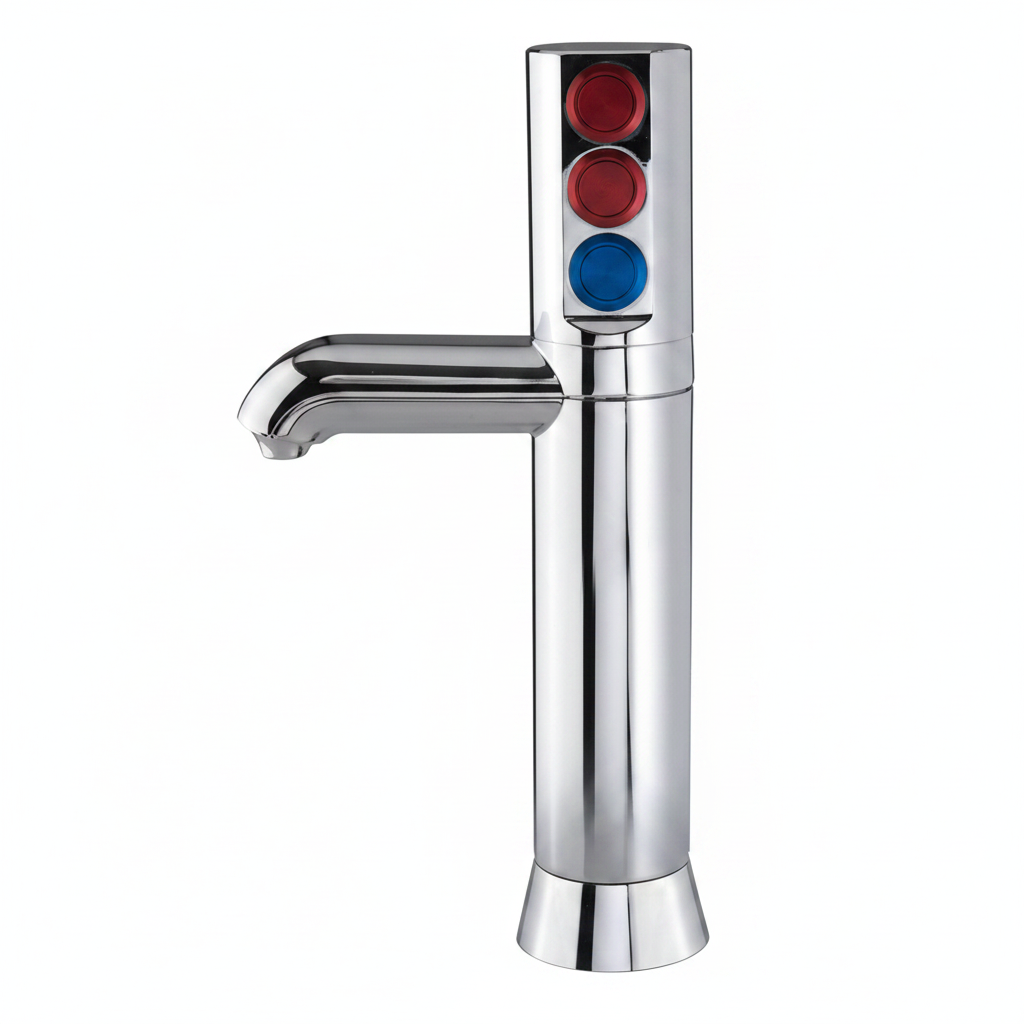

Zip HydroTap G5 H5J704Z00UK Industrial Side Touch boiling chilled 160/175 bright chrome for work

Product no: H5J704Z00UK

Download specification sheet

FILTERED: BOILING CHILLED

Zip's industrial HydroTaps are designed specifically for ease of use and robustness, the
HydroTap Industrial is made to last, even in the most demanding environments. Utilising market-leading filtration technology.

Capacity, weights & dimensions

Water functions Boiling, Chilled
Boiling capacity 160 Cups per hour
Chilled capacity 175 Glasses per hour
Unit dimension (W x D x H) 500mm x 490-520mm x 373mm
Product weight - empty / full 28kg / 33kg

Plumbing

Wholesome water inlet supply required Cold Feed
Supply pressure range 1.7bar - 5bar
Supply connection (hot & cold) 1 x isolated 1/2"BSP BSP fitting (flexible supply hoses included)
Installation Must comply with current water supply regulations
The minimum water pressure will vary if a limescale filter is installed. Please contact us to discuss your requirements.
Suitable drainage to trapped waste within 1 metre required for both on font and sink installations.

Electrical

Command centre power rating 2.13 kW @ 230V AC
Voltage supply 13 amps
Power supply requirements 1 x 13amp socket outlet
Cable length 1.8m fitted with UK standard 3-pin plug
Installation Must comply with current IEE regulations

Tap design

Style HydroTap Industrial
Finish Bright Chrome
Installation hole cut size 35mm
Rotation Fixed

Command centre

Factory temperature boiling 98°C
Factory temperature chilled 6-10°C
Filtration 0.2 Micron Filter Cartridge
Flow rate (Boiling) 4 l/min
Flow rate (Chilled) 4 l/min
Wholesome water supply requirements Cold Feed
Refrigerant R290
Tank material Stainless Steel
