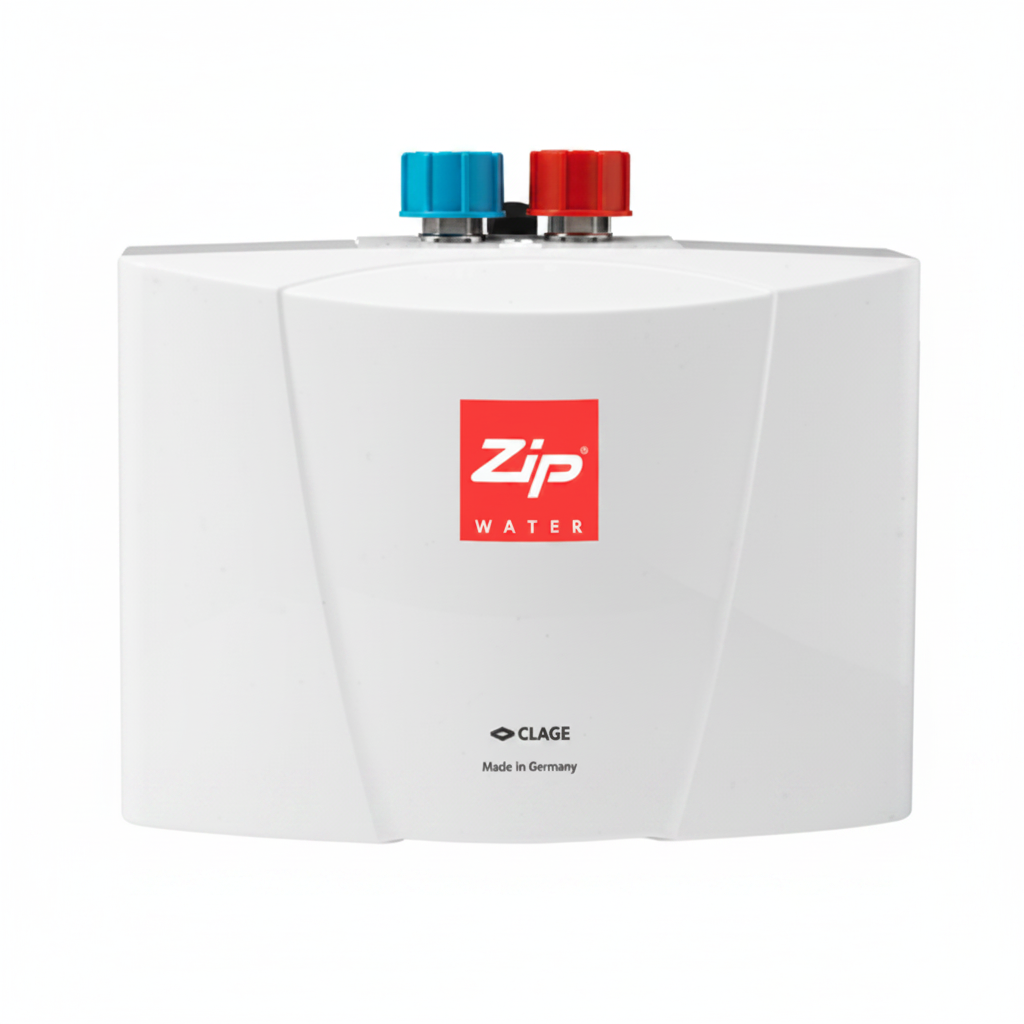

Zip ES3 2.8Kw Inline Instantaneous Hand Wash Unit

Part No: ES3

Zip InLine ES3 electronic instantaneous water heater single outlet for hand washing. Compact design, featuring bare-wire for fast heat up, no standing heat losses. Easy to install and service.

Product code | Power rating | Maximum flow rate*

ES3 | 2.8 kW@230V | 1.5 Litres/min

* Factory set 38 °C flow rate, at incoming water temperature of 12 °C, 3 bar dynamic pressure and 230V electrical power supply.

Approvals: WRAS & CE endorsed

Warranty: 12 month

Designed specifically for hand washing. Allows water to be heated when you need it.

Dimension: Width (mm) 187 Height: 132 Depth 80

To be installed in a frost free area.

InLine ES® features

• The Zip InLine ES® heater is designed to provide hot water for handwashing in areas where space is limited.
• Heating power controlled electronically for temperature stabilisation.
• Outlet temperature can be preset inside the unit between 30°C and 43°C (factory set at 38°C).
• Flow adjustment control, preset for a temperature increase of 25°C.
• Stainless steel bare-wire heating system for very quick response.
• Double pole thermal cut-out protection.
• Supplied with 700mm of pre-wired cable.
• Easy to install with wall bracket.
• Includes 500mm braided hoses for connecting the Zip InLine ES® heater to the cold water supply and tap.
• Optional matching cold tap available (ZL018).
