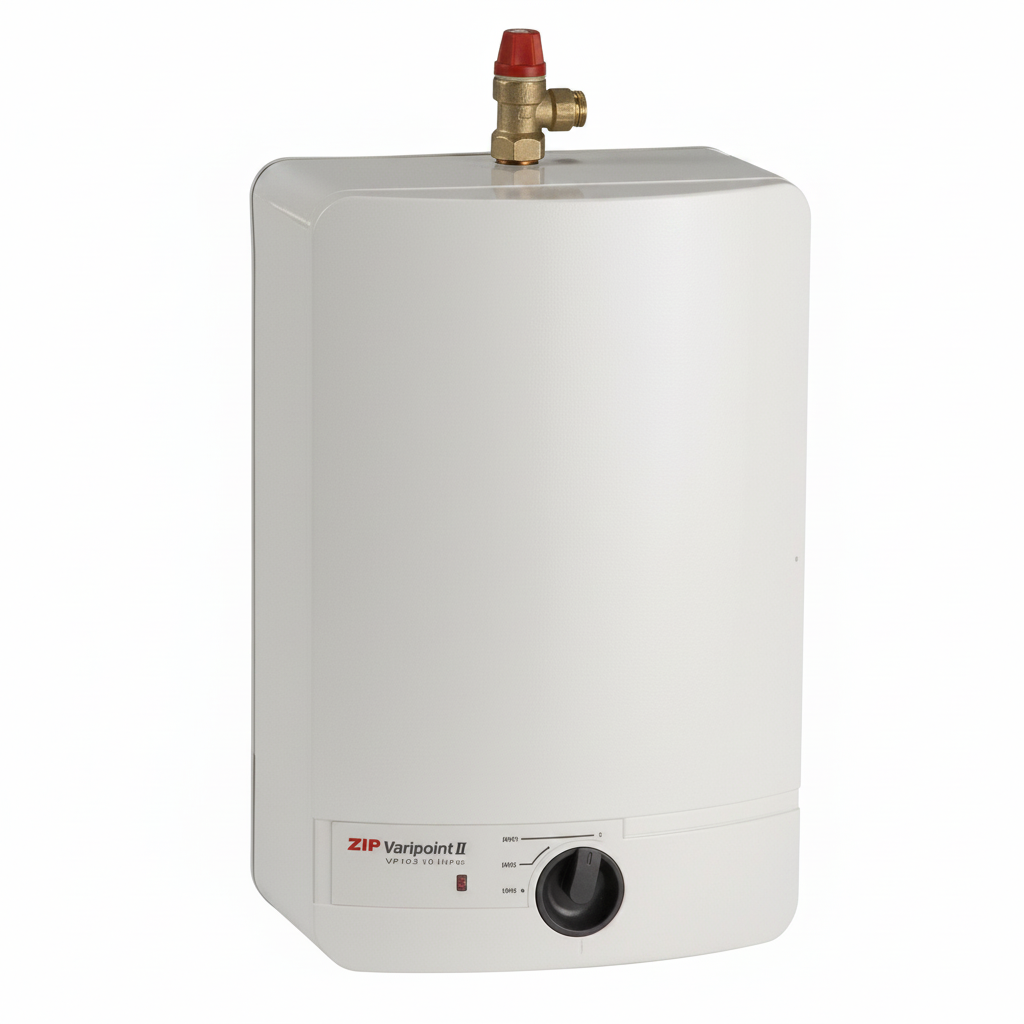

Zip Varipoint 2 VP103OB – 10 Litre Oversink Unvented Water Heater

Part No: VP103OB | Download Spec Sheet (PDF)

The Zip Varipoint 2 VP103OB is a 10-litre oversink unvented water heater suitable for single or multiple outlet applications. It features a heavy gauge copper inner container tested to 16 bar, supplied complete with a temperature and pressure relief valve. WRAS approved and CE endorsed for reliable performance in commercial and domestic installations.

Technical Specifications

• Part No: VP103OB
• Capacity: 10 litres
• Power Rating: 2 kW
• Water Connection: 15mm BSP
• Minimum Water Pressure: 1 bar
• IP Rating: 24
• ERP Rating: Class A
• Dimensions: H 452mm × W 300mm × D 285mm
• Weight: 6.5 kg (empty) / 16.5 kg (full)
• Approvals: WRAS approved & CE endorsed
• Warranty: 12 months

Heat-up Times

• AP3/05: Heat-up 11 mins | Re-heat (70% vol) 7 mins
• AP/310: Heat-up 18 mins | Re-heat (70% vol) 12 mins
• AP/315: Heat-up 32 mins | Re-heat (70% vol) 18 mins

Construction

• Inner Container: Heavy gauge copper, tested to 16 bar
• Case: High impact, corrosion-resistant white plastic
• Insulation: High-density CFC-free polyurethane foam

Safety Features

• Manually resettable thermal cut-out set to 85°C (±3°C)
• Expansion relief valve (supplied) set at 6 bar
• Frost protection whilst power is on
• Sacrificial anode for corrosion protection — check every 6 months and replace as required

Installation Notes

• No special taps required
• Wire to a double pole fused spur with minimum 13A break rating
• Pressure and temperature relief valve (where fitted) must be plumbed to waste in accordance with water bylaws
• Minimum pipe length from heater to nearest draw-off tap: 2.7m (15mm pipework) or 1.2m (22mm pipework)
• If minimum pipe length is not achievable, fit Pack AQ2
