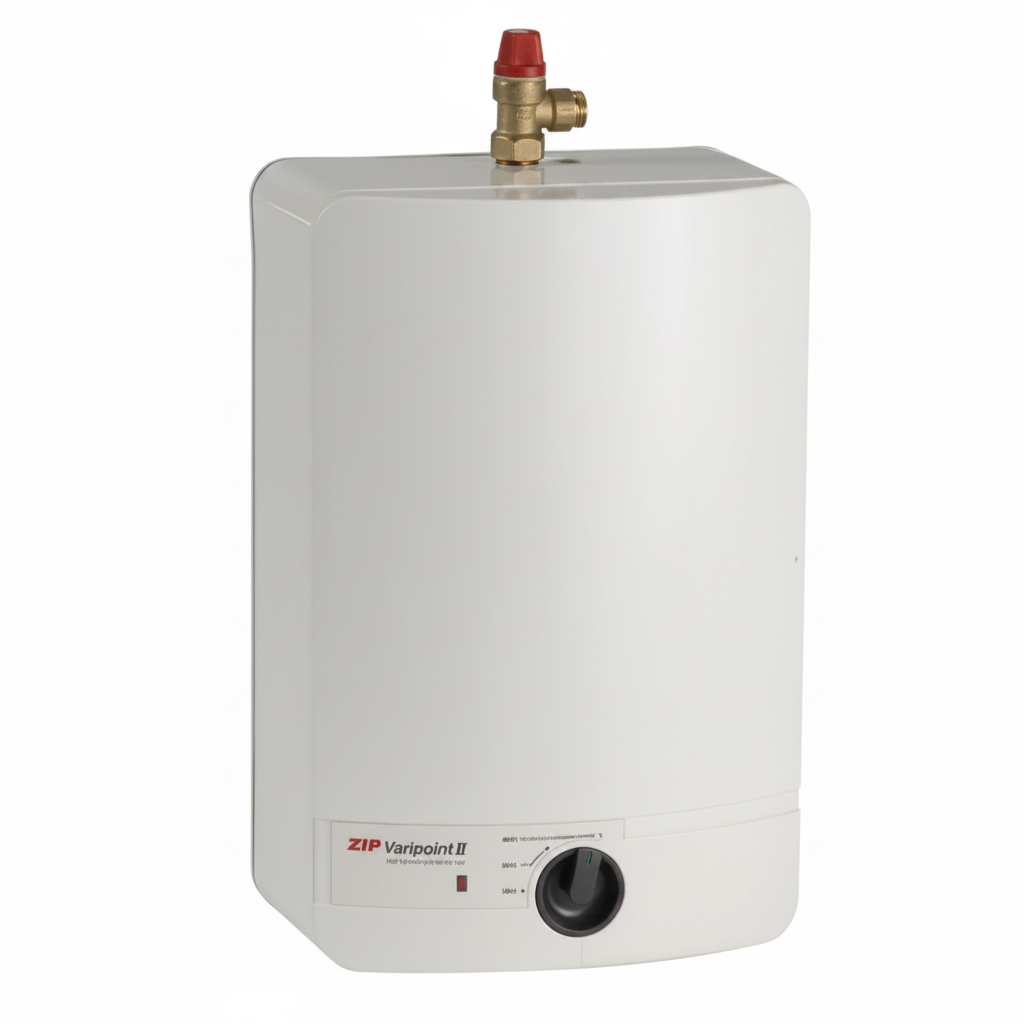

Zip Varipoint 2 VP153 15 Ltr Oversink Unvented Water Heater
Zip Varipoint 2 VP153 15 Ltr Oversink Unvented Water Heater
Share
Part No: VP153OB
Single or multiple outlet water heater.
Capacity: 15 Ltrs
Rating: 2.2 Kw @ 230V
Water Tank: Hot water storage tank of 1.8mm thick glass enamelled steel tested to 12 bar
Case: High impact and corrosion resistant white plastic
Insulation: High Density CFC-free polyurethane foam insulation
Safety features: Resettable over temperature safety cut out.
a. Manually resettable thermal cutout set to 85 oC +/ -3 oC
b. expansion relief valve (supplied) set at 6 bar.
c. protected against frost whilst power is on.
d. sacrificial anode for added protection against corrosion for element and tank – must be checked regularly (6 months) and replaced where necessary as gradual erosion will occur.
In extreme cases local water conditions can cause rapid erosion of the anode resulting in particles being deposited as a residue.
Taps: No special taps required.
Approvals: WRAS approved and CE endorsed.
Dimensions: H 452 x W 300 x D 285
Weight (kg) Empty: 7.5Full: 22.5
Plumbing: Water connection 15mm BSP
Minimum recommended water pressure 1 bar
Pressure and temperature relief valve, where fitted requires plumbing to waste in accordance with water byelaws.
Electrical: To be wired to a double pole fused spur, minimum break rating of 13 amp.
Minimum length of pipe (from water heater to nearest draw off tap)
If you do not have this minimum length of pipe work then you will need to fit Pack AQ2.
Warranty: 12 months.
Model heat up time to 15 oC Re-heat time to (70% vol)
AP/315 32 mins 18 mins
