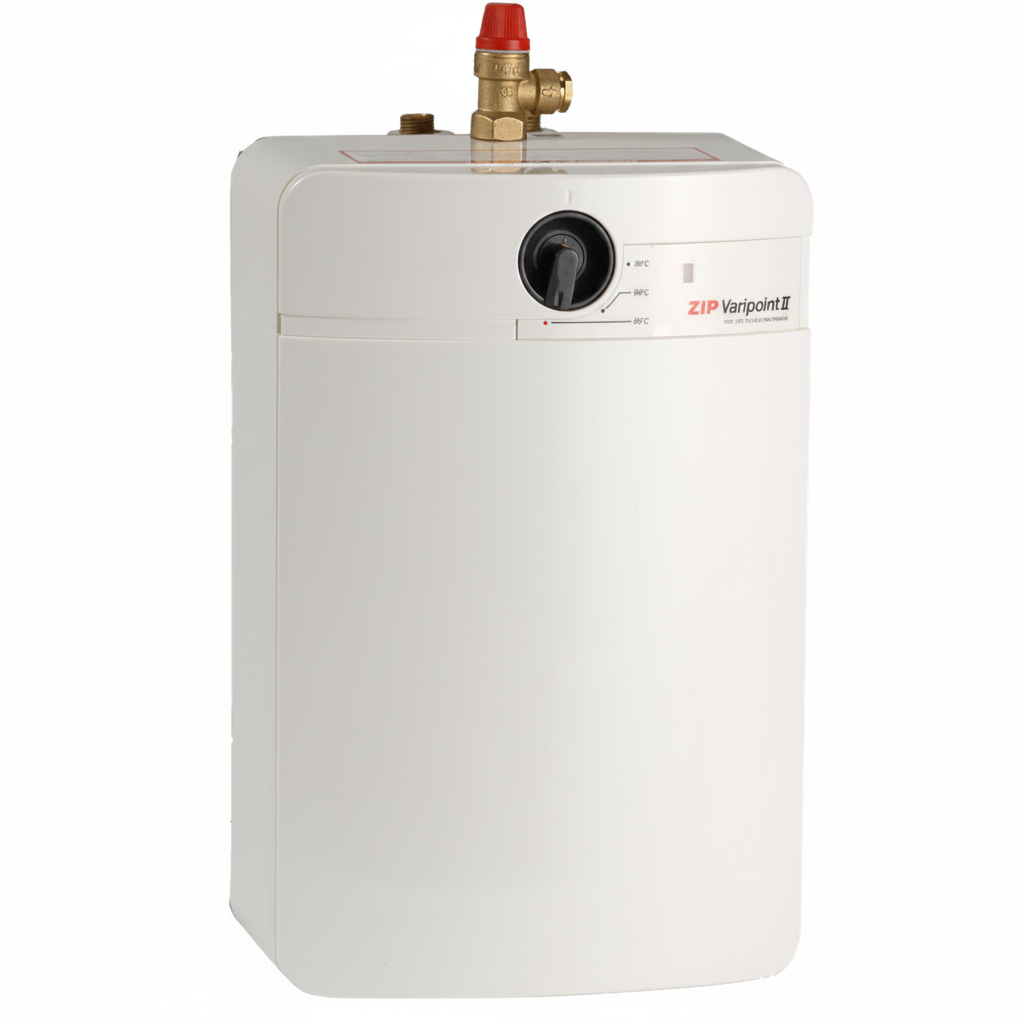

Zip Varipoint 2 VP53UB 15 Ltr Undersink Unvented Water Heater

Zip Varipoint 2 VP153UB – 15 Litre Undersink Unvented Water Heater

Part No: VP153UB | Download Spec Sheet (PDF)

The Zip Varipoint 2 VP153UB is a 15-litre undersink unvented water heater suitable for single or multiple outlet applications. Featuring a glass-enamelled steel tank, high-density foam insulation, and comprehensive safety features, it is WRAS approved and CE endorsed for reliable hot water delivery in commercial and domestic settings.

Technical Specifications

• Part No: VP153UB

• Capacity: 15 litres

• Power Rating: 2.2 kW @ 230V

• Water Connection: 15mm BSP

• Minimum Water Pressure: 1 bar

• Dimensions: H 452mm × W 300mm × D 285mm

• Weight: 7.5 kg (empty) / 22.5 kg (full)

• Approvals: WRAS approved & CE endorsed

• Warranty: 12 months

Construction

• Water Tank: 1.8mm thick glass-enamelled steel, tested to 12 bar

• Case: High impact, corrosion-resistant white plastic

• Insulation: High-density CFC-free polyurethane foam

Safety Features

• Manually resettable thermal cut-out set to 85°C (±3°C)

• Expansion relief valve (supplied) set at 6 bar

• Frost protection whilst power is on

• Sacrificial anode for corrosion protection — check every 6 months and replace as required

Installation Notes

• No special taps required

• Wire to a double pole fused spur with minimum 13A break rating

• Pressure and temperature relief valve (where fitted) must be plumbed to waste in accordance with water bylaws

• If minimum pipe length from heater to nearest draw-off tap is not achievable, fit Pack AQ2
